PHR-6 Equivalent & Substitute Parts Reference

Part Overview

The PHR-6 is a 6-position rectangular connector receptacle housing manufactured by JST Sales America Inc. as part of the PH series. This component serves as the female socket housing for 0.079" (2.00mm) pitch connector applications requiring crimp termination. The part is actively produced and widely stocked, with 808 units available in inventory. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across alternative manufacturers, enabling design flexibility and supply chain optimization for applications where the original PHR-6 may face availability constraints or where alternative fastening mechanisms are acceptable.

Substiute Parts

PHR-6

JST Sales America Inc.In Stock: 848PHR-6 Datasheet

Current PartRFQ

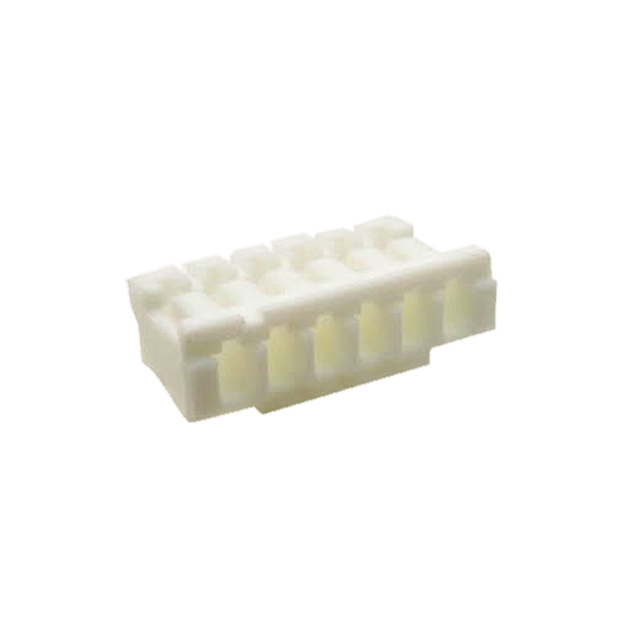

2CH-C-06

Adam TechIn Stock: 90782CH-C-06 Datasheet

SimilarRFQ

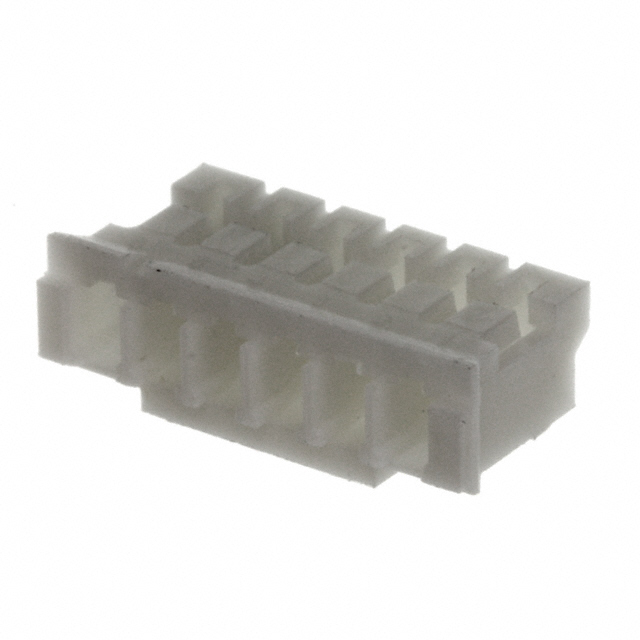

440129-6

TE Connectivity AMP ConnectorsIn Stock: 38112440129-6 Datasheet

SimilarRFQ

CI0106S0000

Cvilux USAIn Stock: 1559CI0106S0000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PHR-6 is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: All substitutes must be receptacle housings with female socket contacts
• Position Count & Pitch: Exactly 6 positions at 0.079" (2.00mm) pitch
• Mounting & Termination: Free hanging in-line mounting with crimp termination
• Electrical & Environmental Compliance: RoHS3 compliance and MSL 1 rating maintained across all alternatives

The identified substitute parts (2CH-C-06, 440129-6, CI0106S0000) meet these core electrical and mechanical requirements. Variations in fastening type (detent lock vs. friction lock vs. unspecified), color (natural vs. white), and operating temperature ceiling (85°C vs. 105°C) represent acceptable design trade-offs that do not compromise functional interchangeability within the specified parameter envelope.

Parameter Comparison

Engineering Selection Recommendations

All identified substitute parts maintain active product status and full RoHS3 compliance, ensuring regulatory alignment with the PHR-6. Selection among these alternatives should be based on the following criteria:

440129-6 (TE Connectivity) offers the highest inventory availability (38,069 units) and extended operating temperature range (-25°C ~ 105°C), providing thermal margin for applications operating near the PHR-6 ceiling of 85°C. This part is suitable for designs where supply chain resilience and thermal headroom are priorities.

CI0106S0000 (Cvilux USA) maintains identical insulation material specification (Polyamide PA66, Nylon 6/6) and operating temperature extension to 105°C, with moderate inventory levels (1,509 units). This option preserves material consistency with the PHR-6 while offering thermal flexibility.

2CH-C-06 (Adam Tech) matches the PHR-6 operating temperature range exactly (-25°C ~ 85°C) and insulation material specification, with substantial inventory (8,992 units). The friction lock fastening mechanism differs from the PHR-6 detent lock; this variation requires mechanical compatibility verification in the application assembly.

Frequently Asked Questions (FAQ)

Q: Can the 2CH-C-06 be used as a direct replacement for the PHR-6?

A: The 2CH-C-06 meets all core electrical and mechanical parameters: 6-position, 0.079" pitch, female socket receptacle with crimp termination. The fastening mechanism differs (friction lock vs. detent lock); verify that the application assembly accommodates this variation before substitution.

Q: What is the difference between the PHR-6 and 440129-6 in terms of operating temperature?

A: The PHR-6 operates from -25°C to 85°C, while the 440129-6 extends to 105°C. Both are suitable for the PHR-6 operating envelope. The 440129-6 provides additional thermal margin for applications approaching 85°C.

Q: Are all substitute parts RoHS compliant?

A: Yes. The PHR-6, 2CH-C-06, and CI0106S0000 are ROHS3 compliant. The 440129-6 is RoHS compliant. All parts meet regulatory requirements for restricted substance elimination.

Q: Does insulation material affect substitution compatibility?

A: The PHR-6, 2CH-C-06, and CI0106S0000 use Polyamide (PA66), Nylon 6/6. The 440129-6 uses Thermoplastic insulation. Both material specifications are acceptable for the 0.079" pitch, 6-position receptacle housing application. Material selection should align with application environmental exposure and mechanical stress requirements.

Q: What inventory considerations should guide part selection?

A: The 440129-6 offers the highest availability (38,069 units), followed by 2CH-C-06 (8,992 units) and CI0106S0000 (1,509 units). For applications requiring immediate procurement or high-volume production, the 440129-6 provides supply chain advantage.

Q: Are contacts included with these connector housings?

A: No. All listed parts (PHR-6, 2CH-C-06, 440129-6, CI0106S0000) are housings only. Contacts must be procured separately and are not included in the package.
