PHEC68P-R111LF Equivalent & Substitute Parts

Part Overview

The PHEC68P-R111LF is a 68-position D-Sub plug connector manufactured by Amphenol ICC (FCI) with right-angle through-hole solder termination. This connector features center strip contacts and board lock functionality with gold-plated contacts. The product is currently obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations where legacy compatibility is required.

Substiute Parts

PHEC68P-R111LF

Amphenol ICC (FCI)In Stock: 1167PHEC68P-R111LF Datasheet

Current PartRFQ

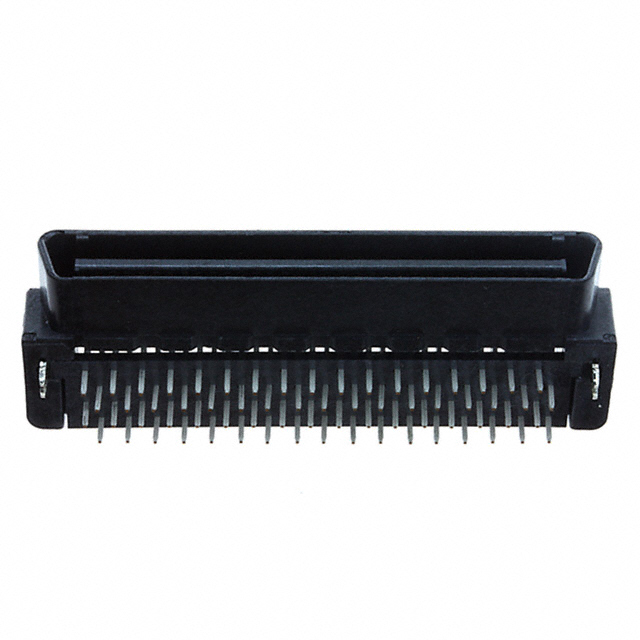

1734099-7

TE Connectivity AMP ConnectorsIn Stock: 41911734099-7 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PHEC68P-R111LF are identified based on strict electrical and mechanical parameter alignment. The following criteria determine substitution eligibility:

• Number of Positions: 68
• Number of Rows: 2
• Connector Type: Plug
• Mounting Type: Through Hole, Right Angle
• Termination Method: Solder
• Connector Style: Center Strip Contacts
• Contact Finish: Gold
• Features: Board Lock

The substitute part 1734099-7 (TE Connectivity AMP Connectors) meets all core substitution parameters. This part is classified as Board to Board type, which represents a functional extension of the standard plug configuration while maintaining full compatibility with the electrical and mechanical interface requirements of the PHEC68P-R111LF.

Parameter Comparison

Engineering Selection Recommendations

The 1734099-7 substitute part is suitable for applications requiring a 68-position D-Sub plug connector with right-angle through-hole solder termination. The substitute maintains full electrical and mechanical compatibility with the PHEC68P-R111LF across all critical interface parameters.

The substitute part carries Active product status, ensuring ongoing availability and supply chain continuity. The part is ROHS3 compliant, meeting current environmental and regulatory requirements. Both the main part and substitute share identical MSL ratings (1 - Unlimited), ECCN classification (EAR99), and HTSUS codes (8536.69.4040), indicating equivalent regulatory and compliance standing.

Selection between these parts should be based on supply availability, lead time requirements, and specific application constraints. The substitute part's Board to Board designation indicates enhanced mechanical robustness suitable for applications requiring increased structural integrity.

Frequently Asked Questions (FAQ)

Q: What makes 1734099-7 a valid substitute for PHEC68P-R111LF?

A: The substitute part matches all critical electrical and mechanical parameters: 68 positions, 2 rows, plug connector type, through-hole right-angle mounting, solder termination, center strip contacts, gold contact finish, and board lock features. Both parts share identical MSL, ECCN, and HTSUS classifications.

Q: What is the difference between the main part and the substitute?

A: The primary differences are manufacturer (Amphenol ICC vs. TE Connectivity), product status (Obsolete vs. Active), series designation (PHEC vs. CHAMP .050 I), and RoHS compliance documentation (not specified vs. ROHS3 Compliant). The substitute's Board to Board type provides additional mechanical features while maintaining full interface compatibility.

Q: Can I use 1734099-7 as a direct replacement in existing designs?

A: Yes. The substitute part maintains full compatibility across all electrical and mechanical interface parameters. The connector footprint, pin configuration, and solder termination are equivalent.

Q: What packaging is available for the substitute part?

A: The 1734099-7 is supplied in Tray packaging. The main part packaging specification was not provided.

Q: Are there any compliance or regulatory differences?

A: Both parts share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications. The substitute part is documented as ROHS3 compliant. Both parts have MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions.

Q: What inventory levels are available?

A: The main part PHEC68P-R111LF has 1,148 pieces in stock. The substitute part 1734099-7 has 4,145 pieces in stock.
