PH10-14R-E Equivalent & Substitute Parts

Part Overview

The PH10-14R-E is an insulated ring terminal connector manufactured by Panduit Corp, designed for 10-12 AWG wire gauges with a 1/4 inch stud connection. This circular terminal features a crimp termination method and is constructed with copper contact material finished in tin, housed within a yellow polyolefin insulation jacket with heat shrink protection. The component is classified as Active product status and maintains full RoHS3 compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, supply chain considerations, or application-specific availability needs.

Substiute Parts

PH10-14R-E

Panduit CorpIn Stock: 853PH10-14R-E Datasheet

Current PartRFQ

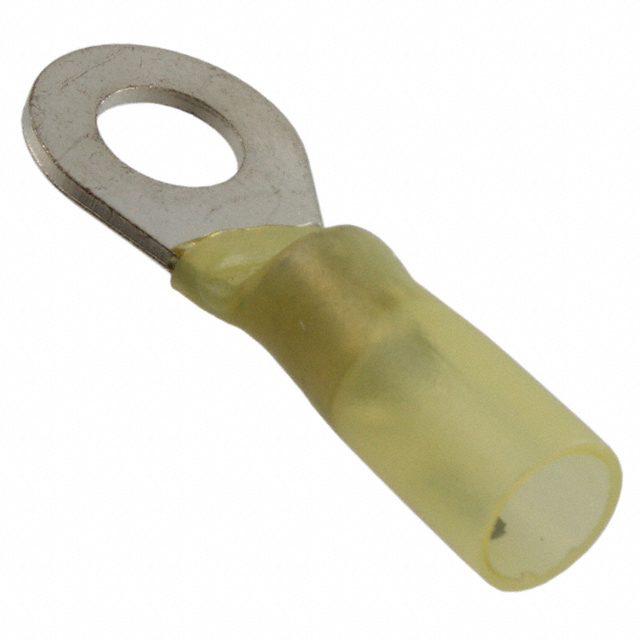

8-55858-3

TE Connectivity AMP ConnectorsIn Stock: 13318-55858-3 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PH10-14R-E is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Wire Gauge: 10-12 AWG
• Stud/Tab Size: 1/4 Stud
• Terminal Type: Circular
• Termination Method: Crimp
• Insulation Type: Insulated with Heat Shrink
• Contact Material: Copper
• Contact Finish: Tin
• Insulation Diameter: 0.240" (6.10mm)
• Insulation Material: Polyolefin
• Mounting Type: Free Hanging (In-Line)

The substitute part TE Connectivity AMP Connectors model 8-55858-3 satisfies all mandatory matching parameters, establishing functional and mechanical equivalence for direct substitution in applications requiring 10-12 AWG ring terminal connectors with 1/4 inch stud mounting.

Parameter Comparison

Engineering Selection Recommendations

Both the PH10-14R-E and 8-55858-3 maintain Active product status and satisfy regulatory compliance requirements. The PH10-14R-E carries RoHS3 Compliant certification, while the 8-55858-3 carries RoHS Compliant status, with both classified under identical ECCN and HTSUS codes. Selection between these components should be based on availability, supply chain requirements, and application-specific constraints. The dimensional variance in overall length (1.200" versus 1.598") must be evaluated within the context of the specific installation environment to ensure adequate clearance and mechanical fit. Both components utilize identical wire gauge compatibility, stud sizing, and electrical contact specifications, establishing functional interchangeability for standard 10-12 AWG ring terminal applications.

Frequently Asked Questions (FAQ)

Q: Can the 8-55858-3 be used as a direct replacement for the PH10-14R-E?

A: The 8-55858-3 satisfies all critical electrical and mechanical parameters required for substitution, including wire gauge, stud size, terminal geometry, and contact specifications. The dimensional difference in overall length must be evaluated for the specific installation to confirm adequate fit within the assembly.

Q: What is the significance of the length difference between these two parts?

A: The PH10-14R-E measures 1.200" (30.48mm) in overall length, while the 8-55858-3 measures 1.598" (40.59mm). This variance affects spatial requirements within the assembly. Confirmation of clearance and mechanical compatibility within the target application is necessary before substitution.

Q: Are both parts compliant with environmental regulations?

A: Both components satisfy RoHS compliance requirements. The PH10-14R-E carries RoHS3 Compliant status, and the 8-55858-3 carries RoHS Compliant status. Both are classified as EAR99 for export control purposes and share identical HTSUS commodity codes.

Q: What wire gauges are supported by these ring terminals?

A: Both the PH10-14R-E and 8-55858-3 are rated for 10-12 AWG wire gauges. The crimp termination method and insulation diameter of 0.240" (6.10mm) are optimized for this wire gauge range.

Q: Is the contact material composition identical between these parts?

A: Both components utilize copper contact material with tin finish. The 8-55858-3 specifies ETP (Electrolytic Tough Pitch) copper, which is a standard grade of copper used in electrical applications. This represents a material specification detail rather than a functional difference.

Q: What is the significance of the yellow color coding?

A: The yellow insulation color on both components indicates the 10-12 AWG wire gauge classification per industry color-coding standards for insulated ring terminals. This provides visual identification during assembly and installation.

Q: Are there any moisture sensitivity considerations for these components?

A: The PH10-14R-E lists Moisture Sensitivity Level as Not Applicable. The 8-55858-3 carries MSL 1 (Unlimited), indicating no moisture-related storage or handling restrictions for either component.
