Equivalent & Substitute Parts Reference for PFE700S-48

Part Overview

The TDK-Lambda Americas Inc PFE700S-48 is an enclosed AC/DC converter designed for ITE (Commercial) applications, providing a single 51V output at up to 14A with a maximum output power of 700W. This model features universal AC input (85 ~ 265 VAC) and operates across a wide temperature range with high efficiency. The PFE700S-48 is categorized as obsolete, creating a requirement to identify alternatives that match its critical electrical, mechanical, and regulatory parameters.

Substiute Parts

PFE700S-48

TDK-Lambda Americas IncIn Stock: 1189PFE700S-48 Datasheet

Current PartRFQ

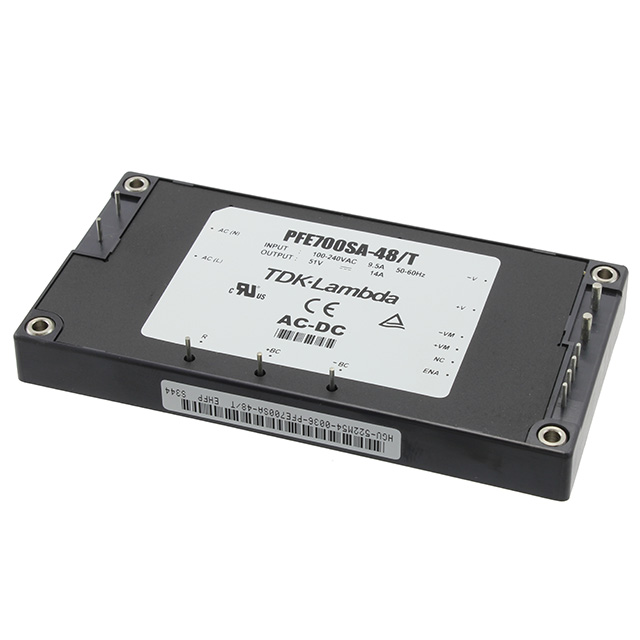

PFE700SA-48

TDK-Lambda Americas IncIn Stock: 814PFE700SA-48 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part selection is determined using only matched or exceeded values for critical parameters. These include output voltage, output current, input voltage range, power rating, package dimensions, mounting type, number of outputs, application standards, and approval/compliance status. Parts are grouped for substitution only if all provided electrical, mechanical, and regulatory parameters align or exceed those of the main part.

Key substitution parameters:

• Voltage - Input and Output
• Current - Output (Max)
• Power (Watts)
• Efficiency
• Number of Outputs
• Mounting Type and Package / Case
• Size / Dimension
• Approval Agency and Standard Number
• Product Category and Application
• Operating Temperature
• Weight (as a factor for mechanical compatibility)
• Compliance status (REACH, ECCN, HTSUS, MSL)

Parameter Comparison

Engineering Selection Recommendations

The PFE700S-48 has an obsolete product status, which necessitates selection of a substitute part with equivalent or superior technical characteristics, regulatory approvals, and compliance. The recommended substitute, PFE700SA-48, matches or exceeds all key electrical, mechanical, and compliance parameters provided, and holds current regulatory certifications, including CE, CSA, and UL. Both parts comply with the same REACH and MSL requirements, ensuring no difference in moisture sensitivity management.

Frequently Asked Questions (FAQ)

Q1: What criteria are used to determine if PFE700SA-48 is a valid substitute for PFE700S-48?
A1: Substitution is validated through exact matches or improvements in operating voltage, output current, output power, voltage input range, efficiency, mechanical dimensions, mounting method, regulatory approvals, and compliance status.

Q2: Are there any differences in the package or mounting between these two models?
A2: Both PFE700S-48 and PFE700SA-48 share the same 11-DIP Module, Full Brick package and through hole mounting type, ensuring mechanical compatibility.

Q3: Does the substitute part cover all the same application requirements?
A3: Both models are specified for ITE (Commercial) applications, and have approval to similar standards.

Q4: Is there any difference in compliance status or regulatory approval between these parts?
A4: The substitute part, PFE700SA-48, includes approvals (CE, CSA, UL) and standards that encompass those of the main part (CE, cULus), with matching REACH and MSL classifications.

Q5: How does the efficiency of the substitute part compare?
A5: The PFE700SA-48 provides higher efficiency compared to the PFE700S-48, based on the provided parameters.
