Equivalent & Substitute Parts Reference: PFE1000F-12

Part Overview

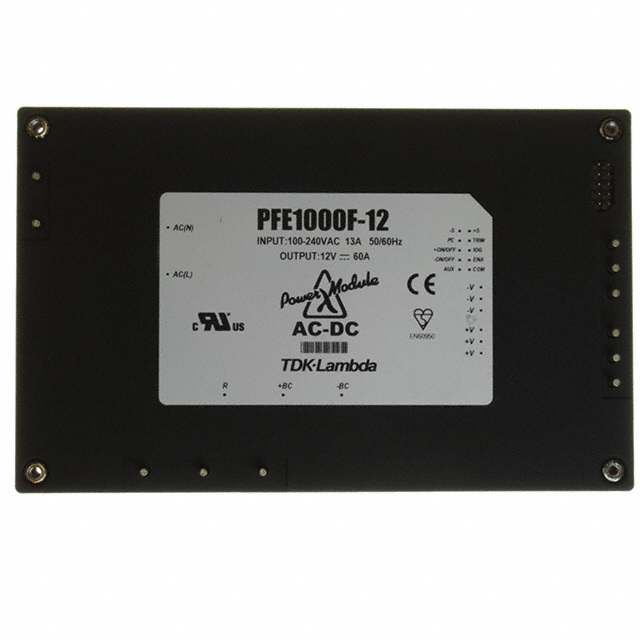

The TDK-Lambda Americas Inc PFE1000F-12 is an enclosed AC/DC converter with a single output rated at 12V, 60A, providing up to 1000W output power. Designed for ITE (Commercial) applications, it offers remote on/off and universal input features. The product is housed in a 21-DIP Module with through hole mounting, and carries regulatory approvals including CE and cULus. As the PFE1000F-12 is classified as obsolete, identifying substitute models is required to maintain availability and compliance for existing designs or replacements.

Substiute Parts

PFE1000F-12

TDK-Lambda Americas IncIn Stock: 776PFE1000F-12 Datasheet

Current PartRFQ

PFE1000FA-12

TDK-Lambda Americas IncIn Stock: 2412PFE1000FA-12 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined strictly by matching the following key electrical and mechanical parameters: input voltage range, output voltage, output current, mounting type, case size/dimensions, features, operating temperature, and compliance standards. Substitute selection also considers product status and regulatory approvals. Only products listed as direct substitutes and providing all specified parameters within the same values are included.

Parameter Comparison

Engineering Selection Recommendations

The main part, PFE1000F-12, is obsolete; selection of the substitute PFE1000FA-12 is determined by its active status. Both parts comply with major safety standards (60950-1) and provide similar regulatory approvals (CE), supporting interchangeability in certified applications. The substitute, PFE1000FA-12, is RoHS compliant and has additional certifications (cURus, TUV, 62368-1) specified in the provided parameters.

Frequently Asked Questions (FAQ)

Q: What parameters must match for direct substitution between AC/DC converter models in this category?
A: Key parameters are input voltage range, output voltage, output current, efficiency, operating temperature, mounting type, package/case size, regulatory approvals, and compliance standards.

Q: Is the enclosure and mounting/mechanical compatibility maintained with the substitute?
A: Both PFE1000F-12 and PFE1000FA-12 use the same 21-DIP Module, through hole mounting, and identical size/dimensions.

Q: Are all listed certifications and standards supported by the substitute part?
A: Both parts have CE marking. The substitute adds cURus and TUV along with compliance to 62368-1, as specified.

Q: Does the substitute maintain the same maximum output current and voltage?
A: Yes. Both provide 12V output at up to 60A.

Q: What considerations exist regarding weight and packaging?
A: The substitute part has a slightly lower weight. Packaging is Tray, as explicitly listed.

Q: Does product status affect suitable selection?
A: Yes. PFE1000FA-12 is active, while PFE1000F-12 is obsolete. Substitute selection supports continued availability in designs.

Q: What is the impact of differences in output power ratings?
A: The substitute provides 720 W compared to 1000 W. Only parameters listed are considered; follow explicit output requirements as provided.
