PE-68627 Equivalent & Substitute Parts

Part Overview

The PE-68627 is a 4-line common mode choke (CMC) surface mount component manufactured by Pulse Electronics. It is designed for signal line filtering applications with a DC resistance of 250mOhm maximum and features a compact vertical 8 flat lead package measuring 9.02mm × 8.76mm × 5.26mm. The PE-68627 is classified as obsolete product status, making identification of active equivalent parts essential for ongoing design support and procurement continuity.

Substiute Parts

PE-68627

Pulse ElectronicsIn Stock: 953PE-68627 Datasheet

Current PartRFQ

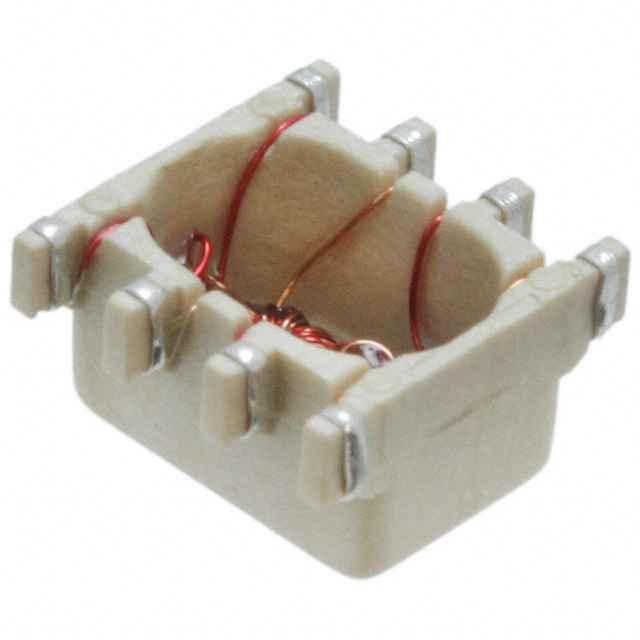

PE-68627NL

Pulse ElectronicsIn Stock: 3336PE-68627NL Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PE-68627 is determined by strict equivalence across the following critical parameters:

• Filter Type: Signal Line (must match)
• Number of Lines: 4 (must match)
• DC Resistance (DCR) Maximum: 250mOhm (must match)
• Mounting Type: Surface Mount (must match)
• Package / Case: Vertical, 8 Flat Lead (must match)
• Physical Dimensions: 9.02mm × 8.76mm × 5.26mm (must match)

The PE-68627NL meets all these criteria and is therefore classified as a parametric equivalent. The primary distinction between the main part and its substitute is product status and compliance certification, not electrical or mechanical performance.

Parameter Comparison

Engineering Selection Recommendations

The PE-68627NL is the direct parametric equivalent to the PE-68627 across all electrical and mechanical specifications. Selection between these parts should be based on the following factors:

For New Designs or Redesigns: PE-68627NL is the appropriate choice. It maintains identical electrical and mechanical performance while offering active product status and RoHS compliance, reducing regulatory and supply chain risk.

For Legacy System Support: PE-68627 may be retained if existing inventory is available and RoHS non-compliance is acceptable within the application context. However, PE-68627NL provides a direct drop-in replacement with no performance trade-offs.

Compliance Considerations: PE-68627NL's RoHS compliance status provides advantage in regulated markets and end-of-life disposal scenarios. Both parts maintain REACH Unaffected status and EAR99 export classification.

Packaging and Inventory: PE-68627NL is available in tube packaging with significantly higher inventory levels (3325 pcs vs. 908 pcs), supporting production continuity and reducing lead time risk.

Frequently Asked Questions (FAQ)

Q: Can PE-68627NL be used as a direct replacement for PE-68627?

A: Yes. PE-68627NL is a parametric equivalent with identical DC resistance, number of lines, physical dimensions, and package configuration. No circuit modifications are required.

Q: What is the difference between PE-68627 and PE-68627NL?

A: The primary differences are product status (obsolete vs. active), RoHS compliance (non-compliant vs. compliant), and packaging format (bulk vs. tube). Electrical and mechanical performance are identical.

Q: Does the RoHS compliance difference affect circuit performance?

A: No. RoHS compliance relates to material composition and environmental regulations, not electrical performance. Both parts meet the same 250mOhm DCR specification and filtering characteristics.

Q: Are the physical dimensions identical between both parts?

A: Yes. Both parts measure 9.02mm × 8.76mm with a maximum height of 5.26mm and use the same vertical 8 flat lead package, ensuring PCB layout compatibility.

Q: Which part should be selected for new production?

A: PE-68627NL should be selected for new designs. It provides active product status, RoHS compliance, and superior inventory availability while maintaining complete electrical and mechanical equivalence.

Q: Is there any performance difference in the 4-line common mode choke function?

A: No. Both parts provide identical signal line filtering performance with 4 lines and 250mOhm maximum DC resistance.
