PE-68017S Equivalent & Substitute Parts

Part Overview

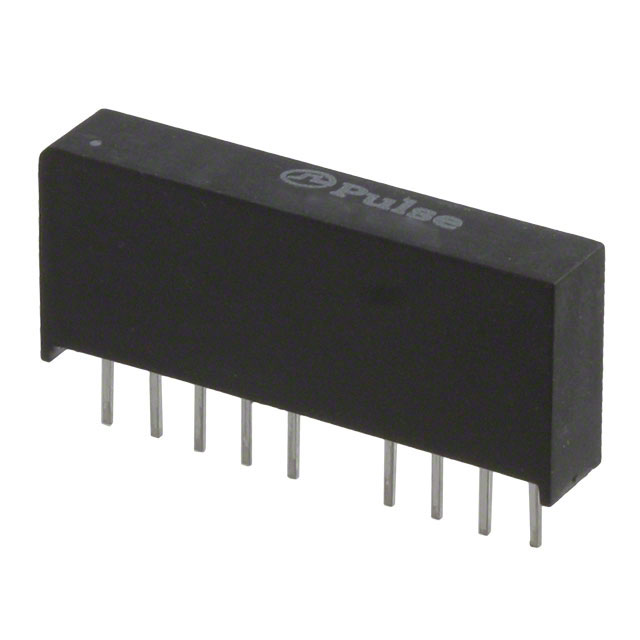

The PE-68017S is an isolation and data interface module manufactured by Pulse Electronics, designed as an encapsulated pulse transformer with a 1CT:1CT turns ratio configuration. This component functions as a single LAN filter module in a 10-SIL package format and is intended for through-hole mounting applications. The part is currently in active production status with 767 pieces available in new original inventory.

Substitute parts are identified when they maintain identical electrical specifications, mechanical compatibility, and functional performance characteristics while offering alternative sourcing options or improved availability.

Substiute Parts

PE-68017S

Pulse ElectronicsIn Stock: 803PE-68017S Datasheet

Current PartRFQ

PE-68017SNL

Pulse ElectronicsIn Stock: 819PE-68017SNL Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PE-68017S are identified based on strict equivalence across the following critical parameters:

• Transformer type classification: Isolation and Data Interface (Encapsulated)
• Turns ratio configuration: 1CT:1CT
• Mounting technology: Through Hole
• Physical dimensions: 1.000" L x 0.210" W with maximum seated height of 0.450"
• Regulatory compliance: ROHS3 Compliant, REACH Unaffected
• Moisture sensitivity classification: MSL 1

The PE-68017SNL maintains complete alignment with all specified parameters and is classified as a direct manufacturer substitute within the Pulse Electronics product line.

Parameter Comparison

Engineering Selection Recommendations

Both PE-68017S and PE-68017SNL are active production components manufactured by Pulse Electronics with identical electrical and mechanical specifications. Selection between these parts should be based on inventory availability and supply chain requirements. Both components maintain full ROHS3 compliance and REACH unaffected status, meeting current regulatory requirements for industrial and commercial applications. The PE-68017SNL offers marginally higher inventory availability at 791 pieces compared to 767 pieces for the PE-68017S.

Frequently Asked Questions (FAQ)

Q: Are PE-68017S and PE-68017SNL electrically interchangeable?

A: Yes. Both components share identical transformer type classification, turns ratio configuration (1CT:1CT), and all specified electrical parameters. They are direct functional equivalents.

Q: Do these parts have identical physical dimensions?

A: Yes. Both components maintain the same footprint (1.000" L x 0.210" W), maximum seated height (0.450"), and weight (0.09 oz). They are mechanically compatible for through-hole PCB mounting.

Q: What is the significance of the MSL 1 rating?

A: MSL 1 indicates unlimited moisture sensitivity level, meaning these components do not require special moisture control handling during storage, transportation, or assembly processes.

Q: Are both parts compliant with current environmental regulations?

A: Yes. Both PE-68017S and PE-68017SNL are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards for electronic components.

Q: Can I substitute PE-68017SNL for PE-68017S in existing designs?

A: Yes. The PE-68017SNL is a direct substitute with identical specifications across all critical parameters including transformer type, turns ratio, mounting configuration, and physical dimensions.
