PE-63385 Gate Drive Pulse Transformer Equivalent & Substitute Parts

Part Overview

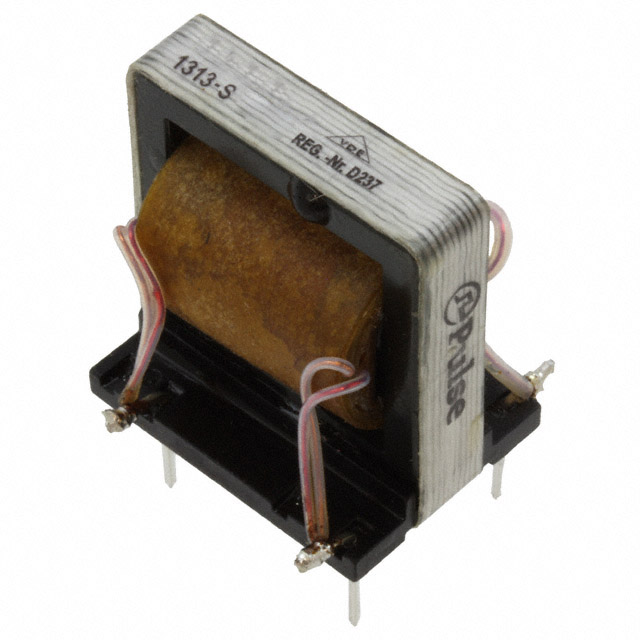

The PE-63385 is a 1.5mH gate drive pulse transformer with a 1:1 turns ratio, designed for through-hole mounting applications. This component is classified as obsolete, which necessitates identification of active equivalent parts to maintain design continuity and ensure ongoing component availability for production and repair applications.

Substiute Parts

PE-63385

Pulse ElectronicsIn Stock: 1084PE-63385 Datasheet

Current PartRFQ

PE-63385NL

Pulse ElectronicsIn Stock: 2179PE-63385NL Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PE-63385 is determined by strict equivalence across the following critical parameters:

• Inductance: 1.5mH (exact match required)
• Turns Ratio: 1:1 (exact match required)
• Mounting Type: Through Hole (physical compatibility)
• Physical Dimensions: 1.090" L x 0.750" W x 1.200" H maximum (footprint compatibility)
• Operating Temperature Range: 0°C ~ 70°C (minimum requirement)

The PE-63385NL meets all substitution criteria as a direct equivalent from the same manufacturer, with identical electrical specifications and physical form factor. The primary distinction is product status: PE-63385NL is active and available, whereas PE-63385 is obsolete.

Parameter Comparison

Engineering Selection Recommendations

The PE-63385NL is the direct substitute for the obsolete PE-63385. Both components share identical electrical specifications (1.5mH inductance, 1:1 turns ratio) and physical dimensions, ensuring direct form-fit-function compatibility in through-hole PCB applications.

The PE-63385NL offers improved compliance status: it is ROHS3 compliant, whereas the PE-63385 is RoHS non-compliant. For new designs or production environments with RoHS requirements, PE-63385NL is the appropriate selection. Both parts maintain REACH Unaffected status and identical export classification (EAR99).

Product availability strongly favors PE-63385NL, which is active and in stock (2151 pcs), compared to PE-63385, which is obsolete. For ongoing production support and component procurement, PE-63385NL is the required selection.
