PE183210 AC Power Connector - Equivalent & Substitute Parts

Part Overview

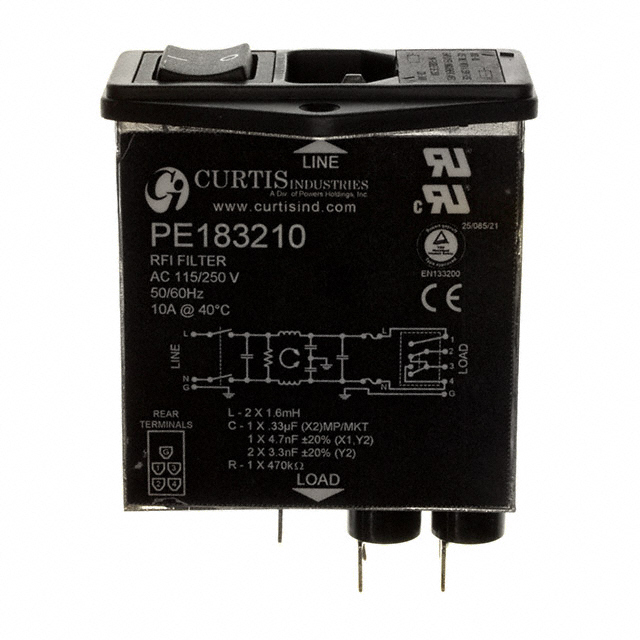

The PE183210 is an AC power entry connector module manufactured by Curtis Industries, designed as a receptacle with male blades conforming to the IEC 320-C14 standard. This component functions as a filtered power inlet with integrated switch and fuse holder for panel-mount applications in commercial equipment. The part is classified as obsolete, making identification of active equivalent alternatives essential for ongoing procurement and design continuity.

Substiute Parts

PE183210

Curtis IndustriesIn Stock: 981PE183210 Datasheet

Current PartRFQ

1-6609929-4

TE Connectivity Corcom FiltersIn Stock: 10431-6609929-4 Datasheet

SimilarRFQ

FN1394-10-05-11

Schaffner EMC Inc.In Stock: 1093FN1394-10-05-11 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PE183210 is determined by strict alignment with the following core parameters:

• Connector Standard: IEC 320-C14 receptacle configuration with male blades
• Electrical Ratings: 10A current capacity and compatible voltage rating (250VAC or higher)
• Functional Features: Integrated EMI/RFI filtering, on-off switch, twin fuse holder, and voltage selector
• Mechanical Interface: Panel mount with flange configuration and quick-connect termination
• Regulatory Compliance: Active product status with current certifications (UL, CSA minimum)

The two identified substitutes meet these core criteria while maintaining functional equivalence for the IEC 320-C14 power entry module category.

Parameter Comparison

Engineering Selection Recommendations

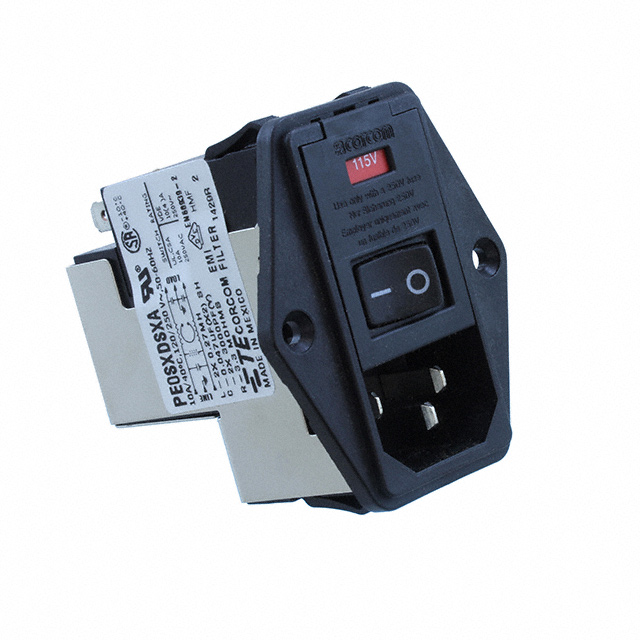

1-6609929-4 (TE Connectivity Corcom Filters)

This substitute maintains the closest electrical alignment with the PE183210, featuring identical 10A current rating and integrated 10A filter rating. The part is active with current UL and CSA certifications. The termination specification (0.187" quick connect) differs from the main part but remains within standard quick-connect connector families. Voltage rating of 120VAC is lower than the PE183210's 250VAC specification; application voltage requirements must be verified before selection.

FN1394-10-05-11 (Schaffner EMC Inc.)

This substitute provides IEC 320-C14 compliance with 10A filter rating and active product status. CSA and UL certifications are current. The part supports both front and rear side mounting, offering additional mechanical flexibility. Termination specification (0.250" quick connect) differs from the main part. Electrical ratings (current and voltage) are not specified in available data; confirmation with the manufacturer is necessary for voltage and current compatibility verification.

Both substitutes carry active product status and current regulatory certifications, supporting long-term supply chain continuity compared to the obsolete PE183210.

Frequently Asked Questions (FAQ)

Q: Can the 1-6609929-4 be used in applications originally designed for the PE183210?

A: The 1-6609929-4 shares the IEC 320-C14 connector standard, 10A current rating, and core filtering/switching functionality. However, the voltage rating is 120VAC versus the PE183210's 250VAC. Substitution is valid only for applications operating at 120VAC or lower. Termination connector size differs (0.187" vs. unspecified on PE183210); panel wiring harness compatibility must be confirmed.

Q: What are the key differences between the two substitute parts?

A: Both maintain IEC 320-C14 compliance and 10A filtering. The 1-6609929-4 specifies 120VAC operation, while the FN1394-10-05-11 does not specify voltage rating. The FN1394-10-05-11 offers front or rear mounting flexibility. Termination connectors differ: 0.187" (1-6609929-4) versus 0.250" (FN1394-10-05-11). Both are active products with current certifications.

Q: Are there voltage compatibility concerns with these substitutes?

A: The 1-6609929-4 is rated for 120VAC, which is lower than the PE183210's 250VAC rating. Applications requiring 250VAC operation cannot use this substitute. The FN1394-10-05-11 does not specify voltage rating; manufacturer confirmation is required before selection for high-voltage applications.

Q: How do packaging and inventory considerations affect selection?

A: The PE183210 is obsolete with 932 units in stock. The 1-6609929-4 is available in bulk packaging with 1009 units in stock. The FN1394-10-05-11 is packaged in trays with 1064 units in stock. For long-term procurement, active products (both substitutes) provide superior supply chain reliability compared to the obsolete main part.

Q: What termination connector compatibility must be verified?

A: The PE183210 uses unspecified quick-connect termination. The 1-6609929-4 uses 0.187" (4.7mm) quick-connect terminals, and the FN1394-10-05-11 uses 0.250" (6.3mm) quick-connect terminals. Existing panel wiring harnesses must be verified for physical and electrical compatibility with the selected substitute's termination specification.
