PDB-V601-1 Equivalent & Substitute Parts Reference

Part Overview

The PDB-V601-1 is an active optical sensor photodiode operating at 940nm wavelength with a 300ns response time. This die-format photodiode is designed for infrared sensing applications requiring fast switching and low dark current characteristics. The part is currently in active production status with robust inventory availability. Substitute parts may be required due to packaging constraints, application-specific form factor requirements, or supply chain considerations while maintaining equivalent electrical performance.

Substiute Parts

PDB-V601-1

Advanced PhotonixIn Stock: 1147PDB-V601-1 Datasheet

Current PartRFQ

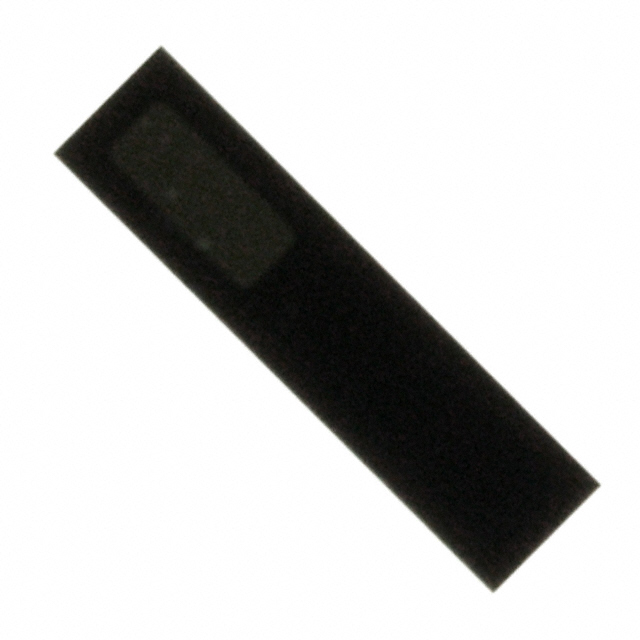

PDB-V601-1-25

Advanced PhotonixIn Stock: 838PDB-V601-1-25 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PDB-V601-1 is determined by matching the following critical electrical parameters:

• Wavelength: 940nm (exact match required)
• Response Time: 300ns (exact match required)
• Voltage - DC Reverse (Max): 25V (exact match required)
• Current - Dark (Typ): 3nA (exact match required)
• Operating Temperature Range: -40°C to 100°C (exact match required)
• Spectral Range: 350nm to 1100nm (exact match required)
• RoHS Compliance: Required for regulatory compatibility

The substitute part PDB-V601-1-25 shares all critical electrical specifications with the main part. The primary difference is the package form factor: PDB-V601-1 is supplied as a die, while PDB-V601-1-25 is supplied in rectangular package format. Both parts are manufactured by Advanced Photonix and carry the same base product number (PDB-V601), confirming their functional equivalence within the same product family.

Parameter Comparison

Engineering Selection Recommendations

Both PDB-V601-1 and PDB-V601-1-25 are active production parts manufactured by Advanced Photonix with full RoHS compliance. Selection between these parts is determined by packaging and mounting requirements rather than electrical performance.

PDB-V601-1 (Die Format): Select this part for applications requiring direct die integration, hybrid assembly, or custom packaging solutions where the bare die form factor is advantageous.

PDB-V601-1-25 (Rectangular Package): Select this part for applications requiring a pre-packaged rectangular form factor with user-defined mounting options, simplifying integration into standard component layouts.

Both parts maintain identical electrical specifications, ensuring functional interchangeability within their respective packaging constraints. Inventory availability is strong for both variants, supporting production continuity.

Frequently Asked Questions (FAQ)

Q: Can PDB-V601-1-25 be used as a direct replacement for PDB-V601-1?

A: Electrical substitution is complete; all critical parameters including wavelength, response time, voltage rating, and dark current are identical. Physical substitution depends on your application's packaging and mounting requirements. The die format (PDB-V601-1) and rectangular package format (PDB-V601-1-25) require different integration approaches.

Q: What are the key differences between these two parts?

A: The electrical specifications are identical. The primary differences are package format (die versus rectangular) and mounting type (free hanging versus user defined). These differences affect mechanical integration only, not sensor performance.

Q: Are both parts RoHS compliant?

A: Yes, both PDB-V601-1 and PDB-V601-1-25 are RoHS compliant and carry identical regulatory certifications (ECCN: EAR99, HTSUS: 8541.49.1050).

Q: What is the active area specification for PDB-V601-1-25?

A: The active area parameter is not specified in the technical data for the rectangular package variant. Contact the manufacturer for detailed dimensional specifications if active area is critical to your application.

Q: Are both parts currently in stock?

A: Yes, both parts are in active production with current inventory: PDB-V601-1 has 1075 pieces available, and PDB-V601-1-25 has 824 pieces available.

Q: Can I use either part for 940nm infrared sensing applications?

A: Yes, both parts are specified for 940nm wavelength operation with 300ns response time, making them suitable for infrared sensing applications within the -40°C to 100°C operating temperature range.
