PCV1C221MCL1GS Equivalent & Substitute Parts

Part Overview

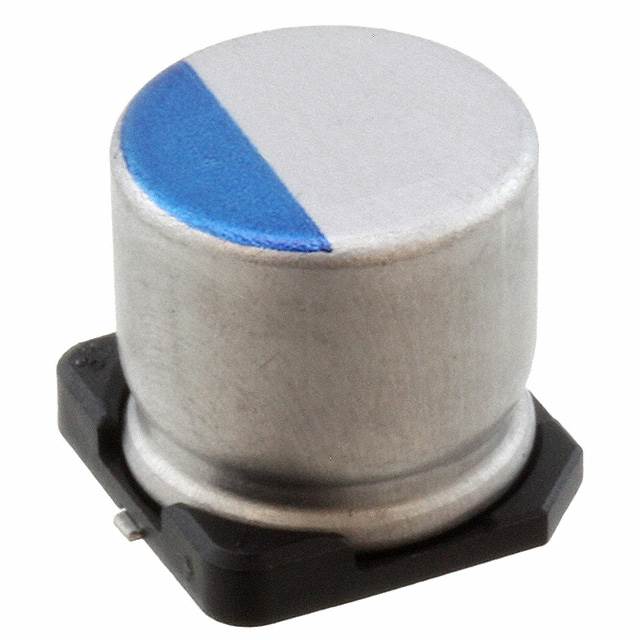

The PCV1C221MCL1GS is a 220 µF, 16 V aluminum polymer capacitor manufactured by Nichicon in the PCV series. This surface mount radial can capacitor is designed for general purpose applications with an operating temperature range of -55°C to 105°C and a rated lifetime of 3000 hours at 105°C. The part is Active status and fully compliant with RoHS3 and REACH regulations. Equivalent and substitute parts are identified to provide design flexibility, accommodate supply chain variations, and support alternative sourcing strategies while maintaining electrical and mechanical compatibility within specified parameters.

Key Parameters

Parameter	Value
Capacitance	220 µF
Voltage Rating	16 V
Tolerance	±20%
Type	Aluminum Polymer
Package Type	Radial, Can - SMD
Mounting	Surface Mount
Operating Temperature	-55°C to 105°C
ESR (Equivalent Series Resistance)	31 mOhm
Lifetime @ 105°C	3000 Hours
Ripple Current @ 100 kHz	2 A
Size / Dimension	0.394" Dia (10.00 mm)
Height - Seated (Max)	0.315" (8.00 mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30 mm x 10.30 mm)
RoHS Status	RoHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the PCV1C221MCL1GS is determined by strict equivalence across the following critical parameters: capacitance value (220 µF), voltage rating (16 V), tolerance (±20%), component type (aluminum polymer), package style (radial can SMD), mounting method (surface mount), and operating temperature range (-55°C to 105°C). Substitute parts must maintain identical electrical specifications and physical footprint compatibility with the original PCB land pattern (0.406" L x 0.406" W / 10.30 mm x 10.30 mm). Secondary parameters including ESR, ripple current capability, and lifetime rating may vary within acceptable ranges for general purpose applications. All substitute parts listed are Active status and meet RoHS3 compliance requirements.

Parameter Comparison

Part Number	Manufacturer	Series	Capacitance	Voltage	Tolerance	ESR (mOhm)	Lifetime @ 105°C	Ripple Current @ 100 kHz	Size Dia (mm)	Height (mm)	Land Size (mm)	Packaging	Status
PCV1C221MCL1GS	Nichicon	PCV	220 µF	16 V	±20%	31	3000 Hrs	2 A	10.00	8.00	10.30 x 10.30	Tape & Reel	Active
PCF1C221MCL1GS	Nichicon	PCF	220 µF	16 V	±20%	20	2000 Hrs	3.9 A	10.00	10.00	10.30 x 10.30	Cut Tape & Digi-Reel	Active
PCJ1C221MCL1GS	Nichicon	PCJ	220 µF	16 V	±20%	22	2000 Hrs	3.45 A	10.00	8.00	10.30 x 10.30	Tape & Reel	Active
PCJ1C221MCL4GS	Nichicon	PCJ	220 µF	16 V	±20%	18	2000 Hrs	3.89 A	8.00	10.00	8.30 x 8.30	Tape & Reel	Active
PCV1C221MCL6GS	Nichicon	PCV	220 µF	16 V	±20%	27	3000 Hrs	2 A	8.00	10.00	8.30 x 8.30	Tape & Reel	Active
RPS1C221MCN1GS	Nichicon	RPS / FPCAP	220 µF	16 V	±20%	20	2000 Hrs	3.7 A	8.00	11.70	8.30 x 8.30	Tape & Reel	Active
APXA160ARA221MJC0G	Chemi-Con	NPCAP-PXA	220 µF	16 V	±20%	14	15000 Hrs	5.05 A	10.00	12.20	10.30 x 10.30	Tape & Reel	Active
APXE160ARA221MHA0G	Chemi-Con	NPCAP-PXE	220 µF	16 V	±20%	18	2000 Hrs	3.89 A	8.00	10.00	8.30 x 8.30	Tape & Reel	Active
APXE160ARA221MJ80G	Chemi-Con	NPCAP-PXE	220 µF	16 V	±20%	22	2000 Hrs	3.45 A	10.00	7.70	10.30 x 10.30	Tape & Reel	Active

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and full RoHS3 compliance, ensuring regulatory alignment with the original PCV1C221MCL1GS. Selection between Nichicon and Chemi-Con alternatives depends on PCB layout constraints and available board space. For designs with strict height limitations matching the original 8.00 mm seated height, PCJ1C221MCL1GS and APXE160ARA221MJ80G are direct mechanical fits. For applications where increased ripple current handling or extended lifetime is beneficial, APXA160ARA221MJC0G (Chemi-Con NPCAP-PXA series) offers 15000 hours lifetime at 105°C with 5.05 A ripple current capability while maintaining the 10.00 mm diameter and 10.30 mm x 10.30 mm land pattern. PCB land pattern compatibility must be verified: parts with 10.30 mm x 10.30 mm land size are directly interchangeable with the original; parts with 8.30 mm x 8.30 mm land size require PCB redesign. Packaging format (Tape & Reel versus Cut Tape & Digi-Reel) affects procurement and assembly processes but does not impact electrical performance.

Frequently Asked Questions (FAQ)

Q: Can PCJ1C221MCL4GS replace PCV1C221MCL1GS directly on the PCB?

A: PCJ1C221MCL4GS has a different physical footprint (8.00 mm diameter with 8.30 mm x 8.30 mm land size versus 10.00 mm diameter with 10.30 mm x 10.30 mm land size). Direct PCB substitution is not possible without land pattern modification.

Q: What is the difference between Nichicon and Chemi-Con substitute options?

A: Both manufacturers provide 220 µF, 16 V aluminum polymer capacitors meeting the same electrical specifications and RoHS3 compliance. Chemi-Con NPCAP series parts offer extended lifetime ratings (15000 hours for APXA160ARA221MJC0G) and improved ripple current performance. Selection depends on application requirements and supply availability.

Q: Does ESR variation affect circuit performance?

A: ESR values range from 14 mOhm (APXA160ARA221MJC0G) to 31 mOhm (PCV1C221MCL1GS). Lower ESR reduces heat generation and improves transient response in high-frequency switching applications. Circuit design determines whether ESR variation is acceptable.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All listed substitute parts are RoHS3 compliant and suitable for applications requiring regulatory compliance.

Q: What packaging formats are available?

A: Nichicon parts are supplied in Tape & Reel (TR) or Cut Tape & Digi-Reel (CT) formats. Chemi-Con parts are supplied in Tape & Reel format. Packaging format does not affect electrical performance but impacts procurement and assembly logistics.

Q: Can I use APXA160ARA221MJC0G in a space-constrained design?

A: APXA160ARA221MJC0G has a maximum seated height of 12.20 mm, which exceeds the original PCV1C221MCL1GS height of 8.00 mm. Space constraints must be evaluated before selection.
