PCSB250-AP-6 Equivalent & Substitute Parts

Part Overview

The PCSB250-AP-6 is a multi-tap connector with offset configuration manufactured by Panduit Corp. This terminal connector is classified as obsolete and is no longer in active production. The part carries ROHS3 compliance certification. Due to its obsolete status, identification of functionally equivalent active alternatives is necessary for ongoing system maintenance, repair, and new design implementations where this connector type is required.

Substiute Parts

PCSB250-AP-6

Panduit CorpIn Stock: 1196PCSB250-AP-6 Datasheet

Current PartRFQ

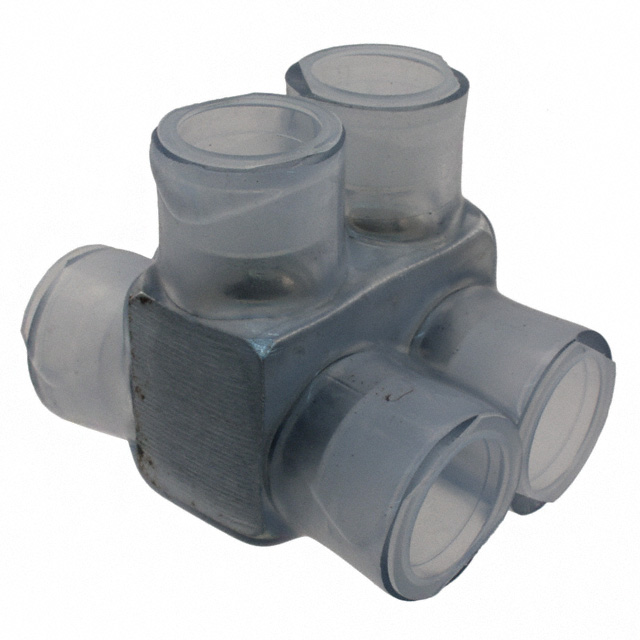

PCSB250-2-6Y

Panduit CorpIn Stock: 1141PCSB250-2-6Y Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The PCSB250-AP-6 has been identified with one equivalent substitute part: PCSB250-2-6Y. This substitution is based on the following alignment criteria:

Manufacturer Consistency: Both parts are manufactured by Panduit Corp, ensuring design philosophy and quality standards alignment.

Series Alignment: The substitute part belongs to the PCSB series, maintaining product line continuity.

Connector Classification: Both parts function as tap connectors within the terminal connector category.

Compliance Equivalence: Both parts maintain ROHS3 compliance certification, satisfying regulatory requirements.

Wire Gauge Compatibility: The substitute part is rated for 250MCM (kcmil) to 6 AWG wire gauge range, matching the primary part's electrical specifications.

Termination Method: The substitute employs screw termination, a standard method for this connector class.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Part Replacement: The PCSB250-2-6Y is the designated equivalent for the PCSB250-AP-6. Both parts maintain ROHS3 compliance, ensuring regulatory alignment for applications subject to environmental standards. The substitute part carries active product status, guaranteeing continued availability and manufacturer support.

For New Designs: The PCSB250-2-6Y should be specified in new designs requiring tap connector functionality in the 250MCM to 6 AWG wire gauge range. Active product status ensures long-term supply chain reliability and technical documentation availability.

Compliance Continuity: Both parts satisfy ROHS3 requirements. No compliance degradation occurs through substitution. The substitute part additionally carries REACH Affected status and EAR99 ECCN classification, providing expanded regulatory documentation for controlled environments.

Frequently Asked Questions (FAQ)

Q: Can PCSB250-2-6Y directly replace PCSB250-AP-6 in existing installations?

A: The PCSB250-2-6Y is the manufacturer-designated equivalent for the obsolete PCSB250-AP-6. Both parts are ROHS3 compliant and manufactured by Panduit Corp. Physical form factor differences between offset and inline configurations must be evaluated against specific installation geometry requirements.

Q: What is the primary difference between these two parts?

A: The PCSB250-AP-6 is configured as an offset multi-tap connector, while the PCSB250-2-6Y is an inline tap connector. Both serve tap connector functions within the terminal connector category. The configuration difference may affect spatial requirements in the installation environment.

Q: Are both parts available for purchase?

A: The PCSB250-AP-6 is obsolete but currently maintains inventory of 1114 pieces. The PCSB250-2-6Y is active with 1112 pieces in stock. For long-term procurement planning, the active status of PCSB250-2-6Y ensures continued availability.

Q: Do both parts meet the same regulatory standards?

A: Both parts are ROHS3 compliant and have Not Applicable moisture sensitivity levels. The PCSB250-2-6Y carries additional REACH Affected designation and EAR99 ECCN classification, providing more comprehensive regulatory documentation.

Q: What wire gauge range does the substitute part support?

A: The PCSB250-2-6Y supports 250MCM (kcmil) to 6 AWG wire gauge range with screw termination and full insulation.
