PCMF3USB30Z Equivalent & Substitute Parts

Part Overview

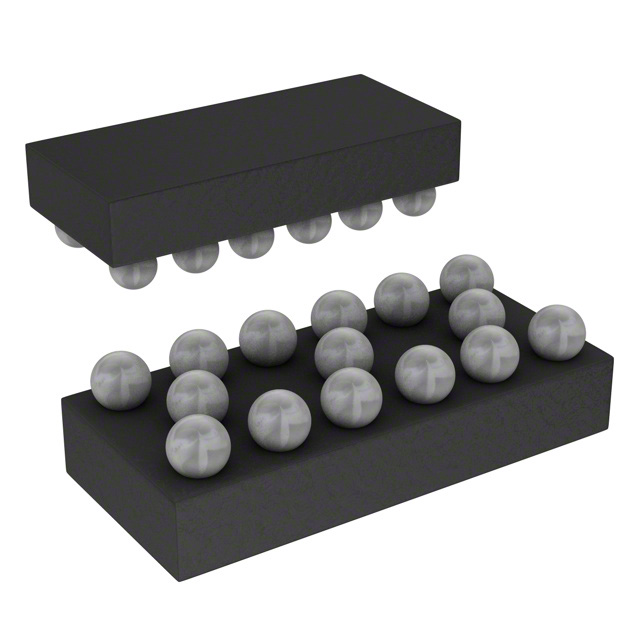

The PCMF3USB30Z is a 6-line common mode choke (CMC) surface mount device with integrated ESD protection manufactured by Nexperia USA Inc. This component is designed for signal line filtering applications requiring EMI suppression and transient voltage suppression in high-speed data interfaces. The part is Active status and ROHS3 compliant, making it suitable for current production designs. Substitute parts are identified when equivalent electrical and mechanical parameters are required due to inventory constraints, design revisions, or supply chain optimization.

Substiute Parts

PCMF3USB30Z

Nexperia USA Inc.In Stock: 5084PCMF3USB30Z Datasheet

Current PartRFQ

PCMF3HDMI2SZ

Nexperia USA Inc.In Stock: 31303PCMF3HDMI2SZ Datasheet

Parametric EquivalentRFQ

PCMF3USB3B/CZ

Nexperia USA Inc.In Stock: 6627PCMF3USB3B/CZ Datasheet

Parametric EquivalentRFQ

PCMF3USB3S/CZ

Nexperia USA Inc.In Stock: 12850PCMF3USB3S/CZ Datasheet

Parametric EquivalentRFQ

PCMF3USB3SZ

Nexperia USA Inc.In Stock: 39255PCMF3USB3SZ Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PCMF3USB30Z are qualified based on the following critical parameters that determine functional equivalence:

• Number of Lines: 6 (all substitutes maintain this specification)
• DC Resistance (DCR): 3Ohm (Typ) (all substitutes maintain this specification)
• Filter Type: Signal Line (all substitutes maintain this specification)
• Features: TVS Diode ESD Protection (all substitutes maintain this specification)
• Mounting Type: Surface Mount (all substitutes maintain this specification)
• Package / Case: 15-UFBGA, WLCSP (all substitutes maintain this specification)
• Physical Dimensions: 0.093" L x 0.046" W (2.37mm x 1.17mm) and Height 0.024" (0.60mm) (all substitutes maintain this specification)
• Operating Temperature Range: -40°C ~ 85°C (all substitutes maintain this specification)
• RoHS Status: ROHS3 Compliant (all substitutes maintain this specification)
• Moisture Sensitivity Level: 1 (Unlimited) (all substitutes maintain this specification)
• REACH Status: REACH Unaffected (all substitutes maintain this specification)

All identified substitute parts are manufactured by Nexperia USA Inc. within the PCM series and maintain identical electrical and mechanical specifications to the primary part number.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed maintain Active product status with Nexperia USA Inc., ensuring continued manufacturer support and availability. Each substitute part is ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for production designs. The electrical and mechanical specifications are identical across all listed parts, including the 6-line configuration, 3Ohm typical DC resistance, TVS diode ESD protection, and 15-UFBGA/WLCSP package format.

Selection between PCMF3USB30Z and its substitutes should be based on inventory availability, supply chain lead times, and design documentation requirements. All parts are qualified for the same operating temperature range (-40°C to 85°C) and moisture sensitivity classification (MSL 1).
