PCF14JT75R0 Equivalent & Substitute Parts

Part Overview

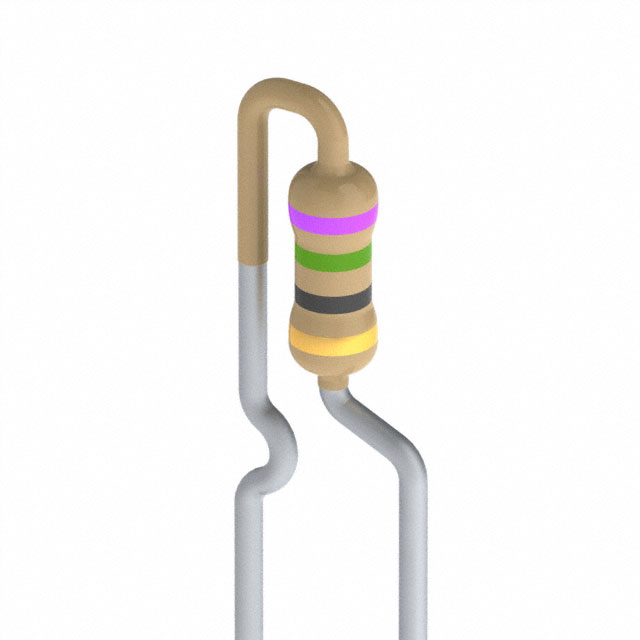

The PCF14JT75R0 is a 75 Ohm, ±5% tolerance, 0.25W (1/4W) through-hole resistor manufactured by Stackpole Electronics Inc. This carbon film resistor features flame retardant coating and safety characteristics, designed for axial or radial bend configurations in Tape & Reel packaging. The part maintains Active product status with ROHS3 compliance and is suitable for applications requiring reliable fixed resistance values across the -55°C to 155°C operating temperature range. Equivalent and substitute parts are identified to provide procurement flexibility while maintaining electrical and mechanical compatibility.

Substiute Parts

PCF14JT75R0

Stackpole Electronics IncIn Stock: 1082PCF14JT75R0 Datasheet

Current PartRFQ

CF14JT75R0

Stackpole Electronics IncIn Stock: 84020CF14JT75R0 Datasheet

DirectRFQ

CFM14JT75R0

Stackpole Electronics IncIn Stock: 1552CFM14JT75R0 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PCF14JT75R0 is determined by strict equivalence across the following critical parameters: resistance value (75 Ohms), tolerance (±5%), power rating (0.25W), composition (carbon film), temperature coefficient (0 / -400ppm/°C), operating temperature range (-55°C to 155°C), and regulatory compliance (ROHS3, REACH Unaffected). All identified substitutes maintain these electrical specifications. Packaging format differences (Tape & Reel versus Cut Tape) and physical dimensions do not affect electrical performance but may impact procurement and assembly workflows. The CFM14JT75R0 represents a manufacturer-recommended alternative with identical electrical characteristics but reduced physical dimensions (0.067" Dia x 0.130" L versus 0.091" Dia x 0.236" L).

Parameter Comparison

Engineering Selection Recommendations

All three parts—PCF14JT75R0, CF14JT75R0, and CFM14JT75R0—maintain Active product status and full regulatory compliance (ROHS3 Compliant, REACH Unaffected). Selection between these parts should be based on packaging requirements and physical space constraints within the application.

The CF14JT75R0 is a direct electrical equivalent available in Cut Tape packaging, suitable for applications where Tape & Reel format is not required. This part maintains identical physical dimensions to the PCF14JT75R0 (0.091" Dia x 0.236" L).

The CFM14JT75R0 is the manufacturer-recommended alternative, offering identical electrical performance with a compact form factor (0.067" Dia x 0.130" L). This reduced size may be advantageous in space-constrained designs while maintaining all electrical and compliance specifications.

Frequently Asked Questions (FAQ)

Q: Can CF14JT75R0 replace PCF14JT75R0 in my circuit?

A: Yes. Both parts are electrically identical 75 Ohm, ±5%, 0.25W carbon film resistors with matching temperature coefficients and operating ranges. The primary difference is packaging format (Cut Tape versus Tape & Reel). Physical dimensions and electrical performance are equivalent.

Q: What is the difference between PCF14JT75R0 and CFM14JT75R0?

A: Both parts deliver identical electrical specifications: 75 Ohms, ±5% tolerance, 0.25W power rating, and -55°C to 155°C operating range. The CFM14JT75R0 features a smaller physical footprint (0.067" Dia x 0.130" L versus 0.091" Dia x 0.236" L). Selection depends on available board space and assembly equipment compatibility.

Q: Are all three parts ROHS3 compliant?

A: Yes. PCF14JT75R0, CF14JT75R0, and CFM14JT75R0 are all ROHS3 Compliant and REACH Unaffected, meeting current regulatory requirements for electronic components.

Q: Does packaging format affect electrical performance?

A: No. Tape & Reel (TR) and Cut Tape (CT) packaging formats are logistics and assembly considerations only. Electrical characteristics remain identical across all packaging options.

Q: Can I use CFM14JT75R0 in a design originally specified for PCF14JT75R0?

A: Yes, provided the reduced physical dimensions (0.067" Dia x 0.130" L) are compatible with your PCB layout and assembly process. All electrical and compliance specifications are maintained.
