PCF14JT110K Equivalent & Substitute Parts

Part Overview

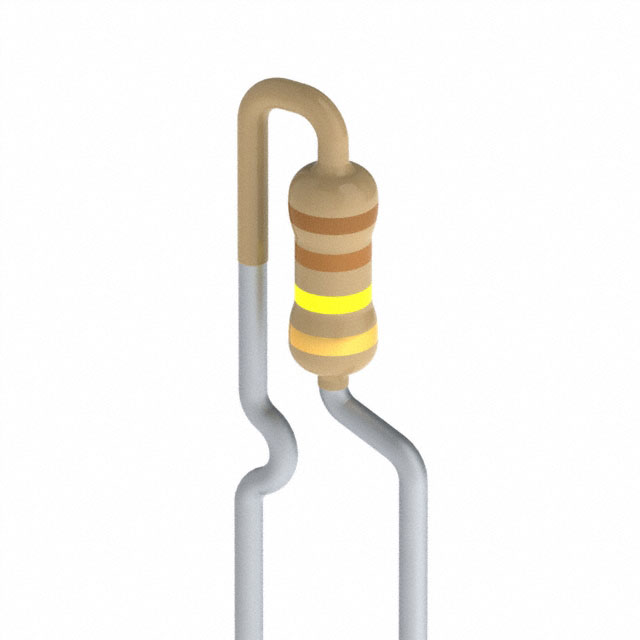

The PCF14JT110K is a 110 kOhms ±5% 0.25W carbon film through-hole resistor manufactured by Stackpole Electronics Inc. This component is classified as Active product status and is designed for general-purpose resistive applications requiring flame retardant coating and safety features. Equivalent and substitute parts are identified to provide procurement flexibility while maintaining electrical and mechanical compatibility within the specified parameter tolerances.

Substiute Parts

PCF14JT110K

Stackpole Electronics IncIn Stock: 957PCF14JT110K Datasheet

Current PartRFQ

CF14JT110K

Stackpole Electronics IncIn Stock: 20319CF14JT110K Datasheet

DirectRFQ

CFM14JT110K

Stackpole Electronics IncIn Stock: 773CFM14JT110K Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PCF14JT110K are qualified based on the following electrical and mechanical parameters:

• Resistance value: 110 kOhms
• Tolerance: ±5%
• Power rating: 0.25W (1/4W)
• Composition: Carbon Film
• Temperature coefficient: 0 / -850ppm/°C
• Operating temperature range: -55°C to 155°C
• Features: Flame Retardant Coating, Safety
• RoHS and REACH compliance status

Substitutes are differentiated by packaging format (Tape & Reel versus Cut Tape) and physical dimensions. The CF14JT110K and CFM14JT110K maintain identical electrical specifications and compliance certifications, with variations in package case configuration and supplier device packaging.

Parameter Comparison

Engineering Selection Recommendations

All three parts—PCF14JT110K, CF14JT110K, and CFM14JT110K—are Active status components manufactured by Stackpole Electronics Inc with identical electrical specifications and full compliance with ROHS3 and REACH requirements.

Selection between these parts is determined by packaging and dimensional requirements:

• PCF14JT110K: Tape & Reel packaging with Axial/Radial Bend configuration, standard dimensions (2.30mm x 6.00mm)
• CF14JT110K: Cut Tape packaging with Axial configuration, standard dimensions (2.30mm x 6.00mm)
• CFM14JT110K: Tape & Reel packaging with Axial configuration, compact dimensions (1.70mm x 3.30mm)

The CFM14JT110K variant offers reduced physical size while maintaining all electrical and compliance specifications, suitable for space-constrained applications. The CF14JT110K provides Cut Tape packaging for lower-volume or manual assembly requirements.

Frequently Asked Questions (FAQ)

Q: Can CF14JT110K be used as a direct replacement for PCF14JT110K?

A: Yes. Both parts share identical electrical specifications (110 kOhms ±5%, 0.25W, carbon film composition, temperature coefficient, and operating range). The primary difference is packaging format: PCF14JT110K is supplied in Tape & Reel while CF14JT110K is supplied in Cut Tape. Physical dimensions are identical (2.30mm x 6.00mm).

Q: What are the dimensional differences between CFM14JT110K and the other variants?

A: The CFM14JT110K has compact dimensions of 0.067" Dia x 0.130" L (1.70mm x 3.30mm), compared to 0.091" Dia x 0.236" L (2.30mm x 6.00mm) for both PCF14JT110K and CF14JT110K. All other electrical and compliance parameters remain identical.

Q: Are all three parts RoHS and REACH compliant?

A: Yes. PCF14JT110K, CF14JT110K, and CFM14JT110K are all ROHS3 Compliant and REACH Unaffected.

Q: Which part should be selected for automated assembly?

A: PCF14JT110K and CFM14JT110K are both supplied in Tape & Reel packaging, suitable for automated pick-and-place assembly. CF14JT110K in Cut Tape format is suitable for manual or semi-automated assembly processes.

Q: Do all variants have the same temperature coefficient and operating range?

A: Yes. All three parts have a temperature coefficient of 0 / -850ppm/°C and an operating temperature range of -55°C to 155°C.
