PCE-C-12 Equivalent & Substitute Parts

Part Overview

The PCE-C-12 is a 12-position receptacle connector with bottom entry configuration, 0.100" (2.54mm) pitch, designed for through-hole solder termination. This connector is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system support and component procurement. The part features board hooks for mechanical retention and is rated for 3A at 250VAC across automotive, general purpose, medical, and telecommunications applications.

Key Parameters

Parameter	Value
Connector Type	Receptacle, Bottom Entry
Number of Positions	12
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Current Rating	3A
Voltage Rating	250VAC
Operating Temperature	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the PCE-C-12 is determined by the following critical parameters:

Connector Configuration: Receptacle, bottom entry, 12-position
Pitch Specification: 0.100" (2.54mm) mating pitch
Mounting & Termination: Through-hole solder termination
Mechanical Interface: Push-pull fastening with board hooks
Electrical Performance: Contact finish (tin), voltage rating (250VAC), and current capacity
Environmental Compliance: UL94 V-0 flammability rating, RoHS3 compliance

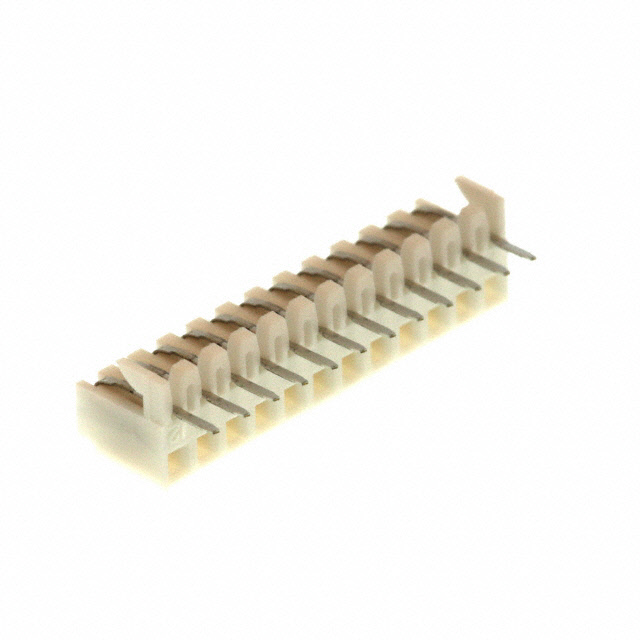

The substitute part 0022142124 (Molex KK254/4455 series) meets these core substitution criteria. Both parts share identical connector type, position count, pitch, mounting method, and termination approach. Compliance certifications (UL94 V-0, RoHS3) are equivalent.

Parameter Comparison

Parameter	PCE-C-12 (Adam Tech)	0022142124 (Molex)	Compatibility Note
Connector Type	Receptacle, Bottom Entry	Receptacle, Bottom Entry	Identical
Number of Positions	12	12	Identical
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	Identical
Mounting Type	Through Hole	Through Hole	Identical
Termination	Solder	Solder	Identical
Fastening Type	Push-Pull	Push-Pull	Identical
Contact Finish - Mating	Tin	Tin	Identical
Current Rating (Amps)	3A	2.5A	Molex rated lower; verify application requirements
Voltage Rating	250VAC	250VAC	Identical
Operating Temperature	-40°C ~ 105°C	-40°C ~ 80°C	Molex has narrower upper temperature range
Material Flammability Rating	UL94 V-0	UL94 V-0	Identical
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	Identical
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon	Both polyamide-based; minor material variation
Contact Material	Phosphor Bronze	Brass	Different contact alloy
Insulation Height	0.276" (7.00mm)	0.311" (7.90mm)	Molex slightly taller; verify PCB clearance
Contact Length - Post	0.146" (3.70mm)	0.132" (3.35mm)	PCE-C-12 has longer post; verify mating depth

Engineering Selection Recommendations

The Molex 0022142124 connector is functionally equivalent to the PCE-C-12 for applications where the following conditions are met:

Current Requirements: Application current demand does not exceed 2.5A. The PCE-C-12 is rated for 3A; the Molex substitute is rated for 2.5A.
Temperature Environment: Operating temperature range remains within -40°C to 80°C. The PCE-C-12 supports -40°C to 105°C; the Molex part has a narrower upper limit.
Physical Constraints: PCB layout accommodates the Molex insulation height of 0.311" (7.90mm) versus the PCE-C-12 height of 0.276" (7.00mm). Contact post length difference (0.146" vs. 0.132") must be verified against mating connector depth requirements.
Compliance Requirements: Both parts meet UL94 V-0 flammability and RoHS3 compliance standards.

The Molex part carries active product status, ensuring ongoing availability and supply chain support compared to the obsolete PCE-C-12.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0022142124 directly replace the PCE-C-12 in existing designs?

A: Direct replacement is possible if application current does not exceed 2.5A and operating temperature remains below 80°C. Physical dimensions (insulation height and contact post length) must be verified against PCB layout and mating connector specifications.

Q: What is the primary difference in electrical performance between these connectors?

A: The PCE-C-12 is rated for 3A at 250VAC with an operating temperature range of -40°C to 105°C. The Molex 0022142124 is rated for 2.5A at 250VAC with an operating temperature range of -40°C to 80°C. Both maintain 250VAC voltage rating and UL94 V-0 compliance.

Q: Are there material differences between the two connectors?

A: Yes. The PCE-C-12 uses phosphor bronze contacts, while the Molex 0022142124 uses brass contacts. Both insulators are polyamide-based (nylon). These material differences do not affect functional compatibility for standard board-to-board or cable applications within the specified electrical and thermal parameters.

Q: What packaging format is the Molex substitute supplied in?

A: The Molex 0022142124 is supplied in tray packaging, compared to the PCE-C-12 which has no specified packaging format listed.

Q: Are both connectors RoHS compliant?

A: Yes. Both the PCE-C-12 and Molex 0022142124 are ROHS3 compliant and REACH unaffected.
