PC24.07.0100A RF Antenna Equivalent & Substitute Parts

Part Overview

The PC24.07.0100A is a flat patch RF antenna manufactured by Taoglas Limited, designed for multi-band cellular applications across 850MHz, 900MHz, 1.8GHz, and 1.9GHz frequency bands. This component operates within the AMPS, DCS, GSM, and PCS standards with a frequency range of 824MHz to 960MHz and 1.71GHz to 1.99GHz. The part is currently classified as obsolete, making identification of equivalent substitute components necessary for ongoing system support and new design implementations.

Substiute Parts

PC24.07.0100A

Taoglas LimitedIn Stock: 753PC24.07.0100A Datasheet

Current PartRFQ

PC23.07.0100A

Taoglas LimitedIn Stock: 1025PC23.07.0100A Datasheet

SimilarRFQ

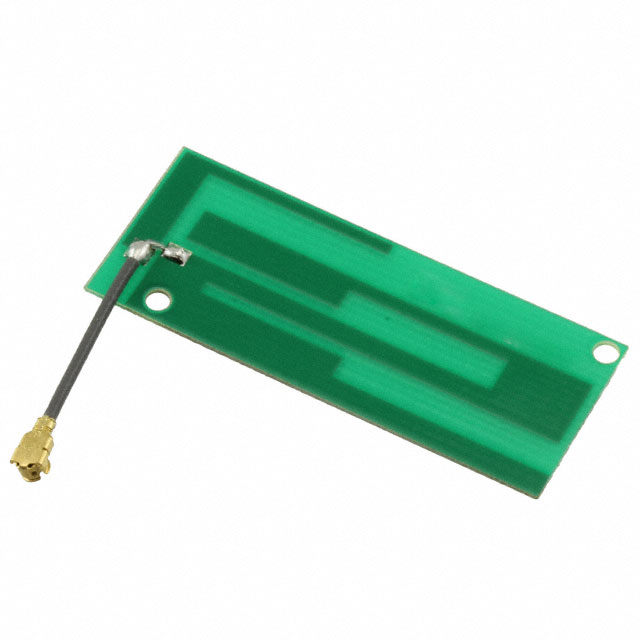

W3502

Pulse ElectronicsIn Stock: 2003W3502 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute components for the PC24.07.0100A are identified based on the following critical parameters that determine functional equivalence:

Frequency Compatibility: All substitute parts must operate within the 824MHz to 960MHz and 1.71GHz to 1.99GHz frequency ranges to maintain coverage of the original GSM, DCS, and PCS bands.

Termination Type: Substitutes must utilize U.FL (UMCC) or IPEX MHF1 connectors to ensure mechanical and electrical compatibility with existing interconnect infrastructure.

Impedance and Return Loss: Parts must demonstrate acceptable return loss performance across the operating frequency bands to maintain signal integrity.

Regulatory Compliance: All substitutes must maintain ROHS3 compliance and REACH unaffected status to meet current environmental and safety standards.

Physical Constraints: Maximum height of 0.80mm ensures compatibility with space-constrained applications.

Two substitute parts meet these criteria: PC23.07.0100A (Taoglas Limited) and W3502 (Pulse Electronics). Both operate across the required frequency ranges with compatible termination types and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

PC23.07.0100A (Taoglas Limited): This substitute maintains the same manufacturer lineage and flat patch antenna architecture as the original PC24.07.0100A. Both components are ROHS3 compliant and REACH unaffected. The primary difference is the mounting method: PC23.07.0100A uses adhesive mounting versus the chassis mount of the original. This substitute is currently in active production status, ensuring long-term availability and supply chain stability. The identical frequency range, termination type, and maximum height make this the most direct replacement for applications where adhesive mounting is acceptable.

W3502 (Pulse Electronics): This substitute operates across the same frequency range with compatible U.FL (UMCC) and IPEX MHF1 termination. The antenna type differs (PCB trace versus flat patch), and the mounting method is surface mount rather than chassis mount. W3502 demonstrates higher gain performance (2dBi and 1dBi versus 0dBi) and a reduced maximum height of 0.50mm. This component is ROHS3 compliant and REACH unaffected. Selection of W3502 is appropriate for applications where PCB trace integration and surface mount assembly are feasible, and where the increased gain characteristics are beneficial or neutral to system performance.

Both substitutes maintain active product status, ensuring current manufacturing support and compliance with contemporary regulatory requirements.

Frequently Asked Questions (FAQ)

Q: Can PC23.07.0100A directly replace PC24.07.0100A in existing designs?

A: PC23.07.0100A operates across the identical frequency range (824MHz to 960MHz, 1.71GHz to 1.99GHz) with the same termination type (U.FL/IPEX MHF1) and electrical performance (0dBi gain, VSWR 2). The primary design consideration is the mounting method: PC23.07.0100A uses adhesive mounting while the original uses chassis mount. If the application accommodates adhesive mounting, this substitute is functionally equivalent.

Q: What are the key differences between the flat patch and PCB trace antenna types?

A: Antenna type affects physical integration and performance characteristics. Flat patch antennas (PC24.07.0100A and PC23.07.0100A) are discrete components with defined form factors. PCB trace antennas (W3502) are integrated directly into the printed circuit board, reducing component height and enabling surface mount assembly. W3502 provides higher gain (2dBi and 1dBi) compared to the 0dBi of the flat patch designs.

Q: Are all three parts compatible with the same connector interface?

A: Yes. All three parts utilize U.FL (UMCC) and IPEX MHF1 termination, ensuring mechanical and electrical compatibility with existing interconnect infrastructure.

Q: What is the significance of the product status difference between the main part and substitutes?

A: PC24.07.0100A is classified as obsolete, indicating discontinued manufacturing. PC23.07.0100A and W3502 are both active products with ongoing manufacturing support, ensuring availability for new designs and system maintenance.

Q: How do the frequency band counts differ between these parts?

A: PC24.07.0100A covers 4 bands (850MHz, 900MHz, 1.8GHz, 1.9GHz). Both PC23.07.0100A and W3502 cover 2 bands (892MHz, 1.9GHz). All three parts operate within the same overall frequency range (824MHz to 960MHz, 1.71GHz to 1.99GHz), maintaining coverage of GSM and PCS standards.

Q: Are there compliance or regulatory differences between these parts?

A: All three parts are ROHS3 compliant and REACH unaffected, meeting current environmental and safety standards. No regulatory barriers exist to substitution.
