P50L-060P-RR4-DA Equivalent & Substitute Parts

Part Overview

The P50L-060P-RR4-DA is a 60-position rectangular connector plug manufactured by 3M, featuring center strip contacts, through-hole mounting, and right-angle orientation. This connector is classified as obsolete, necessitating identification of active equivalent parts for ongoing design and procurement requirements. The connector utilizes gold-plated contacts with flash thickness and board lock features suitable for applications requiring reliable electrical interconnection in a compact form factor.

Substiute Parts

P50L-060P-RR4-DA

3MIn Stock: 991P50L-060P-RR4-DA Datasheet

Current PartRFQ

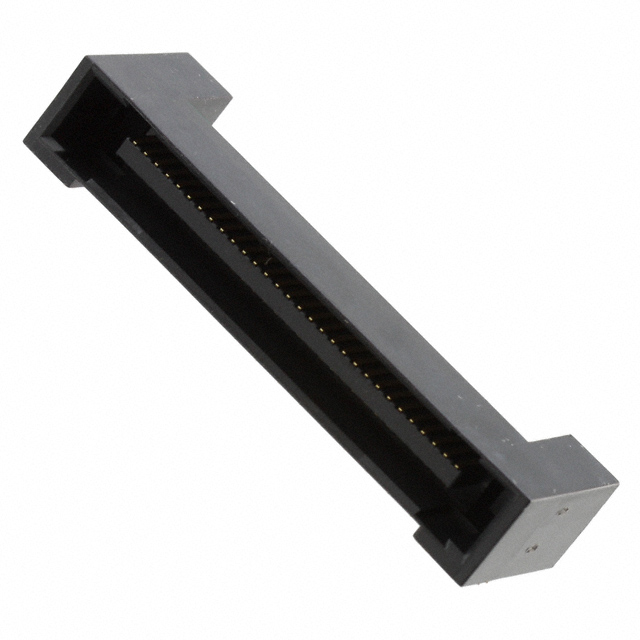

TX25-60P-LT-H1E

JAE ElectronicsIn Stock: 2162TX25-60P-LT-H1E Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The TX25-60P-LT-H1E qualifies as a direct substitute based on the following critical parameters:

• Connector Type: Both parts are plugs with center strip contacts
• Position Count: Both feature 60 positions
• Pitch: Both maintain 0.050" (1.27mm) pitch spacing
• Row Configuration: Both utilize 2-row arrangement
• Mounting Method: Both employ through-hole, right-angle mounting
• Contact Finish: Both use gold plating
• Height Above Board: Both measure 0.354" (9.00mm)
• Board Lock Feature: Both incorporate board lock functionality
• Moisture Sensitivity: Both rated MSL 1 (Unlimited)

The TX25-60P-LT-H1E represents an active product from JAE Electronics with equivalent electrical and mechanical specifications, making it suitable for direct replacement in applications currently utilizing the P50L-060P-RR4-DA.

Parameter Comparison

Engineering Selection Recommendations

The TX25-60P-LT-H1E is the designated substitute for the obsolete P50L-060P-RR4-DA. Selection of the TX25-60P-LT-H1E provides the following advantages:

• Active Product Status: The TX25-60P-LT-H1E maintains active production status, ensuring long-term availability and supply chain continuity
• Regulatory Compliance: The substitute meets ROHS3 and REACH requirements, supporting current environmental and regulatory standards
• Identical Electrical and Mechanical Specifications: All critical parameters match the original part, enabling direct substitution without design modification
• Established Inventory: Current stock availability of 2108 units supports immediate procurement requirements

The contact finish thickness difference (Flash versus 4.00µin) does not affect functional compatibility, as both finishes provide adequate gold plating for electrical contact performance within the specified MSL 1 rating.

Frequently Asked Questions (FAQ)

Q: Can the TX25-60P-LT-H1E be used as a direct replacement for the P50L-060P-RR4-DA?

A: Yes. The TX25-60P-LT-H1E meets all critical electrical and mechanical parameters: 60 positions, 0.050" pitch, 2-row configuration, through-hole right-angle mounting, gold contact finish, and board lock features. No design modifications are required.

Q: What is the difference in contact finish thickness between the two parts?

A: The P50L-060P-RR4-DA uses flash gold plating, while the TX25-60P-LT-H1E specifies 4.00µin (0.100µm) thickness. Both finishes provide equivalent electrical performance for this connector class and MSL 1 application environment.

Q: Does the TX25-60P-LT-H1E meet current regulatory requirements?

A: Yes. The TX25-60P-LT-H1E is ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory standards. The original P50L-060P-RR4-DA regulatory status was not specified in available documentation.

Q: What packaging is available for the TX25-60P-LT-H1E?

A: The TX25-60P-LT-H1E is supplied in tray packaging, compared to the original part's unspecified packaging format.

Q: Are there any height or form factor differences?

A: No. Both connectors maintain identical height above board of 0.354" (9.00mm) and identical right-angle mounting orientation, ensuring compatibility with existing PCB layouts and mechanical assemblies.

Q: What is the export classification for these parts?

A: Both the P50L-060P-RR4-DA and TX25-60P-LT-H1E are classified as EAR99 under ECCN and 8536.69.4040 under HTSUS, with no additional export restrictions.
