P304CCT Equivalent & Substitute Parts

Part Overview

The P304CCT is a 4-position Jones connector plug manufactured by Cinch Connectivity Solutions, designed for blade type power connector applications. This solder eyelet termination connector operates at 250V with a 10A current rating and features a push-pull fastening mechanism with integrated hood and cable clamp. The part is currently active in production status with RoHS compliance certification. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector series, enabling component interchangeability for procurement flexibility and supply chain continuity.

Substiute Parts

P304CCT

Cinch Connectivity SolutionsIn Stock: 760P304CCT Datasheet

Current PartRFQ

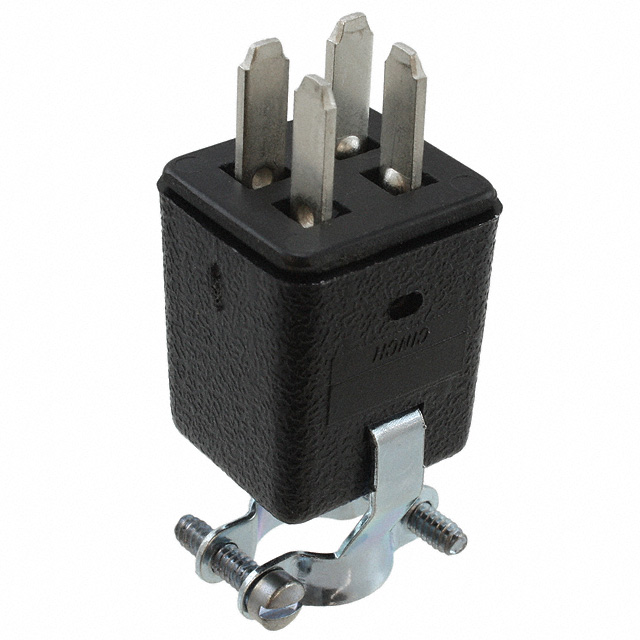

P-304H-CCT

Cinch Connectivity SolutionsIn Stock: 2728P-304H-CCT Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The P304CCT and P-304H-CCT are classified as direct substitutes based on alignment of critical electrical and mechanical parameters. Both connectors share identical specifications for connector type (Plug, Jones), position count (4), mounting configuration (Free Hanging In-Line), row arrangement (2), termination method (Solder Eyelet), voltage rating (250V), current rating (10A), fastening mechanism (Push-Pull), physical features (Hood, Cable Clamp), insulation material (Phenol Formaldehyde), and operating temperature (105°C). Both parts derive from the same base product number P-304 within the 300 series connector family. The substitution relationship is determined by these invariant parameters, which define the connector's form, fit, and functional compatibility within blade type power connector applications.

Parameter Comparison

Engineering Selection Recommendations

Both P304CCT and P-304H-CCT are active production parts suitable for blade type power connector applications requiring 4-position Jones connectors with solder eyelet termination. The P-304H-CCT offers ROHS3 compliance certification, representing a more current regulatory alignment compared to the P304CCT's RoHS compliance designation. The primary distinction between these parts is the contact finish specification: P304CCT uses cadmium finish while P-304H-CCT uses tin finish. Selection between these substitutes should be based on regulatory requirements, environmental compliance mandates, and application-specific contact finish specifications. Both parts maintain identical electrical ratings, mechanical configurations, and operational parameters, ensuring functional interchangeability within the P-304 series connector family.

Frequently Asked Questions (FAQ)

Q: Are P304CCT and P-304H-CCT mechanically compatible? A: Yes. Both connectors share identical mechanical specifications including 4-position configuration, free hanging in-line mounting, 2-row arrangement, push-pull fastening, hood and cable clamp features, and phenolic insulation material. They are mechanically interchangeable within the P-304 series.

Q: What is the difference between these substitute parts? A: The primary difference is the contact finish specification. P304CCT features cadmium contact finish, while P-304H-CCT features tin contact finish. Both maintain identical electrical ratings (250V, 10A) and operating temperature (105°C).

Q: Can I use P-304H-CCT as a replacement for P304CCT? A: Yes, P-304H-CCT is a direct substitute for P304CCT. Both parts are derived from the same base product number P-304 and maintain all critical electrical and mechanical parameters required for blade type power connector applications.

Q: What compliance certifications apply to these parts? A: P304CCT carries RoHS compliance certification. P-304H-CCT carries ROHS3 compliance certification, representing alignment with current regulatory standards. Both parts are classified as EAR99 for export control purposes.

Q: Are there packaging differences between these substitutes? A: Both parts are supplied in bulk packaging format. Inventory availability differs: P304CCT has 722 pieces in stock, while P-304H-CCT has 2625 pieces in stock.

Q: What applications are these connectors suitable for? A: These 4-position Jones connectors with solder eyelet termination are designed for blade type power connector applications operating at 250V with 10A current capacity and maximum operating temperature of 105°C.
