P302CCT Equivalent & Substitute Parts

Part Overview

The P302CCT is a 2-position Jones connector plug manufactured by Cinch Connectivity Solutions, designed for in-line solder applications. This blade type power connector features a push-pull fastening mechanism, hood, and cable clamp for secure cable management. The part is currently active in production with 928 units in stock. Alternative models may be required due to inventory constraints, specific compliance requirements, or contact finish specifications for particular applications.

Substiute Parts

P302CCT

Cinch Connectivity SolutionsIn Stock: 987P302CCT Datasheet

Current PartRFQ

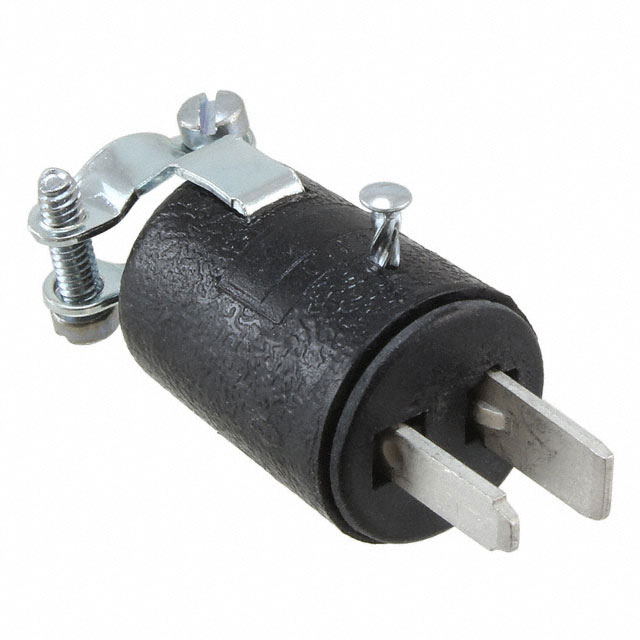

P-302H-CCT

Cinch Connectivity SolutionsIn Stock: 35410P-302H-CCT Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The P-302H-CCT qualifies as a direct substitute for the P302CCT based on the following critical parameters that determine functional compatibility:

• Connector type, style, and Jones configuration
• 2-position plug architecture
• Free hanging in-line mounting
• Solder eyelet termination method
• 250 V voltage rating and 10 A current rating
• 105°C operating temperature capability
• Phenol formaldehyde insulation material
• Push-pull fastening mechanism
• Hood and cable clamp features
• Black color and brass contact material

The primary difference between these parts is the contact finish specification: P302CCT uses cadmium finish, while P-302H-CCT uses tin finish. Both finishes are applied to the same brass contact material and maintain equivalent electrical and mechanical performance within the rated parameters.

Parameter Comparison

Engineering Selection Recommendations

Both P302CCT and P-302H-CCT are active production parts with full RoHS compliance. The P-302H-CCT carries ROHS3 compliance certification and REACH unaffected status, providing enhanced regulatory documentation for applications requiring strict compliance tracking. The P-302H-CCT also maintains significantly higher inventory availability at 35,397 units compared to 928 units for the P302CCT.

The contact finish difference (cadmium versus tin) does not affect the electrical or mechanical performance within the specified operating parameters. Selection between these parts should be based on compliance documentation requirements, inventory availability, and any application-specific contact finish preferences.

Frequently Asked Questions (FAQ)

Q: Can P-302H-CCT replace P302CCT in existing designs? A: Yes. Both parts share identical connector architecture, electrical ratings, mechanical mounting, and termination methods. The only difference is the contact finish specification.

Q: What is the significance of the contact finish difference? A: Contact finish affects corrosion resistance and long-term reliability in specific environmental conditions. Cadmium finish (P302CCT) and tin finish (P-302H-CCT) provide different corrosion protection profiles. Selection depends on application environment and compliance requirements.

Q: Are there compliance differences between these parts? A: Both parts are RoHS compliant. P-302H-CCT carries ROHS3 certification and REACH unaffected status, providing additional regulatory documentation. P302CCT is RoHS compliant without additional certifications listed.

Q: What is the inventory situation for these parts? A: P302CCT has 928 units in stock. P-302H-CCT has 35,397 units in stock, offering significantly higher availability for production requirements.

Q: Are the solder eyelet specifications identical? A: Yes. Both parts use identical solder eyelet termination methods and are suitable for the same PCB assembly processes.

Q: Can these parts be used interchangeably in the same connector assembly? A: Yes. Both parts are 2-position Jones plugs with identical mechanical and electrical specifications, allowing direct interchange in applications where the contact finish difference is not a constraint.
