NKK Switches P2012B Toggle Switch SPDT 10A 125V Equivalent & Substitute Parts

Part Overview

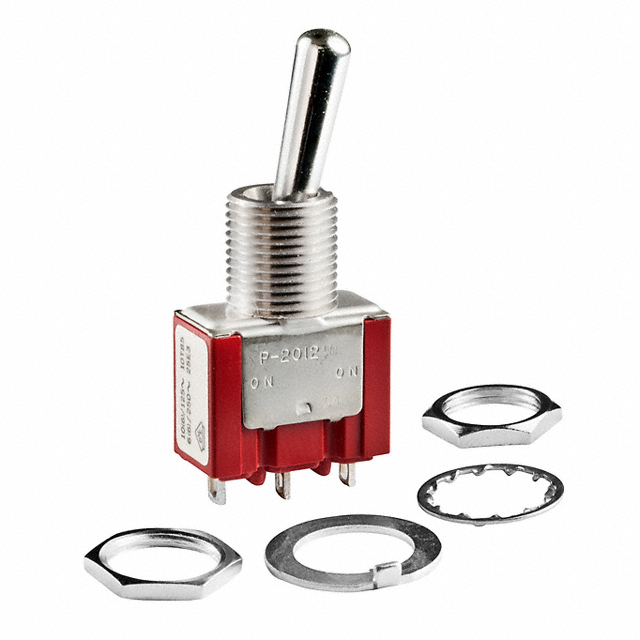

The NKK Switches P2012B is a panel-mount toggle switch with SPDT (Single Pole Double Throw) configuration rated for 10A at 125V AC. This switch features a standard round actuator with 17.50mm length and solder lug termination, designed for on-on switching applications. The product is classified as obsolete, making identification of equivalent and substitute components essential for system maintenance, repair, and redesign applications.

Substiute Parts

P2012B

NKK SwitchesIn Stock: 803P2012B Datasheet

Current PartRFQ

S2A

Diotec SemiconductorIn Stock: 7018S2A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The provided substitute part list identifies S2A as a related component. However, a critical incompatibility exists: S2A is a diode (Diotec Semiconductor, category: Diodes, Rectifiers) with surface mount SMB packaging, while the P2012B is a toggle switch with panel mount configuration and solder lug termination.

The S2A component does not meet the fundamental functional and mechanical requirements for direct substitution of the P2012B. The two components serve entirely different electrical functions (switching versus rectification) and employ incompatible mounting technologies (panel mount with M12 bushing versus surface mount SMB).

Substitution cannot be established based on the provided parameters.

Parameter Comparison

Engineering Selection Recommendations

The P2012B is an obsolete toggle switch component. Identification of true equivalent or substitute parts requires components that satisfy the following criteria:

• SPDT circuit configuration
• 10A AC current rating minimum
• 125V AC voltage rating minimum
• Panel mount mechanical interface
• M12 x 1 bushing thread specification
• Solder lug termination
• Compatible actuator geometry (17.50mm standard round)

The S2A component listed in the provided substitute data does not meet these requirements and cannot be used as a functional replacement.

For applications requiring the P2012B, consult component distributors for equivalent toggle switches from active manufacturers with matching electrical and mechanical specifications, or evaluate circuit redesign to accommodate alternative switching technologies.

Frequently Asked Questions (FAQ)

Q: Can the S2A diode be used in place of the P2012B toggle switch?

A: No. The S2A is a rectifier diode designed for power supply and signal conditioning applications. The P2012B is a mechanical toggle switch for manual circuit control. These components perform fundamentally different functions and are not interchangeable.

Q: What makes two components substitutable?

A: For toggle switches, substitution requires matching circuit configuration (SPDT), current and voltage ratings, mounting type (panel mount), mechanical interface dimensions (M12 x 1 bushing, 12.50mm circular cutout), termination style (solder lug), and actuator specifications. The S2A meets none of these criteria.

Q: Is the P2012B still available?

A: The P2012B is classified as obsolete. Inventory may be available through electronics distributors specializing in legacy components, but new production is not available from NKK Switches.

Q: What should I do if I need to replace a P2012B in an existing design?

A: Identify an active toggle switch from a current manufacturer with equivalent SPDT configuration, 10A/125V AC rating, panel mount interface, and M12 x 1 bushing specification. Verify mechanical fit within the existing panel cutout and electrical compatibility with the circuit design.
