Equivalent & Substitute Parts for P14-6SLF-C

Part Overview

The P14-6SLF-C is a 6 stud spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 14-16 AWG wire. This non-insulated connector features a tin contact finish on copper material with serrated termination for secure wire attachment. The part is classified as obsolete, necessitating identification of active equivalent alternatives that maintain functional compatibility across the same electrical and mechanical specifications.

Substiute Parts

P14-6SLF-C

Panduit CorpIn Stock: 768P14-6SLF-C Datasheet

Current PartRFQ

P14-6LF-C

Panduit CorpIn Stock: 1405P14-6LF-C Datasheet

SimilarRFQ

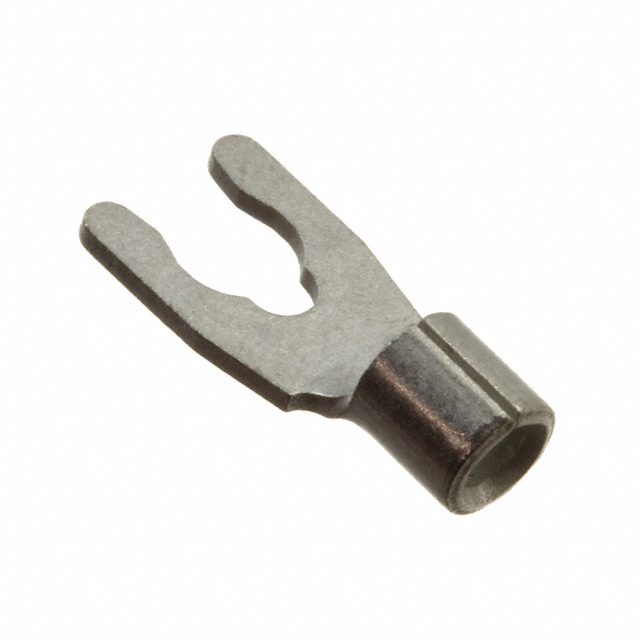

53010-1

TE Connectivity AMP ConnectorsIn Stock: 326553010-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the P14-6SLF-C is determined by strict alignment of the following critical parameters: stud size (6 stud), wire gauge range (14-16 AWG), termination method (crimp), terminal type (spring/snap), outer width (0.250"), mounting configuration (free hanging in-line), insulation status (non-insulated), contact finish (tin), and tongue opening dimension (0.140"). Both identified substitute parts—P14-6LF-C and 53010-1—satisfy these core electrical and mechanical requirements, enabling direct functional replacement in applications requiring 6 stud spade terminal connectors for 14-16 AWG wire.

Parameter Comparison

Engineering Selection Recommendations

P14-6LF-C (Panduit Corp): This substitute maintains manufacturer continuity with the original P14-6SLF-C, both from Panduit Corp's Pan-Term® series. The part is active and ROHS3 compliant. The primary dimensional variance is overall length (0.700" versus 0.510"), which reflects design evolution within the product line. This substitute is suitable for applications where Panduit component standardization is preferred and space constraints do not restrict the increased length.

53010-1 (TE Connectivity AMP Connectors): This substitute from TE Connectivity's Budget series is active and RoHS compliant. The contact material differs (phosphor bronze versus copper), and overall length is 0.576", positioning it dimensionally between the original and the Panduit alternative. This option provides cross-manufacturer compatibility and is suitable for cost-optimized designs where the phosphor bronze contact material meets application requirements.

Both substitutes satisfy the critical electrical and mechanical parameters of the obsolete P14-6SLF-C and are available in active production status with current compliance certifications.

Frequently Asked Questions (FAQ)

Q: What makes P14-6LF-C and 53010-1 suitable substitutes for the obsolete P14-6SLF-C?

A: Both substitutes maintain the core functional specifications: 6 stud size, 14-16 AWG wire gauge compatibility, crimp termination, spring/snap terminal type, 0.250" outer width, free hanging in-line mounting, non-insulated construction, tin contact finish, and 0.140" tongue opening. These parameters define electrical and mechanical compatibility for spade terminal connector applications.

Q: How do the overall lengths differ among these three parts?

A: The P14-6SLF-C measures 0.510" overall length, the 53010-1 measures 0.576", and the P14-6LF-C measures 0.700". Length variation does not affect electrical performance but may impact physical fit in space-constrained assemblies. Verify available mounting space before selection.

Q: What is the difference in contact material between the substitutes?

A: The P14-6SLF-C and P14-6LF-C use copper contact material, while the 53010-1 uses phosphor bronze. Both materials are suitable for tin-plated spade terminal applications and provide equivalent electrical conductivity for 14-16 AWG wire connections.

Q: Are there compliance differences between the substitutes?

A: The P14-6LF-C is ROHS3 compliant, and the 53010-1 is RoHS compliant. Both meet current regulatory requirements. The original P14-6SLF-C lists RoHS status as not applicable due to its obsolete classification.

Q: What packaging options are available for these substitutes?

A: The P14-6LF-C and 53010-1 are supplied in bulk packaging, differing from the original part's packaging specification. Verify bulk packaging compatibility with your procurement and assembly processes.

Q: Can these substitutes be used interchangeably in existing designs?

A: Electrical interchangeability is confirmed across all three parts for 14-16 AWG wire termination on 6 stud connectors. Physical interchangeability depends on available mounting space and tolerance for the dimensional variations in overall length. Mechanical fit verification is required for space-critical applications.
