Equivalent & Substitute Parts for P10-8LF-L

Part Overview

The P10-8LF-L is an 8 stud spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 10-14 AWG wire. This non-insulated copper terminal features a brazed seam and serrated termination, suitable for free-hanging in-line mounting applications. The product is classified as obsolete, necessitating identification of active equivalent and substitute components to maintain design continuity and ensure procurement availability for new and legacy applications.

Substiute Parts

P10-8LF-L

Panduit CorpIn Stock: 1312P10-8LF-L Datasheet

Current PartRFQ

PN10-8LF-L

Panduit CorpIn Stock: 1045PN10-8LF-L Datasheet

MFR RecommendedRFQ

PV10-8LF-L

Panduit CorpIn Stock: 1362PV10-8LF-L Datasheet

MFR RecommendedRFQ

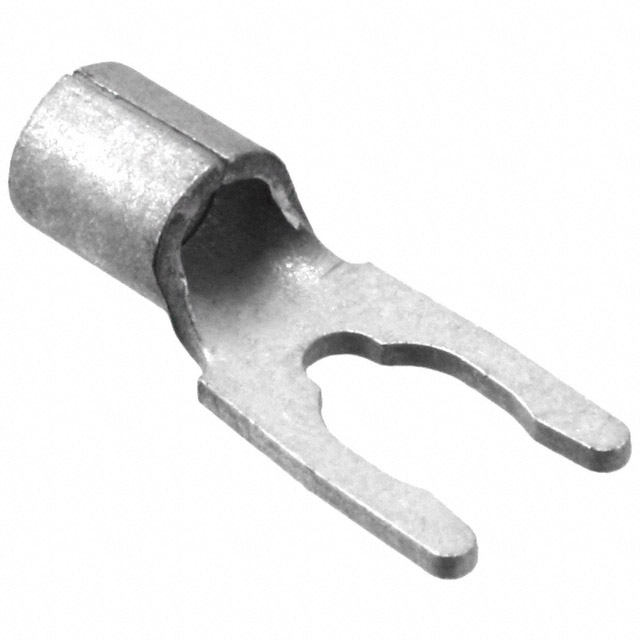

53836-2

TE Connectivity AMP ConnectorsIn Stock: 6564053836-2 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution logic for the P10-8LF-L is based on the following critical parameters: stud size, wire gauge compatibility, termination method, terminal type, and mounting configuration. These parameters determine mechanical and electrical interchangeability within the spade terminal connector category.

MFR Recommended Substitutes (PN10-8LF-L and PV10-8LF-L): These Panduit Corp alternatives maintain the 8 stud size, 0.160" tongue opening, and free-hanging in-line mounting. Both are active products with insulated construction (polyamide and vinyl respectively) and support 10-12 AWG wire gauge. The insulation feature and active product status make these direct functional replacements for the obsolete P10-8LF-L.

Similar Substitute (53836-2): The TE Connectivity AMP Connectors part 53836-2 is a 10 stud spade terminal with 10-12 AWG wire gauge compatibility. While the stud size differs (10 versus 8), this component shares the same termination method, terminal type, mounting configuration, and non-insulated construction. The 10 stud configuration accommodates different fastener sizes and represents a mechanical variant rather than a direct equivalent.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement (Preferred): Select PN10-8LF-L or PV10-8LF-L as primary substitutes for the obsolete P10-8LF-L. Both maintain identical stud size (8), tongue opening (0.160"), and mounting configuration. These active Panduit Corp products are ROHS3 compliant and provide insulated construction, which offers enhanced environmental protection compared to the original non-insulated design. Wire gauge compatibility is 10-12 AWG, which covers the lower range of the original 10-14 AWG specification. The choice between PN10-8LF-L (polyamide insulation) and PV10-8LF-L (vinyl insulation) depends on application temperature and chemical resistance requirements.

For Mechanical Variant Applications: The TE Connectivity 53836-2 serves as an alternative when 10 stud fastener accommodation is required. This component maintains crimp termination, spring-snap terminal type, and free-hanging mounting. The 10 stud size and 0.190" tongue opening represent a larger fastener interface. This part is suitable only when the application design permits 10 stud fasteners and does not require 8 stud compatibility. The phosphor bronze contact material and non-insulated construction differ from the Panduit alternatives.

All recommended substitutes maintain ROHS3 compliance and EAR99 export classification consistent with the original part.

Frequently Asked Questions (FAQ)

Q: Can PN10-8LF-L or PV10-8LF-L be used as direct replacements for P10-8LF-L?

A: Yes. Both parts maintain the critical 8 stud size and 0.160" tongue opening required for mechanical compatibility. The wire gauge range narrows from 10-14 AWG to 10-12 AWG, which is acceptable for applications using 10-12 AWG wire. The insulated construction of these active products provides functional equivalence with improved environmental protection.

Q: What is the difference between PN10-8LF-L and PV10-8LF-L?

A: Both parts are identical in electrical and mechanical specifications. The difference is insulation material: PN10-8LF-L uses polyamide (nylon) insulation, while PV10-8LF-L uses vinyl insulation. Selection depends on application temperature range and chemical exposure requirements specific to the end-use environment.

Q: When should 53836-2 be selected instead of the Panduit alternatives?

A: The TE Connectivity 53836-2 is selected only when the application requires a 10 stud fastener interface. This part is not a direct replacement for P10-8LF-L due to the stud size difference. Use this component only if the circuit board or mating connector is designed for 10 stud terminals.

Q: Does the longer overall length of PN10-8LF-L and PV10-8LF-L affect compatibility?

A: The increased overall length (1.050" versus 0.790") results from the insulation sleeve. This does not affect electrical or mechanical compatibility with 8 stud fasteners. Verify that the application layout accommodates the additional length in the termination area.

Q: Are all recommended substitutes RoHS compliant?

A: Yes. P10-8LF-L, PN10-8LF-L, PV10-8LF-L, and 53836-2 are all ROHS3 compliant. All parts maintain tin contact finish and are suitable for applications requiring RoHS certification.

Q: What is the wire gauge compatibility consideration?

A: The original P10-8LF-L supports 10-14 AWG. The recommended Panduit substitutes (PN10-8LF-L and PV10-8LF-L) support 10-12 AWG. If the application requires 14 AWG termination, the original part specification must be retained or alternative components evaluated. The TE Connectivity 53836-2 also supports 10-12 AWG.

Q: What packaging format is available for each substitute?

A: PN10-8LF-L and PV10-8LF-L are supplied in bulk packaging. The TE Connectivity 53836-2 is supplied in cut tape (CT) packaging. Verify packaging requirements for procurement and assembly processes.
