OX100K Equivalent & Substitute Parts

Part Overview

The OX100K is a 10 Ohm ±10% 1W axial through-hole resistor manufactured by Ohmite, featuring ceramic composition with moisture-resistant and pulse-withstanding characteristics. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing design support and procurement continuity. The OX100K operates across a temperature range of -40°C to 220°C and is suitable for applications requiring ceramic resistor reliability in harsh environments.

Substiute Parts

OX100K

OhmiteIn Stock: 1038OX100K Datasheet

Current PartRFQ

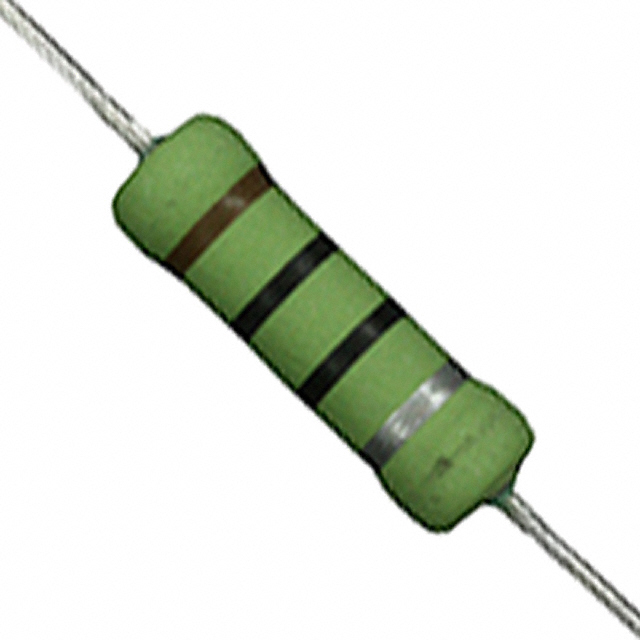

OX100KE

OhmiteIn Stock: 1023OX100KE Datasheet

Parametric EquivalentRFQ

OX100KE

OhmiteIn Stock: 1023OX100KE Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the OX100K is determined by strict equivalence across the following parameters:

• Resistance value: 10 Ohms
• Tolerance: ±10%
• Power rating: 1W
• Composition: Ceramic
• Package configuration: Axial through-hole
• Physical dimensions: 0.217" Dia x 0.650" L (5.50mm x 16.50mm)
• Operating temperature range: -40°C ~ 220°C
• Temperature coefficient: -1000 / -1600 ppm/°C
• Features: Moisture Resistant, Pulse Withstanding

The OX100KE meets all these criteria and is classified as a parametric equivalent. This substitute maintains identical electrical and mechanical specifications while offering improved product status and compliance characteristics.

Parameter Comparison

Engineering Selection Recommendations

The OX100KE is the direct parametric equivalent for the obsolete OX100K. Both components share identical electrical and mechanical specifications, ensuring drop-in compatibility in circuit applications. The OX100KE offers significant advantages for new designs and ongoing procurement:

• Active product status ensures continued availability and manufacturing support
• RoHS compliance aligns with current environmental and regulatory standards
• MSL rating of 1 (Unlimited) provides superior moisture handling characteristics compared to the non-applicable rating of the original part
• Identical dimensional and electrical parameters guarantee functional interchangeability without circuit redesign

For applications currently using OX100K components, transition to OX100KE is supported by full parametric equivalence across all critical specifications.

Frequently Asked Questions (FAQ)

Q: Can OX100KE be used as a direct replacement for OX100K in existing designs?

A: Yes. The OX100KE is a parametric equivalent with identical resistance, tolerance, power rating, composition, package type, dimensions, operating temperature range, and temperature coefficient. No circuit modifications are required.

Q: What is the primary difference between OX100K and OX100KE?

A: The OX100KE is an active product with RoHS compliance and improved moisture sensitivity rating (MSL 1), while the OX100K is obsolete and RoHS non-compliant. Electrical and mechanical performance are identical.

Q: Are the physical dimensions identical between OX100K and OX100KE?

A: Yes. Both components measure 0.217" Dia x 0.650" L (5.50mm x 16.50mm) and use axial through-hole packaging, ensuring identical PCB footprint compatibility.

Q: Does the OX100KE maintain the same operating temperature range?

A: Yes. Both parts operate across -40°C to 220°C with identical temperature coefficients of -1000 / -1600 ppm/°C.

Q: What packaging options are available for OX100KE?

A: The OX100KE is supplied in bulk packaging, consistent with standard axial resistor distribution formats.
