OSTTG0201600 Equivalent & Substitute Parts

Part Overview

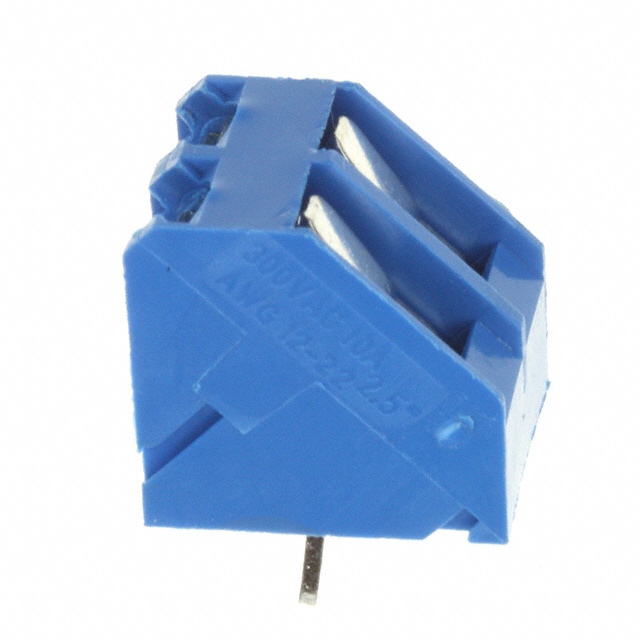

The OSTTG0201600 is a 2-position wire-to-board terminal block manufactured by On Shore Technology Inc., designed for through-hole PCB mounting with a 45° angled orientation. This component features a 5.00mm pitch, screw-rising cage clamp termination, and supports 10A at 300V with wire gauges from 12-22 AWG.

The OSTTG0201600 is classified as obsolete. Identifying suitable substitute parts is necessary to maintain design continuity and ensure component availability for new production runs and field replacements.

Substiute Parts

OSTTG0201600

On Shore Technology Inc.In Stock: 1173OSTTG0201600 Datasheet

Current PartRFQ

OSTTG020160B

On Shore Technology Inc.In Stock: 4656OSTTG020160B Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the OSTTG0201600 is determined by the following critical parameters:

• Pitch and Position Count: Must maintain 0.197" (5.00mm) pitch with 2 positions per level to ensure PCB footprint compatibility
• Mounting Type: Must be through-hole to match existing PCB design
• Wire Termination Method: Must use screw-rising cage clamp termination for mechanical and electrical consistency
• Electrical Ratings: Current and voltage ratings must meet or exceed the original specification (10A, 300V minimum)
• Wire Gauge Compatibility: Must support the wire gauge range required by the application
• Operating Temperature Range: Must cover the thermal operating envelope of -30°C to 105°C
• Regulatory Compliance: Must maintain ROHS3 compliance and REACH unaffected status

The OSTTG020160B qualifies as a direct substitute based on these parameters. While it features an improved current rating (15A versus 10A) and expanded wire gauge support (12-24 AWG versus 12-22 AWG), it maintains all critical compatibility parameters including pitch, position count, mounting type, termination method, voltage rating, temperature range, and regulatory compliance.

Parameter Comparison

Engineering Selection Recommendations

The OSTTG020160B is the qualified substitute for the obsolete OSTTG0201600. Selection of this substitute is supported by the following factors:

• Product Status: The OSTTG020160B maintains active product status with confirmed inventory availability (4617 pcs), ensuring reliable supply for production and field service requirements.
• Regulatory Compliance: Both parts maintain ROHS3 compliance and REACH unaffected status, satisfying current environmental and regulatory requirements.
• Electrical Performance: The OSTTG020160B exceeds the electrical specifications of the original part, providing 15A current capacity against the original 10A requirement and maintaining the 300V voltage rating.
• Mechanical Compatibility: Identical pitch, position count, mounting type, and termination method ensure direct PCB footprint compatibility without design modification.
• Thermal Performance: Matching operating temperature range (-30°C to 105°C) maintains thermal design margins.

Frequently Asked Questions (FAQ)

Q: Can the OSTTG020160B be used as a direct replacement for the OSTTG0201600 without PCB modification?

A: Yes. Both parts share identical pitch (5.00mm), position count (2), mounting type (through-hole), and wire termination method (screw-rising cage clamp). PCB footprints are compatible without design changes.

Q: What is the difference in mating orientation between the two parts?

A: The OSTTG0201600 specifies 45° (135°) angle with board, while the OSTTG020160B is listed as angled. Both are angled terminal blocks suitable for the same application space. Physical verification is recommended if orientation angle is critical to your assembly process.

Q: Does the increased current rating of the OSTTG020160B affect compatibility?

A: No. The 15A rating of the OSTTG020160B exceeds the 10A requirement of the original design, providing additional current capacity margin. This represents an improvement in electrical performance without compromising compatibility.

Q: Are the wire gauge ranges compatible?

A: The OSTTG020160B supports 12-24 AWG, which encompasses the original 12-22 AWG range. The expanded upper limit provides additional flexibility for wire selection without affecting existing designs.

Q: What is the packaging difference between these parts?

A: The OSTTG0201600 packaging is not specified in available data. The OSTTG020160B is supplied in bulk packaging. Confirm packaging requirements with your procurement process.

Q: Are both parts RoHS compliant?

A: Yes. Both the OSTTG0201600 and OSTTG020160B are ROHS3 compliant and REACH unaffected, meeting current environmental regulations.
