OPC11WIDE Equivalent & Substitute Parts

Part Overview

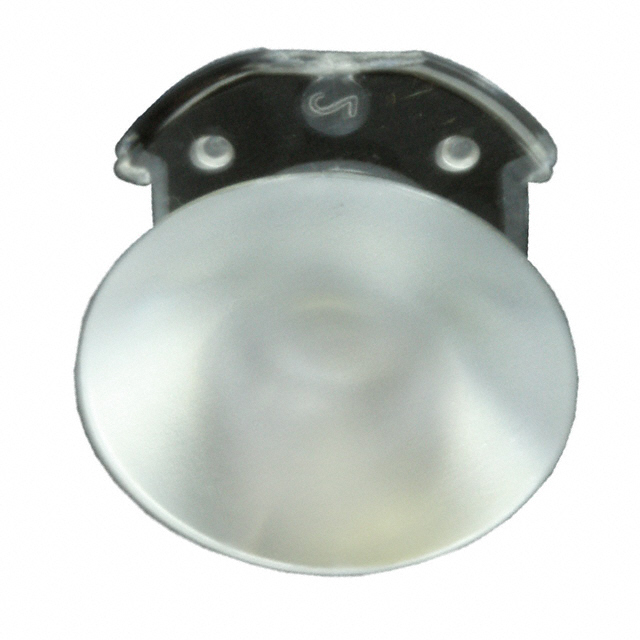

The OPC11WIDE is a lens with integrated mount manufactured by Dialight, designed for LED applications requiring clear optical transmission with a 40° wide viewing angle. This component features adhesive mounting and is constructed from polycarbonate material. The product is currently classified as obsolete, making identification of compatible substitute parts essential for ongoing system support and component procurement.

Substiute Parts

OPC11WIDE

DialightIn Stock: 1162OPC11WIDE Datasheet

Current PartRFQ

OPXC1WIDE

DialightIn Stock: 1054OPXC1WIDE Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution compatibility for the OPC11WIDE is determined by the following critical parameters:

• Mounting Type: Adhesive mounting must be maintained for mechanical compatibility
• Lens Style: Round with flat top geometry ensures physical fit
• Color: Clear optical transmission required
• Optical Pattern: Wide pattern classification for viewing angle consistency
• Material: Polycarbonate construction for optical and environmental properties
• Number of LEDs: Single LED configuration
• Viewing Angle: Optical performance within acceptable range (40° to 42°)

The OPXC1WIDE substitute part satisfies these core substitution criteria while maintaining functional equivalence for LED lens applications.

Parameter Comparison

Engineering Selection Recommendations

The OPXC1WIDE is the designated substitute for the obsolete OPC11WIDE. Selection of this substitute is supported by:

• Product Status: OPXC1WIDE maintains active product status, ensuring ongoing availability and supply chain continuity
• Regulatory Compliance: Both parts maintain identical REACH and ECCN classifications, confirming regulatory equivalence
• Functional Parameters: Matching lens style, color, optical pattern, material composition, and mounting methodology ensure mechanical and optical compatibility
• Viewing Angle Variance: The 2° difference in viewing angle (40° to 42°) falls within acceptable optical performance tolerance for wide-pattern LED lens applications
• Environmental Rating: Identical MSL classification confirms equivalent moisture handling and storage requirements

Frequently Asked Questions (FAQ)

Q: Why is the OPC11WIDE classified as obsolete? A: The OPC11WIDE has reached end-of-life status with Dialight. The OPXC1WIDE provides functional equivalence for new designs and ongoing component replacement.

Q: What is the significance of the 2° viewing angle difference between OPC11WIDE and OPXC1WIDE? A: Both parts are classified as wide optical pattern lenses. The 40° to 42° variance represents a minor optical characteristic difference within the wide-angle category and does not affect mechanical compatibility or primary functional performance in standard LED indicator applications.

Q: Are the lens sizes compatible? A: The OPC11WIDE specifies a 22mm diameter lens. The OPXC1WIDE lens size parameter is not provided in the available data. Physical verification is necessary to confirm dimensional compatibility in space-constrained applications.

Q: Do both parts share the same mounting interface? A: Both parts utilize adhesive mounting with polycarbonate construction and identical MSL ratings, confirming compatible mounting methodology and environmental handling requirements.

Q: What certifications apply to the OPXC1WIDE substitute? A: The OPXC1WIDE carries RoHS3 compliance certification in addition to matching the REACH Unaffected and EAR99 classifications of the original OPC11WIDE.

Q: Is the OPXC1WIDE currently in stock? A: Yes, 994 pieces of OPXC1WIDE are available as new original stock in bulk packaging.
