OPB930W55 Equivalent & Substitute Parts
Part Overview

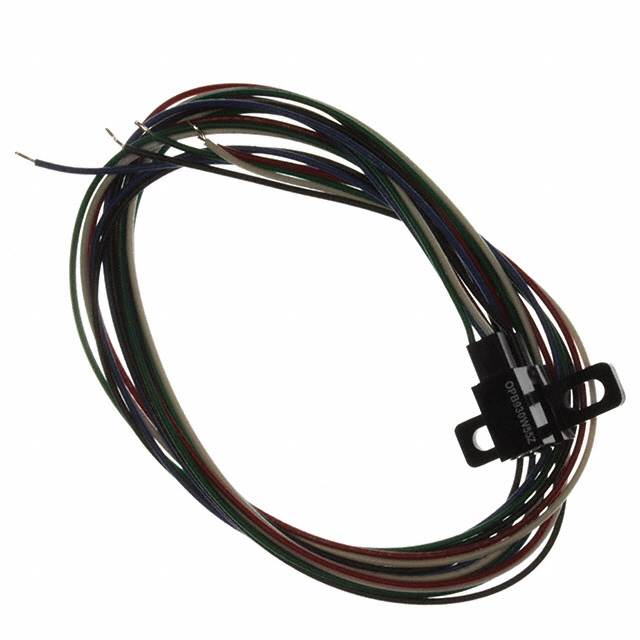

The OPB930W55 is an optical sensor from TT Electronics/Optek Technology's Photologic® series, designed as a through-beam sensor with 0.125" (3.18mm) sensing distance and wire lead module packaging. This part is classified as obsolete, making equivalent and substitute parts necessary for ongoing system support and new designs. The OPB930W55 operates with totem pole buffer output configuration, suitable for chassis mount applications requiring 4.75V to 5.25V supply voltage and 15mA current draw.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer | TT Electronics/Optek Technology |
| Series | Photologic® |
| Category | Optical Sensors |
| Sensing Method | Through-Beam |
| Sensing Distance | 0.125" (3.18mm) |
| Output Configuration | Totem Pole, Buffer |
| Mounting Type | Chassis Mount |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Supply | 15 mA |
| Response Time | 70ns |
| Operating Temperature | -40°C ~ 70°C |
| Package / Case | Module, Wire Leads |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Substitute Part Grouping Explanation
Substitution for the OPB930W55 is determined by strict equivalence across the following parameters: sensing method (through-beam), sensing distance (0.125" / 3.18mm), output configuration (totem pole buffer), mounting type (chassis mount), electrical specifications (4.75V–5.25V supply, 15mA current, 70ns response time), operating temperature range (-40°C to 70°C), package type (module with wire leads), and moisture sensitivity level (MSL 1). All substitute parts listed maintain identical electrical and mechanical characteristics to the original part, with the primary distinction being product status and RoHS compliance. The OPB930W55Z represents the direct equivalent with updated packaging (bag vs. unspecified original packaging) and active product status. The OPB930W51Z, OPB940 series (OPB940W51Z, OPB940W55Z), and OPB980 series (OPB980L11Z, OPB980L51Z, OPB980L55Z, OPB980P11Z, OPB980P51Z, OPB980P55Z) all share identical functional and electrical parameters, differing only in base product designation and packaging format (bulk).
Parameter Comparison
| Part Number | Manufacturer | Product Status | Sensing Distance | Sensing Method | Output Configuration | Voltage - Supply | Current - Supply | Response Time | Operating Temperature | RoHS Status | Packaging | Inventory (Pcs) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPB930W55 | TT Electronics/Optek Technology | Obsolete | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | RoHS non-compliant | Module, Wire Leads | 738 |
| OPB930W55Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bag | 1313 |
| OPB930W51Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 2332 |
| OPB940W51Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 2247 |
| OPB940W55Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 1300 |
| OPB980L11Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 1101 |
| OPB980L51Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 1063 |
| OPB980L55Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 20399 |
| OPB980P11Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 1055 |
| OPB980P51Z | TT Electronics/Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 2412 |
| OPB980P55Z | TT Electronics / Optek Technology | Active | 0.125" (3.18mm) | Through-Beam | Totem Pole, Buffer | 4.75V ~ 5.25V | 15 mA | 70ns | -40°C ~ 70°C | ROHS3 Compliant | Bulk | 995 |
Engineering Selection Recommendations
All listed substitute parts maintain functional and electrical equivalence to the OPB930W55. The primary selection criteria are product status and regulatory compliance. The OPB930W55Z is the direct successor with active product status and ROHS3 compliance, making it the preferred choice for new designs and ongoing support. The OPB930W51Z offers identical specifications with bulk packaging and higher inventory availability (2332 pcs). The OPB940 and OPB980 series variants provide additional options with active status and ROHS3 compliance across multiple packaging configurations. OPB980L55Z offers the highest inventory level (20399 pcs) among all substitutes. All substitute parts are REACH unaffected and carry identical ECCN and HTSUS classifications. Selection between OPB930, OPB940, and OPB980 base series should be based on application-specific requirements and supply chain availability, as all maintain identical electrical and mechanical parameters.
Frequently Asked Questions (FAQ)
Q: Can OPB930W55Z be used as a direct replacement for OPB930W55? A: Yes. OPB930W55Z is the direct equivalent with identical electrical and mechanical specifications. The primary differences are active product status and ROHS3 compliance. Packaging differs (bag vs. unspecified original), but functional performance is equivalent.
Q: What is the difference between OPB930W51Z and OPB930W55Z? A: Both parts share identical electrical and mechanical specifications. The difference is packaging format: OPB930W51Z uses bulk packaging while OPB930W55Z uses bag packaging. Inventory availability also differs (2332 pcs vs. 1313 pcs respectively).
Q: Are OPB940 and OPB980 series parts compatible with OPB930W55 applications? A: Yes. OPB940W51Z, OPB940W55Z, OPB980L11Z, OPB980L51Z, OPB980L55Z, OPB980P11Z, OPB980P51Z, and OPB980P55Z all maintain identical sensing distance, output configuration, electrical specifications, response time, and operating temperature range. All are functionally equivalent for through-beam optical sensing applications requiring 0.125" (3.18mm) sensing distance.
Q: Does packaging format affect electrical performance? A: No. Packaging format (bag, bulk, or unspecified) does not affect electrical or mechanical performance. Selection should be based on procurement requirements and inventory availability.
Q: Are all substitute parts ROHS3 compliant? A: All listed substitute parts carry ROHS3 compliance status. The original OPB930W55 is RoHS non-compliant. This compliance upgrade is a key advantage of substitution for new designs and regulated applications.
Q: Which substitute part has the highest inventory availability? A: OPB980L55Z offers the highest inventory level at 20399 pcs, followed by OPB930W51Z at 2332 pcs and OPB980P51Z at 2412 pcs.
