OPB718 Equivalent & Substitute Parts

Part Overview

The OPB718 is a reflective optical sensor manufactured by TT Electronics/Optek Technology, designed for detecting objects at a sensing distance of 0.500" (12.70mm) using infrared light. This component features NPN open collector output with dark-ON configuration and is optimized for Kodak® Paper sensing applications in the Photologic® series.

The OPB718 is classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing production or maintenance requirements for systems utilizing this sensor.

Substiute Parts

OPB718

TT Electronics/Optek TechnologyIn Stock: 1174OPB718 Datasheet

Current PartRFQ

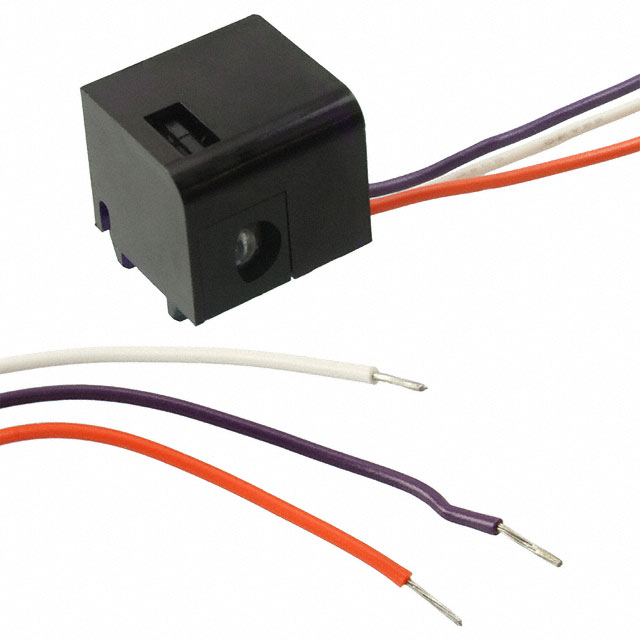

OPB718Z

TT Electronics/Optek TechnologyIn Stock: 1341OPB718Z Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the OPB718 are identified based on strict equivalence across the following critical parameters:

• Sensing Distance: 0.500" (12.70mm)
• Sensing Method: Reflective
• Sensing Object: Kodak® Paper
• Output Configuration: NPN - Open Collector/Dark-ON
• Sensing Light: Infrared
• Voltage Supply Range: 4.75V ~ 5.25V
• Mounting Type: Chassis Mount
• Package Type: Module

The OPB718Z is identified as a direct substitute, maintaining identical electrical and mechanical specifications while differing in product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The OPB718Z is the direct substitute for the OPB718. Both components share identical electrical and mechanical specifications, ensuring functional equivalence in reflective optical sensing applications.

The primary distinction between these parts is product lifecycle status and regulatory compliance. The OPB718 is obsolete, while the OPB718Z maintains active product status. Additionally, the OPB718Z achieves ROHS3 compliance, whereas the OPB718 is RoHS non-compliant. For new designs or systems requiring regulatory compliance with current environmental standards, the OPB718Z is the appropriate selection. For legacy system maintenance where component specifications are the sole requirement, either part satisfies the functional requirements.

Frequently Asked Questions (FAQ)

Q: Can the OPB718Z directly replace the OPB718 in existing designs?

A: Yes. The OPB718Z maintains identical sensing distance, output configuration, voltage supply range, and mounting specifications. No circuit modifications are required for functional substitution.

Q: What is the difference between OPB718 and OPB718Z?

A: The OPB718Z is the active production variant of the OPB718. Both share identical electrical and mechanical parameters. The OPB718Z is ROHS3 compliant and available in bulk packaging, while the OPB718 is obsolete and RoHS non-compliant.

Q: Are there any compatibility concerns when substituting OPB718Z for OPB718?

A: No compatibility concerns exist. Both components are Photologic® series reflective optical sensors with identical sensing distance, output configuration, and supply voltage specifications. Mechanical mounting and electrical interface requirements are equivalent.

Q: What packaging options are available for these parts?

A: The OPB718Z is supplied in bulk packaging. The OPB718 packaging specification is not detailed in available documentation.

Q: Which part should be selected for new designs?

A: The OPB718Z should be selected for new designs. It maintains active product status and meets current ROHS3 compliance requirements, ensuring long-term supply availability and regulatory alignment.
