OD-880WHT Infrared Emitter - Equivalent & Substitute Parts

Part Overview

The OD-880WHT is an infrared (IR) emitter manufactured by Opto Diode Corp, designed for applications requiring 880nm wavelength emission at 100mA forward current. This component features a TO-46-2 metal can package with a 80° viewing angle and operates across a temperature range of -65°C to 150°C.

The OD-880WHT is classified as obsolete. Identifying suitable substitute components is necessary for design continuity, procurement planning, and system integration in applications where this emitter is currently specified.

Substiute Parts

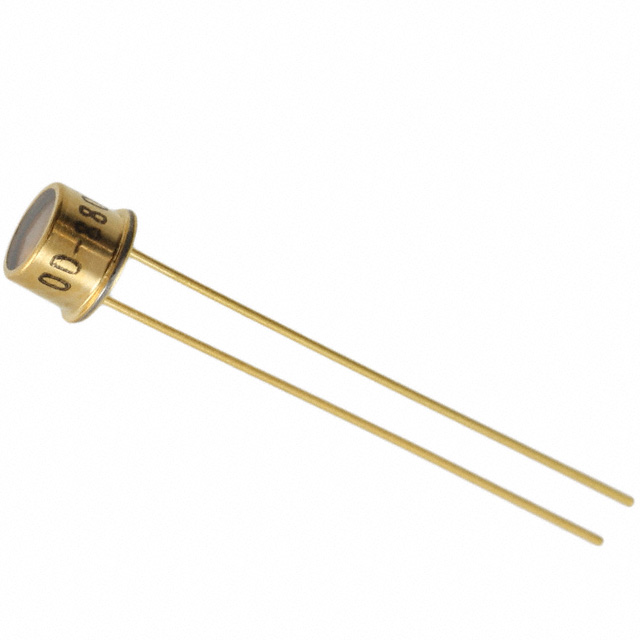

OD-880WHT

Opto Diode CorpIn Stock: 762OD-880WHT Datasheet

Current PartRFQ

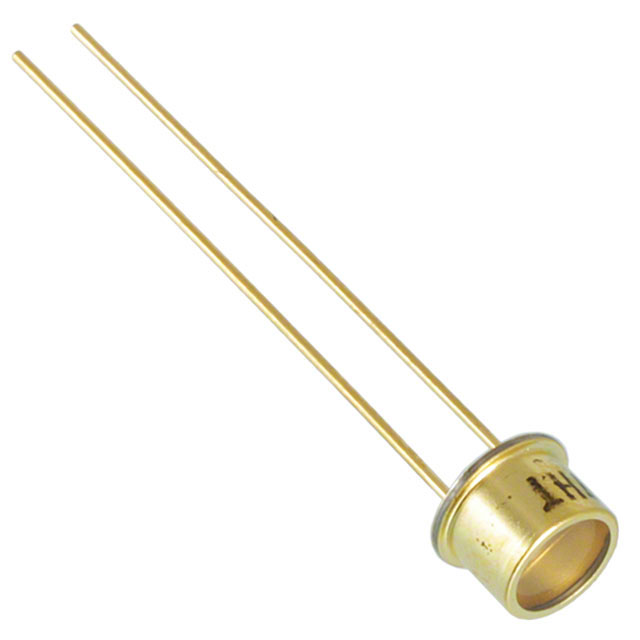

OD-850WHT

Opto Diode CorpIn Stock: 13492OD-850WHT Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the OD-880WHT is evaluated based on the following critical parameters that define functional compatibility:

Primary Compatibility Criteria:

• Package Type: Both main and substitute parts must use TO-46-2 metal can through-hole mounting to ensure mechanical and thermal compatibility
• Maximum Forward Current (If): Substitute parts must support the same 100mA maximum current rating
• Operating Temperature Range: Substitute parts must maintain the -65°C to 150°C operating window
• Wavelength: While the OD-880WHT operates at 880nm, substitute parts may operate at adjacent wavelengths within the near-infrared spectrum if the application permits wavelength variation

Secondary Considerations:

• Forward voltage (Vf) variations are acceptable within typical circuit design tolerances
• Viewing angle differences are acceptable provided the substitute part's angle meets or exceeds application requirements
• Product status (active vs. obsolete) affects long-term availability and supply chain planning

The OD-850WHT qualifies as a substitute based on matching package type, forward current rating, and operating temperature range, despite operating at a different wavelength (850nm vs. 880nm).

Parameter Comparison

Engineering Selection Recommendations

OD-850WHT as Substitute for OD-880WHT:

The OD-850WHT is an active product with current manufacturing support, addressing the obsolescence status of the OD-880WHT. Both components share identical maximum forward current (100mA), operating temperature range (-65°C to 150°C), and through-hole TO-46-2 package configuration.

The primary difference is wavelength: OD-850WHT operates at 850nm compared to the OD-880WHT's 880nm. This 30nm difference falls within the near-infrared spectrum and is suitable for applications where wavelength-specific performance is not a critical design constraint.

The OD-850WHT provides a wider viewing angle (160° vs. 80°), which may be advantageous for applications requiring broader light distribution. Forward voltage is nominally equivalent (1.6V vs. 1.55V), representing a negligible difference in circuit operation.

Both components carry identical ECCN (EAR99) and HTSUS classifications, and both maintain MSL 1 (Unlimited) moisture sensitivity ratings. The OD-850WHT's RoHS Compliant status provides additional regulatory alignment for modern manufacturing environments.

Frequently Asked Questions (FAQ)

Q: Can the OD-850WHT directly replace the OD-880WHT in existing designs?

A: Direct replacement is possible from a mechanical and electrical standpoint. Both components use identical TO-46-2 through-hole packages, support 100mA forward current, and operate across -65°C to 150°C. However, the 30nm wavelength difference (850nm vs. 880nm) must be evaluated against application-specific requirements. Applications sensitive to wavelength performance should conduct functional testing.

Q: What is the significance of the viewing angle difference between these parts?

A: The OD-880WHT provides an 80° viewing angle, while the OD-850WHT provides 160°. A wider viewing angle results in broader light distribution but lower peak intensity in the forward direction. Applications requiring narrow-beam emission may experience performance changes with the substitute part.

Q: Why is the OD-880WHT classified as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. The OD-850WHT, classified as active, represents the current product line alternative from Opto Diode Corp for near-infrared emitter applications in the 100mA TO-46-2 package category.

Q: Are there compliance or regulatory differences between these parts?

A: Both components share identical ECCN (EAR99) and HTSUS classifications. The OD-850WHT carries RoHS Compliant certification, which may be required for certain manufacturing environments. Both maintain MSL 1 (Unlimited) moisture sensitivity ratings.

Q: What inventory considerations apply to these parts?

A: The OD-880WHT has 720 pieces in stock but is obsolete with no future production. The OD-850WHT has 13,473 pieces in stock and is an active product with ongoing availability. For new designs or long-term production planning, the OD-850WHT provides supply chain continuity.

Q: How do forward voltage differences affect circuit design?

A: The OD-850WHT operates at 1.6V typical forward voltage compared to the OD-880WHT's 1.55V. This 0.05V difference is within standard circuit design tolerances and does not require significant modifications to existing driver circuits or current-limiting resistor calculations.
