OD-880W Infrared Emitter - Equivalent & Substitute Parts

Part Overview

The OD-880W is an infrared (IR) emitter operating at 880nm wavelength, designed for through-hole mounting in TO-46-2 metal can packaging. This component delivers 100mA forward current with 16mW/sr radiant intensity and operates across -55°C to 100°C. The OD-880W is classified as obsolete, making identification of compatible substitute components essential for ongoing system support and new design implementations.

Substiute Parts

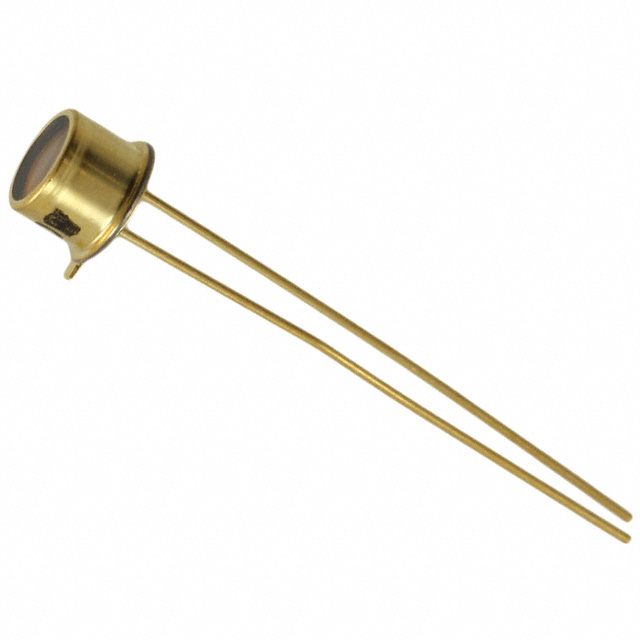

OD-880W

Opto Diode CorpIn Stock: 1058OD-880W Datasheet

Current PartRFQ

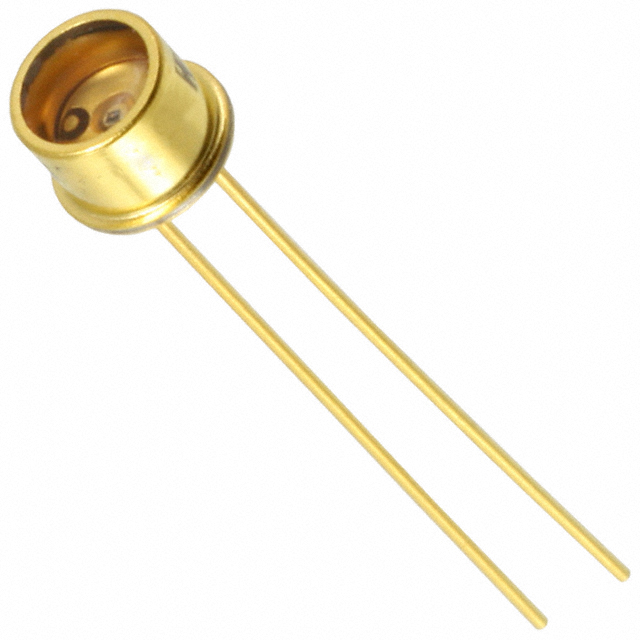

OD-850W

Opto Diode CorpIn Stock: 24509OD-850W Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the OD-880W is determined by the following critical parameters:

Primary Compatibility Criteria:

• Wavelength specification (880nm primary requirement)
• Maximum forward current rating (100mA)
• Package type (TO-46-2 metal can)
• Mounting configuration (through-hole)
• Viewing angle (80°)

Secondary Compatibility Factors:

• Forward voltage tolerance (Vf range)
• Operating temperature range (minimum -55°C requirement)
• Radiant intensity performance
• Moisture sensitivity classification

The OD-850W is identified as a substitute part. While it operates at a different wavelength (850nm instead of 880nm), it maintains electrical and mechanical compatibility across current rating, package type, mounting method, and viewing angle. The wavelength difference represents a functional variation that may be acceptable depending on application-specific spectral requirements.

Parameter Comparison

Engineering Selection Recommendations

OD-880W Status: Obsolete product with 970 units in current inventory.

OD-850W Recommendation: Active product with 24,412 units in inventory. Suitable for applications where 850nm wavelength operation is acceptable. The OD-850W maintains electrical compatibility (100mA current, similar forward voltage) and mechanical compatibility (TO-46-2 package, through-hole mounting, 80° viewing angle). The OD-850W is RoHS Compliant, providing regulatory advantage over the obsolete OD-880W.

Temperature Consideration: The OD-850W operating range (-40°C to 100°C) is narrower than the OD-880W (-55°C to 100°C). Applications requiring operation below -40°C require verification of OD-850W suitability or identification of alternative components.

Packaging Variation: The OD-850W features a lens top configuration compared to the OD-880W metal can design. This optical difference may affect beam characteristics and should be evaluated for specific application requirements.

Frequently Asked Questions (FAQ)

Q: Can the OD-850W directly replace the OD-880W in existing designs?

A: Mechanical and electrical compatibility exists (identical current rating, package type, mounting method, viewing angle). However, the wavelength difference (850nm vs. 880nm) requires application-level verification. Systems designed specifically for 880nm spectral response may require optical or detection circuit adjustments.

Q: What is the forward voltage difference between these parts?

A: The OD-880W specifies 1.55V typical forward voltage; the OD-850W specifies 1.6V typical. The 0.05V variance is within standard component tolerance and does not typically require circuit redesign.

Q: Does the OD-850W lens top configuration affect compatibility?

A: The lens top design on the OD-850W may alter optical beam characteristics compared to the OD-880W metal can design. Physical mounting compatibility remains unchanged (TO-46-2 through-hole package), but optical performance should be validated for applications sensitive to beam profile or intensity distribution.

Q: Are there temperature range limitations with the OD-850W?

A: The OD-850W operates from -40°C to 100°C, compared to the OD-880W range of -55°C to 100°C. Applications requiring operation below -40°C cannot use the OD-850W as a direct substitute without additional thermal management or alternative component selection.

Q: What is the inventory status for these parts?

A: The OD-880W (obsolete) has 970 units available. The OD-850W (active product) has 24,412 units in stock, providing superior long-term availability and supply chain reliability.

Q: Is the OD-850W RoHS compliant?

A: Yes, the OD-850W is RoHS Compliant. The OD-880W RoHS status is not specified in available documentation.
