NTPA7220LBMB0 Equivalent & Substitute Parts

Part Overview

The NTPA7220LBMB0 is an inrush current limiter manufactured by Murata Electronics with a resistance of 22 ohms at ±15% tolerance and a maximum steady-state current rating of 1 A. The component features a 0.276" (7.00mm) diameter with 0.197" (5.00mm) lead spacing. This part is classified as obsolete, making identification of suitable substitute components necessary for ongoing design requirements and procurement planning.

Substiute Parts

NTPA7220LBMB0

Murata ElectronicsIn Stock: 1196NTPA7220LBMB0 Datasheet

Current PartRFQ

B57153S0200M000

EPCOS - TDK ElectronicsIn Stock: 12197B57153S0200M000 Datasheet

MFR RecommendedRFQ

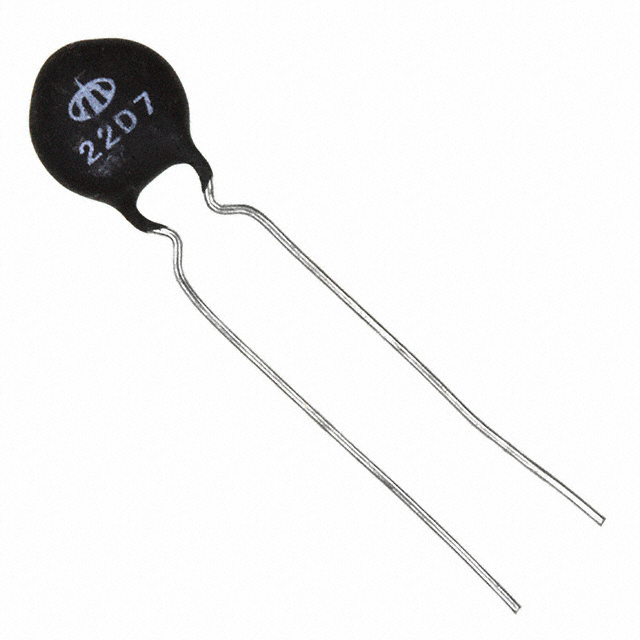

MF72-022D7

CanthermIn Stock: 3547MF72-022D7 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the NTPA7220LBMB0 are evaluated based on the following critical parameters:

• Resistance value within acceptable operating range (22 ohms nominal)
• Tolerance specification (±15% to ±20% acceptable)
• Current rating capability (minimum 600 mA to 1.6 A)
• Lead spacing compatibility (0.197" / 5.00mm standard)
• Product status (active availability preferred)
• Compliance certifications (RoHS3, REACH status)

The two identified substitutes maintain functional equivalence through matching resistance values and lead spacing while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

B57153S0200M000 is suitable for applications where the 20-ohm resistance value and higher current rating (1.6 A) are compatible with circuit requirements. This substitute offers UL approval, ROHS3 compliance, and active product status with substantial inventory availability.

MF72-022D7 maintains the exact 22-ohm resistance value of the original part and provides ROHS3 compliance and REACH compliance. The 600 mA current rating is lower than the original specification and must be evaluated against application requirements. This substitute offers active product status with good inventory availability.

Selection between substitutes depends on circuit current requirements and whether the 20-ohm or 22-ohm resistance value is critical to system performance.

Frequently Asked Questions (FAQ)

Q: Can B57153S0200M000 replace NTPA7220LBMB0 in all applications?

A: B57153S0200M000 shares the same lead spacing (5.00mm) and exceeds the current rating (1.6 A vs. 1 A). The resistance value differs (20 ohms vs. 22 ohms). Substitution is valid only if the circuit design tolerates the 20-ohm value and larger diameter (8.50mm vs. 7.00mm).

Q: What are the physical constraints when substituting?

A: All three parts maintain 0.197" (5.00mm) lead spacing for PCB compatibility. The original part has a 7.00mm diameter, while substitutes have larger diameters (8.50mm and 9.00mm). PCB layout must accommodate the increased component size.

Q: How do tolerance specifications affect substitution?

A: The original part specifies ±15% tolerance, while both substitutes specify ±20% tolerance. This wider tolerance in substitutes may impact circuit performance in applications with tight resistance requirements.

Q: What is the significance of current rating differences?

A: B57153S0200M000 provides higher current capability (1.6 A), suitable for higher-power applications. MF72-022D7 provides lower current capability (600 mA), requiring verification that application steady-state current does not exceed this limit.

Q: Are compliance certifications important for this substitution?

A: Both active substitutes are ROHS3 compliant and REACH unaffected. B57153S0200M000 includes UL approval. Compliance requirements depend on end-application regulatory standards and market requirements.
