NKPLG-C Equivalent & Substitute Parts

Part Overview

The NKPLG-C is an accessory faceplate adapter manufactured by Panduit Corp. This part is classified as obsolete and is no longer in active production. The product carries RoHS Compliant certification. Due to its obsolete status, identification of equivalent substitute components is necessary for system maintenance, repair, and continued operational support where original inventory is depleted or unavailable.

Substiute Parts

NKPLG-C

Panduit CorpIn Stock: 732NKPLG-C Datasheet

Current PartRFQ

MP588-C

Panduit CorpIn Stock: 2628MP588-C Datasheet

SimilarRFQ

SP688-C

Panduit CorpIn Stock: 1514SP688-C Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the NKPLG-C have been identified based on manufacturer alignment (Panduit Corp) and functional category classification within modular connector systems. The substitute components listed below represent active production alternatives from the same manufacturer:

Key Parameters for Substitution Assessment:

• Manufacturer: Panduit Corp
• Connector Type: Modular Connectors
• Termination Method: IDC (Insulation Displacement Connector)
• Contact Configuration: 8-Position, 8-Wire (8p8c/RJ45)
• RoHS Compliance: ROHS3 Compliant
• Contact Material: Phosphor Bronze with Gold Finish

Parameter Comparison

Engineering Selection Recommendations

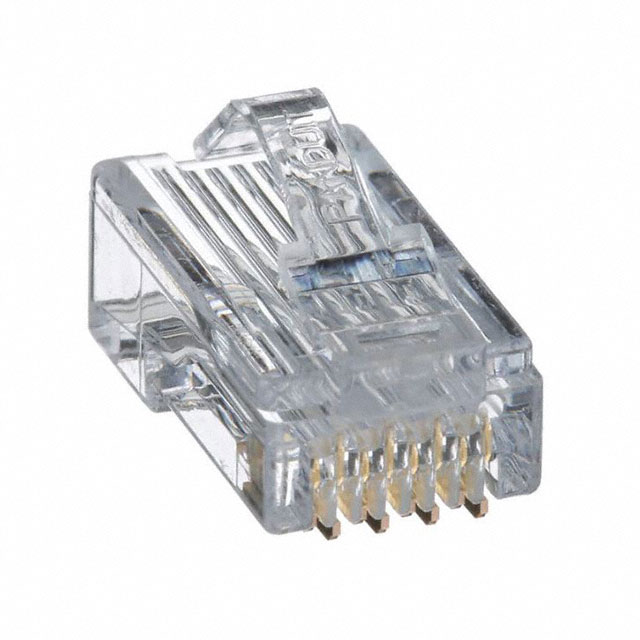

MP588-C Selection Criteria: The MP588-C is an active production modular plug connector rated for Cat5e applications. This substitute is suitable for environments requiring Cat5e performance specifications. The part features snagless design, unshielded configuration, and supports 24-26 AWG wire gauges. ROHS3 compliance and EAR99 export classification align with current regulatory requirements.

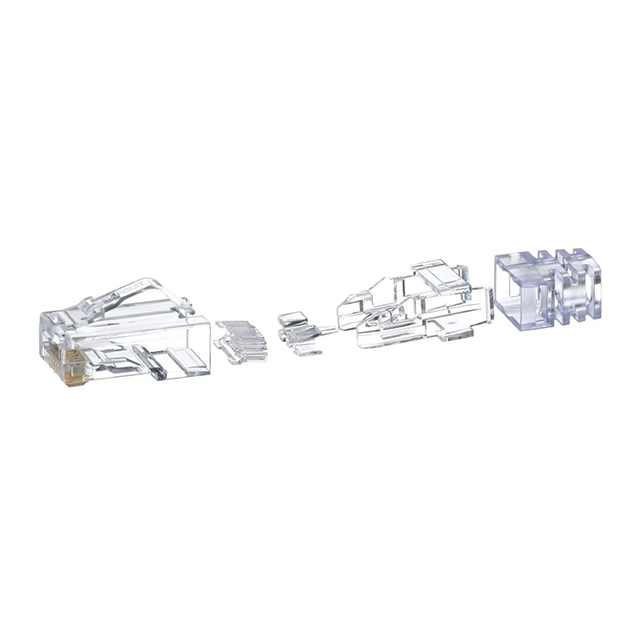

SP688-C Selection Criteria: The SP688-C is an active production modular plug connector rated for Cat6 applications, offering enhanced performance specifications over Cat5e. This substitute includes strain relief features and supports 23-24 AWG wire gauges. ROHS3 compliance and EAR99 export classification align with current regulatory requirements. The increased length (1.600" vs. 0.902") and Cat6 rating provide upgraded capability for higher-bandwidth applications.

Status-Based Recommendation: Both substitute parts carry Active product status, ensuring continued availability, technical support, and supply chain reliability. The NKPLG-C obsolete status necessitates transition to one of these active alternatives for long-term system sustainability.

Frequently Asked Questions (FAQ)

Q: Why is the NKPLG-C listed as obsolete? A: The NKPLG-C has reached end-of-life status in Panduit Corp's product portfolio. Obsolete designation indicates the part is no longer manufactured or supported by the original manufacturer.

Q: What is the primary difference between MP588-C and SP688-C substitutes? A: The primary differences are cable rating (Cat5e vs. Cat6), wire gauge support (24-26 AWG vs. 23-24 AWG), overall length (0.902" vs. 1.600"), and feature set (snagless vs. strain relief). Cat6 rating in SP688-C provides higher bandwidth capability.

Q: Are both substitute parts RoHS compliant? A: Yes. Both MP588-C and SP688-C carry ROHS3 Compliant certification, meeting current environmental and regulatory standards.

Q: Can either substitute be used interchangeably with the NKPLG-C? A: Substitution compatibility depends on the specific application requirements, cable type, and performance specifications of the original system. Both parts share modular connector architecture and IDC termination methodology with Panduit manufacturing standards.

Q: What is the contact finish specification for the substitute parts? A: Both MP588-C and SP688-C feature gold-plated contacts with 19.7µin (0.50µm) thickness, providing corrosion resistance and reliable electrical performance.

Q: Are there inventory considerations for these substitutes? A: Current inventory levels are: MP588-C (2528 Pcs), SP688-C (1468 Pcs), and NKPLG-C (628 Pcs). Both active substitutes maintain higher stock levels than the obsolete original part.

Q: What export classification applies to the substitute parts? A: Both MP588-C and SP688-C are classified under ECCN EAR99, indicating standard commercial encryption items with no specific export restrictions.
