NJM3775D2 Equivalent & Substitute Parts

Part Overview

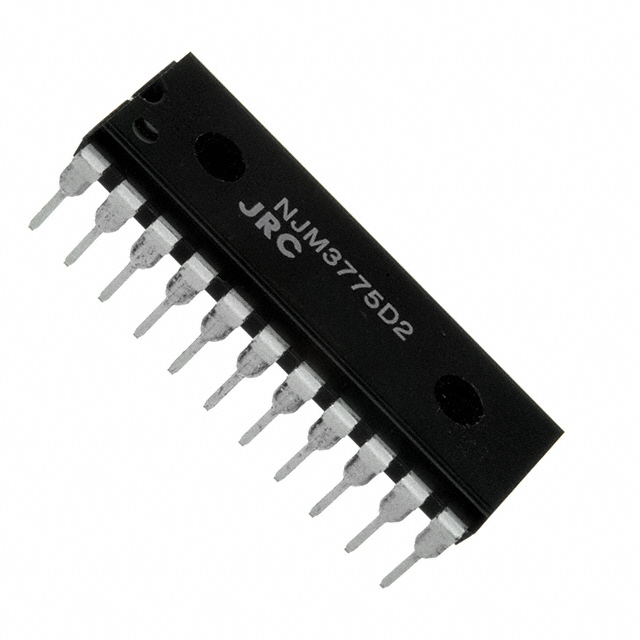

The NJM3775D2 is a bipolar motor driver integrated circuit manufactured by Nisshinbo Micro Devices Inc., designed for stepper motor control applications. This device integrates control and power stage functionality in a 22-DIP through-hole package, operating from a 4.75V to 5.25V supply with load voltage capability from 10V to 40V. The NJM3775D2 is classified as obsolete, necessitating identification of functionally equivalent alternatives for new designs and ongoing production requirements. Substitute components must maintain core driver functionality while accommodating differences in packaging, performance characteristics, and current availability.

Substiute Parts

NJM3775D2

Nisshinbo Micro Devices Inc.In Stock: 2912NJM3775D2 Datasheet

Current PartRFQ

LV8734VL-TLM-H

onsemiIn Stock: 1095LV8734VL-TLM-H Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the NJM3775D2 is based on functional equivalence in core motor driver characteristics. The primary substitution candidate must satisfy the following criteria:

Core Functional Requirements:

• Bipolar stepper motor driver capability
• Fully integrated control and power stage architecture
• Half bridge (4) output configuration
• Parallel interface for control signals
• Step resolution support for 1 and 1/2 stepping modes

Electrical Compatibility Considerations:

• Output current capability of 750mA or greater
• Supply voltage range encompassing or exceeding 4.75V to 5.25V
• Load voltage range encompassing or exceeding 10V to 40V
• Operating temperature range suitable for intended application environment

Physical and Regulatory Factors:

• RoHS compliance status
• REACH compliance status
• Moisture sensitivity level appropriate for assembly and storage conditions

The LV8734VL-TLM-H qualifies as a substitute based on these parameters, though differences in packaging, mounting technology, and extended performance specifications require evaluation for specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The NJM3775D2 is classified as obsolete, indicating discontinued manufacturing and limited availability. The LV8734VL-TLM-H is in active production status, ensuring long-term supply chain viability and technical support availability.

Compliance and Certification: Both components maintain RoHS compliance. The LV8734VL-TLM-H meets ROHS3 standard, representing current regulatory requirements. Both components are REACH unaffected and carry EAR99 ECCN classification.

Functional Equivalence: The LV8734VL-TLM-H maintains core bipolar stepper motor driver functionality with fully integrated control and power stages, half bridge output configuration, and parallel interface architecture. The substitute supports extended step resolution modes (1/4 and 1/8 stepping) beyond the original specification.

Performance Differences: The LV8734VL-TLM-H provides higher output current capability (1.5A versus 750mA), accommodating higher motor torque requirements. Supply voltage range encompasses the original specification. Load voltage maximum is reduced from 40V to 32V, requiring verification against specific application load voltage requirements.

Packaging and Assembly Implications: The transition from 22-DIP through-hole to 44-LSSOP surface mount packaging requires PCB redesign and assembly process modification. The increased pin count (44 versus 22) provides additional functionality and control flexibility. Moisture sensitivity level increases from MSL 1 to MSL 3, requiring controlled storage and handling procedures.

Temperature Operating Range: The substitute maximum operating temperature is reduced from 125°C (junction) to 85°C (ambient). Applications requiring operation above 85°C ambient temperature require thermal analysis and design verification.

Frequently Asked Questions (FAQ)

Q: Can the LV8734VL-TLM-H directly replace the NJM3775D2 in existing designs?

A: Direct replacement is not possible due to fundamental differences in packaging and mounting technology. The NJM3775D2 uses 22-pin DIP through-hole packaging, while the LV8734VL-TLM-H uses 44-pin LSSOP surface mount packaging. PCB redesign and layout modification are required. Pin-to-pin functional mapping must be established based on detailed datasheets for both components.

Q: What are the critical parameter differences affecting substitution?

A: Load voltage maximum differs significantly: the NJM3775D2 supports 10V to 40V, while the LV8734VL-TLM-H supports 9V to 32V. Applications requiring load voltages above 32V cannot use the substitute. Operating temperature maximum is reduced from 125°C (junction) to 85°C (ambient). Output current capability increases from 750mA to 1.5A, which is generally advantageous but requires verification that PCB trace sizing and thermal management are adequate.

Q: Are there supply chain advantages to using the LV8734VL-TLM-H?

A: Yes. The LV8734VL-TLM-H is in active production status with 1077 units in current inventory, compared to the obsolete NJM3775D2 with limited remaining stock. Active production status ensures long-term availability and technical support from the manufacturer (onsemi).

Q: What moisture sensitivity considerations apply to the substitute?

A: The NJM3775D2 carries MSL 1 (unlimited moisture sensitivity level), requiring no special storage conditions. The LV8734VL-TLM-H carries MSL 3 (168 hours), requiring controlled humidity storage and handling procedures. Components must be stored in dry conditions and used within 168 hours of exposure to ambient humidity after packaging removal.

Q: Does the substitute support the same stepping resolutions?

A: The NJM3775D2 supports 1 and 1/2 stepping resolutions. The LV8734VL-TLM-H supports 1, 1/2, 1/4, and 1/8 stepping resolutions. The substitute provides extended resolution capability, which is backward compatible with applications using only 1 and 1/2 stepping modes.

Q: What technology differences exist between these components?

A: The NJM3775D2 uses bipolar process technology, while the LV8734VL-TLM-H uses BiCDMOS (bipolar-CMOS) process technology. BiCDMOS provides improved power efficiency and integration density, contributing to the higher pin count and extended functionality of the substitute.

Q: Are both components RoHS compliant?

A: Yes. The NJM3775D2 is RoHS compliant. The LV8734VL-TLM-H is ROHS3 compliant, meeting current regulatory standards. Both components are REACH unaffected.
