NJM3773D2 Equivalent & Substitute Parts

Part Overview

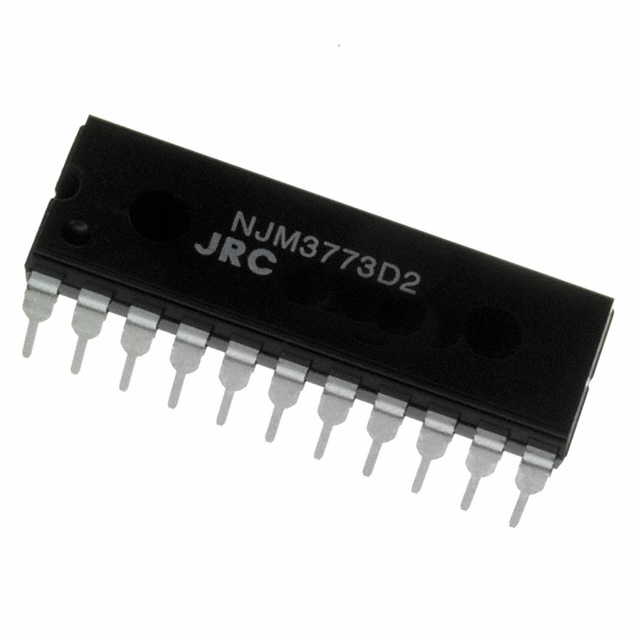

The NJM3773D2 is a bipolar motor driver integrated circuit manufactured by Nisshinbo Micro Devices Inc., designed for stepper motor control applications. This device integrates control and power stage functionality in a 22-DIP through-hole package, operating from a 4.75V to 5.25V supply with load voltage capability from 10V to 40V. The NJM3773D2 is classified as obsolete, necessitating identification of active substitute components for new designs and ongoing production requirements. Equivalent parts must maintain functional compatibility across motor driver topology, output configuration, and interface characteristics while accommodating modern packaging and supply chain availability.

Substiute Parts

NJM3773D2

Nisshinbo Micro Devices Inc.In Stock: 3585NJM3773D2 Datasheet

Current PartRFQ

LV8734VL-TLM-H

onsemiIn Stock: 1095LV8734VL-TLM-H Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the NJM3773D2 is determined by the following critical parameters that define functional equivalence:

Motor Driver Topology: Both the main part and substitute must support bipolar stepper motor control with fully integrated control and power stage architecture.

Output Configuration: Half-bridge (4) output topology is required to maintain electrical compatibility with existing motor winding configurations.

Interface Type: Parallel interface compatibility ensures control signal compatibility with host microcontroller or logic circuits.

Output Current Capability: The substitute must meet or exceed the 750mA output current specification to support equivalent motor torque and performance characteristics.

Supply Voltage Range: The substitute must operate within or encompass the 4.75V to 5.25V supply voltage window, or provide compatible operation through voltage regulation in the application circuit.

Load Voltage Range: The substitute must support the 10V to 40V load voltage range required by stepper motor applications.

Regulatory Compliance: RoHS compliance status ensures compatibility with modern manufacturing and procurement standards.

The LV8734VL-TLM-H qualifies as a functional substitute based on these parameters, despite differences in packaging, technology platform, and extended feature set.

Parameter Comparison

Engineering Selection Recommendations

Product Status Consideration: The NJM3773D2 is classified as obsolete, indicating discontinued manufacturing and limited long-term availability. The LV8734VL-TLM-H is in active production status, ensuring supply chain continuity and long-term component availability for new designs and production runs.

Regulatory Compliance: Both components maintain RoHS compliance. The LV8734VL-TLM-H achieves ROHS3 compliance, meeting current regulatory requirements for electronic component manufacturing and distribution.

Functional Equivalence: The LV8734VL-TLM-H maintains core functional equivalence as a bipolar stepper motor driver with fully integrated control and power stage, half-bridge output configuration, and parallel interface. These characteristics enable direct functional substitution in applications designed for the NJM3773D2.

Design Integration Factors: Substitution of the LV8734VL-TLM-H requires PCB redesign due to packaging differences (surface mount 44-LSSOP versus through-hole 22-DIP). The increased pin count (44 pins versus 22 pins) provides extended functionality including higher step resolution capability (1/4 and 1/8 steps) and higher output current (1.5A versus 750mA).

Operating Temperature Range: The LV8734VL-TLM-H specifies a maximum ambient temperature of 85°C, compared to the NJM3773D2 junction temperature maximum of 125°C. Applications requiring operation above 85°C ambient temperature require thermal analysis to confirm junction temperature compliance.

Load Voltage Consideration: The LV8734VL-TLM-H load voltage range (9V to 32V) does not fully encompass the NJM3773D2 specification (10V to 40V). Applications requiring load voltages above 32V require alternative component selection or external voltage regulation.

Frequently Asked Questions (FAQ)

Q: Can the LV8734VL-TLM-H directly replace the NJM3773D2 in existing PCB designs?

A: Direct pin-for-pin replacement is not possible due to different package types (22-DIP through-hole versus 44-LSSOP surface mount) and pin count differences (22 pins versus 44 pins). PCB redesign is required for substitution.

Q: What are the key functional compatibility criteria for bipolar stepper motor driver substitution?

A: Functional compatibility requires equivalent motor driver topology (bipolar), output configuration (half-bridge with 4 outputs), interface type (parallel), and output current capability meeting or exceeding the original specification. Supply voltage range and load voltage range must support the application requirements.

Q: Does the LV8734VL-TLM-H support the same step resolution as the NJM3773D2?

A: The LV8734VL-TLM-H supports step resolutions of 1, 1/2, 1/4, and 1/8, which includes and extends beyond the NJM3773D2 capability of 1 and 1/2 step resolution. Applications using 1 or 1/2 step resolution are fully compatible.

Q: What is the significance of the higher output current rating of the LV8734VL-TLM-H?

A: The LV8734VL-TLM-H provides 1.5A output current compared to the NJM3773D2 specification of 750mA. This increased current capability supports higher torque stepper motors or multiple motor configurations within the same driver output stage.

Q: Are there load voltage limitations when substituting with the LV8734VL-TLM-H?

A: The LV8734VL-TLM-H specifies a maximum load voltage of 32V, compared to the NJM3773D2 maximum of 40V. Applications requiring load voltages above 32V cannot use the LV8734VL-TLM-H without external voltage regulation or alternative component selection.

Q: What packaging considerations apply to substitution?

A: The NJM3773D2 uses through-hole 22-DIP packaging suitable for breadboard prototyping and legacy PCB designs. The LV8734VL-TLM-H uses surface-mount 44-LSSOP packaging, requiring SMT assembly equipment and PCB redesign. The increased pin count provides access to additional control and diagnostic functions not available on the 22-pin package.

Q: How does the operating temperature range affect component selection?

A: The NJM3773D2 specifies junction temperature operation to 125°C, while the LV8734VL-TLM-H specifies ambient temperature operation to 85°C. Applications operating in high-temperature environments require thermal analysis to confirm the LV8734VL-TLM-H junction temperature remains within specification, or alternative component selection for higher temperature operation.

Q: What is the significance of the different supply voltage ranges?

A: The NJM3773D2 operates from 4.75V to 5.25V (narrow 5V window), while the LV8734VL-TLM-H operates from 0V to 5.5V (extended range). The LV8734VL-TLM-H provides greater flexibility for applications with variable supply voltage or lower supply voltage requirements, though the NJM3773D2 narrow range is fully encompassed within the LV8734VL-TLM-H operating window.
