NJM2584D Video Switch IC Equivalent & Substitute Parts

Part Overview

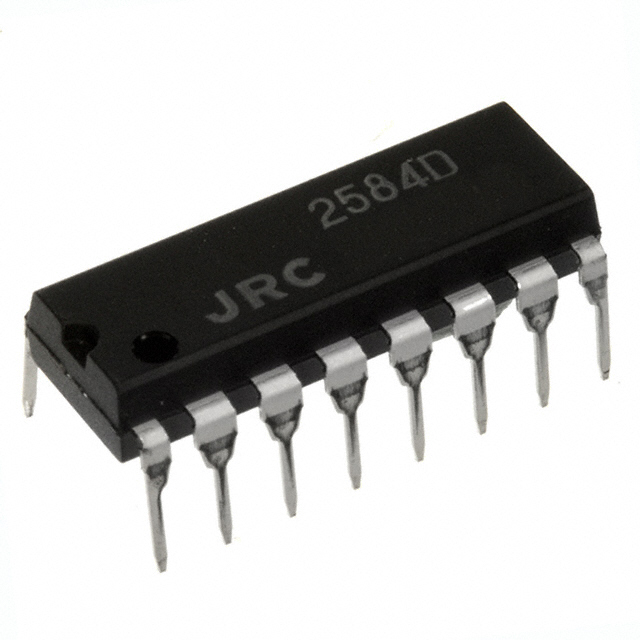

The NJM2584D is a video switch integrated circuit designed for 2-input to 1-output video signal routing applications in consumer video equipment. The device is packaged in a 16-pin DIP (Dual In-line Package) configuration for through-hole mounting on printed circuit boards.

The NJM2584D carries an obsolete product status, indicating that the original manufacturer has discontinued active production and support. Locating equivalent or substitute components becomes necessary for maintenance, repair, and legacy system support where original stock is unavailable or depleted.

Substiute Parts

NJM2584D

Nisshinbo Micro Devices Inc.In Stock: 2415NJM2584D Datasheet

Current PartRFQ

NJM2584D#

Nisshinbo Micro Devices Inc.In Stock: 902NJM2584D# Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the NJM2584D is determined by the following critical parameters:

Functional Equivalence: The substitute part must perform the identical 2-input to 1-output video switching function.

Package Compatibility: The substitute must utilize the 16-DIP package configuration to ensure mechanical and electrical compatibility with existing printed circuit board layouts and through-hole mounting infrastructure.

Manufacturer Consistency: The substitute is sourced from the same manufacturer (Nisshinbo Micro Devices Inc.), ensuring design continuity and performance alignment.

Application Domain: The substitute must be rated for consumer video applications, maintaining the intended operational context.

The NJM2584D# variant meets all substitution criteria and is classified as a direct equivalent with enhanced compliance characteristics.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: NJM2584D#

The NJM2584D# is the direct functional and mechanical equivalent of the obsolete NJM2584D. Both components share identical package geometry, pin configuration, and video switching performance characteristics. The NJM2584D# is currently in active production status, ensuring availability for new designs and replacement applications.

Compliance Advantages: The NJM2584D# provides RoHS compliance and defined moisture sensitivity specifications (MSL 1), addressing modern regulatory requirements and manufacturing process standards. The original NJM2584D does not meet these compliance criteria.

Interchangeability: Pin-for-pin and functional interchangeability is confirmed between the NJM2584D and NJM2584D#. No circuit modifications or board redesign is required for substitution in existing applications.

Availability Consideration: The NJM2584D# is available in active inventory with tube packaging, supporting both prototype and production-volume requirements.

Frequently Asked Questions (FAQ)

Q: Can the NJM2584D# be used as a direct replacement for the NJM2584D in existing designs?

A: Yes. The NJM2584D# is pin-for-pin and functionally equivalent to the NJM2584D. No circuit modifications are required. Both components utilize the 16-DIP package and perform identical 2-input to 1-output video switching functions.

Q: What is the primary difference between the NJM2584D and NJM2584D#?

A: The NJM2584D# is the active production variant with RoHS compliance and defined moisture sensitivity specifications. The original NJM2584D is obsolete and does not meet current RoHS standards. Functionally and mechanically, both parts are equivalent.

Q: Are there any package or mounting differences between these parts?

A: No. Both the NJM2584D and NJM2584D# use the 16-DIP package configuration with through-hole mounting. PCB layouts and mounting procedures remain identical.

Q: What does the "#" designation in NJM2584D# indicate?

A: The "#" suffix indicates a variant designation from the manufacturer, typically denoting a packaging or compliance update. In this case, it represents the active production version with RoHS compliance.

Q: Is the NJM2584D# suitable for new product designs?

A: Yes. The NJM2584D# is in active production status and carries RoHS compliance certification, making it appropriate for new consumer video equipment designs and applications.

Q: What is the moisture sensitivity level (MSL) of the NJM2584D#?

A: The NJM2584D# has an MSL rating of 1 (Unlimited), indicating minimal moisture sensitivity and broad storage and handling flexibility without specialized desiccant packaging requirements.
