MX44004SF1 Equivalent & Substitute Parts

Part Overview

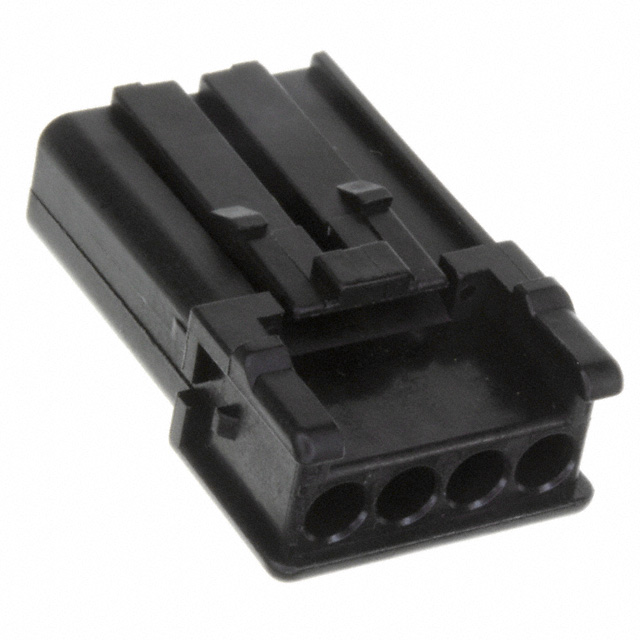

The MX44004SF1 is a 4-position rectangular connector receptacle housing manufactured by JAE Electronics. This component is part of the MX44 series and features a 4.60mm pitch with waterproof design characteristics. The part is currently active in production with full RoHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent functional requirements can be met through alternative manufacturers while maintaining critical electrical and mechanical compatibility within the rectangular connector category.

Substiute Parts

MX44004SF1

JAE ElectronicsIn Stock: 1874MX44004SF1 Datasheet

Current PartRFQ

0009501041

MolexIn Stock: 305370009501041 Datasheet

SimilarRFQ

0026033041

MolexIn Stock: 218180026033041 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MX44004SF1 are identified based on the following critical parameters that determine functional equivalency:

• Connector Type: Receptacle housing (matching contact interface)
• Number of Positions: 4-position configuration
• Mounting Type: Free Hanging (In-Line) orientation
• Category: Rectangular Connectors
• RoHS Compliance: ROHS3 Compliant status
• Moisture Sensitivity Level: MSL 1 (Unlimited)

The identified substitutes (0009501041 and 0026033041) maintain these core parameters. However, pitch specifications differ between the main part (4.60mm) and substitutes (3.96mm), representing a mechanical variation that affects physical interchangeability. Contact type variations (Female Socket vs. Non-Gendered) and fastening type differences (Locking Ramp vs. alternative or unspecified) are also present in the substitute options.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain active product status and ROHS3 compliance with MSL 1 rating. The MX44004SF1 operates across -40°C to 125°C, while substitute 0009501041 operates to 105°C maximum. Operating temperature range differences may impact suitability in high-temperature applications. The pitch differential (4.60mm vs. 3.96mm) represents a significant mechanical variation that affects connector footprint and mating interface geometry. Contact type and fastening mechanism variations require verification against specific application requirements and existing connector infrastructure.

Frequently Asked Questions (FAQ)

Q: Can 0009501041 or 0026033041 be used as direct replacements for MX44004SF1?

A: Direct physical interchangeability is limited due to pitch differences (4.60mm vs. 3.96mm). These parts share the same number of positions, mounting type, and compliance certifications but require mechanical redesign of the mating interface.

Q: What are the key differences between the two Molex substitutes?

A: Both Molex parts feature 3.96mm pitch and 4-position configuration. Part 0009501041 specifies Female Socket contact type and Locking Ramp fastening. Part 0026033041 specifies Non-Gendered contact type with unspecified fastening mechanism. Operating temperature range is specified for 0009501041 (-40°C to 105°C) but not provided for 0026033041.

Q: Are all three parts RoHS3 compliant?

A: Yes. MX44004SF1, 0009501041, and 0026033041 all carry ROHS3 Compliant status with MSL 1 (Unlimited) moisture sensitivity rating.

Q: What packaging formats are available?

A: MX44004SF1 is supplied in Tray packaging. Both Molex substitutes (0009501041 and 0026033041) are supplied in Bulk packaging.

Q: How do insulation materials differ between parts?

A: MX44004SF1 uses Polybutylene Terephthalate (PBT) with glass filling. Both Molex substitutes use Polyamide (PA66) Nylon 6/6 insulation material.
