Equivalent & Substitute Parts for MV8005 Red LED T-1 3/4 Through Hole

Part Overview

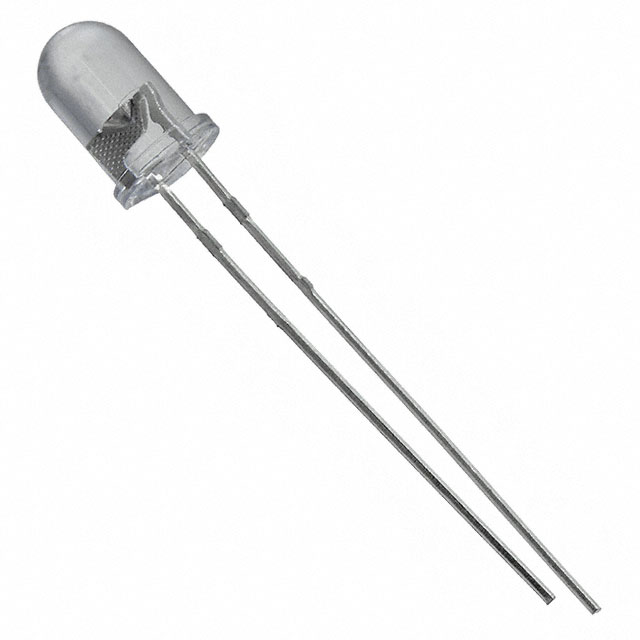

The Everlight MV8005 is an active red LED indication component in T-1 3/4 through-hole packaging, rated at 2400mcd with a 2.1V forward voltage and 20° viewing angle. This discrete radial LED is designed for standard indication applications requiring clear lens optics and red wavelength output at 640nm peak. The component is ROHS3 compliant with unlimited moisture sensitivity rating (MSL 1).

Substitute parts are identified based on matching electrical characteristics, mechanical compatibility, and packaging standards that allow direct circuit board integration without design modification.

Key Parameters

Parameter	MV8005 Specification
Manufacturer	Everlight Electronics Co Ltd
Color	Red
Lens Style	Round with Domed Top
Lens Size	5mm, T-1 3/4
Voltage - Forward (Vf) Typical	2.1V
Current - Test	20mA
Millicandela Rating	2400mcd
Viewing Angle	20°
Wavelength - Peak	640nm
Mounting Type	Through Hole
Package / Case	Radial
Height (Max)	8.89mm
RoHS Status	ROHS3 Compliant
MSL Rating	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the MV8005 are grouped based on the following substitution criteria:

Primary Compatibility Parameters:

Color: Red
Mounting Type: Through Hole
Lens Style: Round with Domed Top
Lens Transparency: Clear
Package Configuration: Radial
Test Current: 20mA
RoHS3 Compliance: Required
MSL Rating: 1 (Unlimited)

Electrical Tolerance Parameters:

Forward Voltage (Vf): 1.9V to 2.2V range
Wavelength - Peak: 623nm to 640nm range
Millicandela Rating: Varies by application requirement

Mechanical Compatibility Parameters:

Lens Size: 5mm diameter or T-1 3/4 equivalent
Height (Max): 8.81mm to 12.62mm (within standard through-hole PCB clearance)
Package / Case: Radial configuration

Substitute parts meeting these criteria maintain electrical and mechanical compatibility with the MV8005 circuit design while allowing selection based on specific brightness, viewing angle, and wavelength requirements.

Parameter Comparison

Part Number	Manufacturer	Vf (Typ)	mcd Rating	Viewing Angle	Peak Wavelength	Height (Max)	Inventory
MV8005	Everlight Electronics	2.1V	2400mcd	20°	640nm	8.89mm	783 Pcs
151053RS03000	Würth Elektronik	1.9V	5000mcd	30°	631nm	8.85mm	3100 Pcs
5219464F	Dialight	2.2V	125mcd	24°	635nm	8.81mm	3435 Pcs
HLMP-EG08-WZ000	Broadcom Limited	1.9V	10750mcd	8°	635nm	8.91mm	1461 Pcs
HLMP-EG08-X1000	Broadcom Limited	1.9V	14100mcd	8°	635nm	8.91mm	13676 Pcs
HLMP-EG08-Y2000	Broadcom Limited	1.9V	18150mcd	8°	635nm	8.91mm	18832 Pcs
HLMP-EG08-YZ000	Broadcom Limited	1.9V	12650mcd	8°	635nm	8.91mm	19205 Pcs
HLMP-EG10-WZ000	Broadcom Limited	1.9V	10750mcd	8°	635nm	12.62mm	18716 Pcs
HLMP-EG15-PS000	Broadcom Limited	1.9V	1690mcd	15°	635nm	8.91mm	13100 Pcs
HLMP-EG15-RU000	Broadcom Limited	1.9V	2850mcd	15°	635nm	8.91mm	18500 Pcs
HLMP-EG15-UX000	Broadcom Limited	1.9V	6250mcd	15°	635nm	8.91mm	3304 Pcs

Engineering Selection Recommendations

Broadcom HLMP-EG15 Series (15° Viewing Angle Group): The HLMP-EG15-UX000, HLMP-EG15-RU000, and HLMP-EG15-PS000 provide the closest viewing angle match to the MV8005 at 15° nominal. These parts operate at 1.9V forward voltage with peak wavelength at 635nm. All three variants are ROHS3 compliant with MSL 1 rating and maintain standard T-1 3/4 through-hole mechanical compatibility. Selection within this group depends on required brightness: HLMP-EG15-UX000 (6250mcd), HLMP-EG15-RU000 (2850mcd), or HLMP-EG15-PS000 (1690mcd).

Broadcom HLMP-EG08 Series (8° Narrow Viewing Angle Group): The HLMP-EG08-WZ000, HLMP-EG08-X1000, HLMP-EG08-Y2000, and HLMP-EG08-YZ000 provide narrow 8° viewing angle with significantly higher brightness ratings (10750mcd to 18150mcd). These are suitable for applications requiring concentrated light output. All maintain 1.9V forward voltage, 635nm peak wavelength, ROHS3 compliance, and MSL 1 rating with standard T-1 3/4 packaging.

Broadcom HLMP-EG10 Series (Extended Height): The HLMP-EG10-WZ000 operates at 1.9V with 10750mcd brightness and 8° viewing angle but features extended height of 12.62mm. This part is suitable only for applications with adequate PCB clearance above the component.

Würth Elektronik 151053RS03000: This part provides 5000mcd brightness with 30° wide viewing angle at 1.9V forward voltage. The WL-TMRW series designation indicates Würth's standard red LED line. Peak wavelength is 631nm with 8.85mm height, maintaining mechanical compatibility.

Dialight 5219464F: This part operates at 2.2V forward voltage (closest to MV8005 at 2.1V) with 125mcd brightness and 24° viewing angle. The 521 series designation indicates Dialight's standard indicator LED line. Height is 8.81mm with 635nm peak wavelength.

All substitute parts listed are active products with ROHS3 compliance and unlimited moisture sensitivity rating, meeting the compliance requirements of the MV8005.

Frequently Asked Questions (FAQ)

Q: Can HLMP-EG08 series parts directly replace MV8005 in existing designs?

A: HLMP-EG08 series parts are mechanically and electrically compatible with MV8005 through-hole PCB footprints. However, the 8° narrow viewing angle differs from MV8005's 20° angle, and brightness is significantly higher (10750mcd to 18150mcd versus 2400mcd). Circuit current-limiting resistor values may require adjustment to maintain consistent brightness perception. Verify application requirements for viewing angle and brightness before substitution.

Q: What is the voltage difference impact between MV8005 (2.1V) and substitute parts at 1.9V?

A: The 0.2V difference between MV8005 (2.1V typical) and most Broadcom substitutes (1.9V typical) represents approximately 9.5% lower forward voltage. In series-resistor-limited circuits, this results in slightly higher LED current at the same supply voltage. For constant-current driver circuits, this difference is transparent. Verify circuit design topology before substitution.

Q: Are all listed substitute parts ROHS3 compliant?

A: Yes. All substitute parts listed meet ROHS3 compliance requirements. MSL rating is 1 (Unlimited) for all parts, matching the MV8005 specification.

Q: What is the mechanical compatibility consideration for HLMP-EG10-WZ000?

A: The HLMP-EG10-WZ000 features 12.62mm maximum height compared to 8.89mm for MV8005. This extended height requires verification of available PCB clearance above the component location. Standard through-hole footprints accommodate this height, but mechanical interference with adjacent components or enclosure features must be confirmed.

Q: How do viewing angles affect circuit performance?

A: Viewing angle determines the cone of light emission. MV8005 at 20° provides moderate directional output. Narrower angles (8° for HLMP-EG08 series) concentrate light in a tighter cone, increasing perceived brightness in the forward direction but reducing visibility at angles. Wider angles (30° for Würth 151053RS03000) distribute light more broadly. Select based on application visibility requirements and observer position.

Q: Can brightness (mcd) differences be compensated in circuit design?

A: Yes. Brightness is controlled by forward current through the LED. Circuit resistor values can be adjusted to maintain consistent brightness perception across different mcd-rated parts. However, maximum rated current (typically 20mA for these parts) must not be exceeded. Consult individual datasheets for absolute maximum ratings.

Q: What wavelength differences exist among substitutes?

A: MV8005 specifies 640nm peak wavelength. Most Broadcom substitutes operate at 635nm, and Würth 151053RS03000 at 631nm. These differences represent approximately 0.8% to 1.4% variation in the red spectrum. Human perception of color difference at these wavelengths is minimal in standard indication applications.

Q: Are all substitute parts available in equivalent packaging quantities?

A: Substitute parts are supplied in bulk packaging. Inventory levels vary: MV8005 (783 Pcs), Würth 151053RS03000 (3100 Pcs), Dialight 5219464F (3435 Pcs), and Broadcom variants (1461 to 19205 Pcs). Verify supplier inventory for required order quantities.
