MV6300AGR LED Yellow Diffused SMD Equivalent & Substitute Parts

Part Overview

The MV6300AGR is an active-status yellow LED indicator manufactured by Everlight Electronics Co Ltd, configured as a 2-SMD surface mount component with gull wing leads. This part is designed for yellow indication applications requiring a 2V forward voltage at 10mA test current with 3mcd luminous intensity and 50° viewing angle. The diffused lens provides uniform light distribution suitable for indicator panel applications.

Substitute parts are necessary when addressing supply chain constraints, design revisions requiring different mounting configurations, or when alternative manufacturers' components meet or exceed the electrical and mechanical specifications of the original design.

Key Parameters

Parameter	MV6300AGR Value	Substitution Relevance
Color	Yellow	Critical - must match
Lens Transparency	Diffused	Critical - affects light distribution
Voltage - Forward (Vf) Typical	2V	Critical - circuit compatibility
Current - Test	10mA	Critical - operating point
Millicandela Rating	3mcd	Important - brightness level
Wavelength - Peak	585nm	Important - color consistency
Viewing Angle	50°	Important - visibility characteristics
Mounting Type	Surface Mount	Critical - PCB assembly compatibility
Package / Case	2-SMD, Gull Wing	Critical - footprint and lead configuration
Lens Size	1.90mm Dia	Important - physical fit
Height (Max)	2.92mm	Important - clearance requirements
RoHS Status	ROHS3 Compliant	Critical - regulatory compliance

Substitute Part Grouping Explanation

Substitution logic for the MV6300AGR is based on the following electrical and mechanical parameters:

Primary Substitution Criteria (Must Match):

Color: Yellow
Lens Transparency: Diffused
Voltage - Forward (Vf): 2V
Current - Test: 10mA
Mounting Type: Surface Mount
Package / Case: 2-SMD, Gull Wing
RoHS Status: ROHS3 Compliant

Secondary Substitution Criteria (Allowable Variation):

Millicandela Rating: Substitute may exceed original (higher brightness acceptable)
Viewing Angle: Substitute may exceed original (wider viewing angle acceptable)
Wavelength - Peak: Must remain within yellow spectrum (583-585nm acceptable)
Lens Size: Minor variation acceptable (1.78-1.91mm Dia)
Height: Must not exceed 2.92mm maximum

Identified Substitute Parts:

HLMP-6400-F0011 (Broadcom Limited) - Direct equivalent with identical mounting configuration
HLMP-6400-F0021 (Broadcom Limited) - Surface mount alternative with yoke bend lead configuration
HLMP-6400 (Broadcom Limited) - Through-hole axial configuration (mounting type differs)
HLMP-6400-F0010 (Broadcom Limited) - Through-hole right-angle configuration (mounting type differs)
HLMP-6720-F0010 (Broadcom Limited) - 5V rated alternative (voltage differs)
HLMP-7019-D0011 (Broadcom Limited) - Low-brightness alternative (current and brightness differ)

Parameter Comparison

Parameter	MV6300AGR	HLMP-6400-F0011	HLMP-6400-F0021	HLMP-6400	HLMP-6400-F0010	HLMP-6720-F0010	HLMP-7019-D0011
Manufacturer	Everlight	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom	Broadcom
Color	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow	Yellow
Lens Transparency	Diffused	Diffused	Diffused	Diffused	Diffused, Tinted	Diffused	Diffused
Voltage - Forward (Vf) Typical	2V	2V	2V	2V	2V	5V	2V
Current - Test	10mA	10mA	10mA	10mA	10mA	10mA	2mA
Millicandela Rating	3mcd	9mcd	9mcd	9mcd	9mcd	2mcd	0.6mcd
Wavelength - Peak	585nm	583nm	583nm	583nm	583nm	583nm	583nm
Viewing Angle	50°	90°	90°	90°	90°	90°	90°
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Through Hole, Axial	Through Hole, Right Angle	Through Hole, Right Angle	Surface Mount
Package / Case	2-SMD, Gull Wing	2-SMD, Gull Wing	2-SMD, Yoke Bend	Axial, Flat Leads	Through Hole, Right Angle	Through Hole, Right Angle	2-SMD, Gull Wing
Lens Size	1.90mm Dia	1.78mm Dia	1.78mm Dia	1.91mm Dia	1.91mm Dia	1.91mm Dia	1.78mm Dia
Height (Max)	2.92mm	2.92mm	2.92mm	2.92mm	2.92mm	2.92mm	2.92mm
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Product Status	Active	Active	Active	Active	Active	Active	Active
Inventory (Pcs)	940	2520	1800	4700	5800	1395	2090

Engineering Selection Recommendations

Direct Substitutes (Same Mounting Configuration):

HLMP-6400-F0011 is the primary direct substitute for MV6300AGR. Both components feature identical 2-SMD gull wing surface mount packaging, 2V forward voltage, 10mA test current, and ROHS3 compliance. HLMP-6400-F0011 provides increased brightness (9mcd versus 3mcd) and wider viewing angle (90° versus 50°), which are acceptable enhancements for indicator applications. Peak wavelength remains within yellow spectrum specification (583nm versus 585nm). This part is suitable for direct PCB footprint replacement without design modification.

HLMP-6400-F0021 provides an alternative surface mount configuration using yoke bend leads instead of gull wing leads. This part maintains all critical electrical parameters (2V, 10mA, yellow diffused) and ROHS3 compliance but requires different PCB footprint design. Selection of this part is appropriate only when yoke bend lead configuration is specified in the design.

Alternative Mounting Configurations:

HLMP-6400 (axial through-hole) and HLMP-6400-F0010 (right-angle through-hole) are not direct substitutes due to different mounting types. These parts are suitable only for designs requiring through-hole assembly or when PCB redesign is acceptable. Both maintain 2V forward voltage, 10mA test current, and yellow diffused lens characteristics.

Non-Recommended Substitutes:

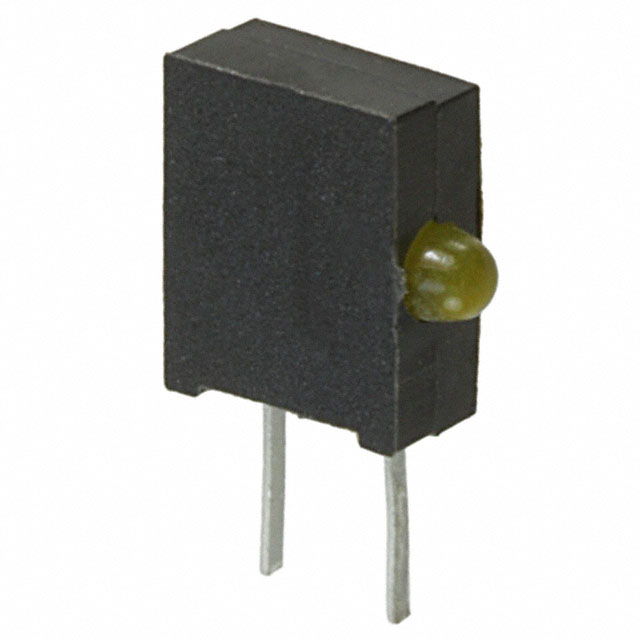

HLMP-6720-F0010 operates at 5V forward voltage, which differs from the 2V specification of MV6300AGR. This part is not suitable for circuits designed for 2V operation without additional circuit modification.

HLMP-7019-D0011 operates at 2mA test current with 0.6mcd brightness, which differs significantly from the 10mA and 3mcd specification of MV6300AGR. This part is not suitable for applications requiring standard 10mA operation.

All substitute parts maintain ROHS3 compliance and active product status, ensuring regulatory compliance and long-term availability.

Frequently Asked Questions (FAQ)

Q: Can HLMP-6400-F0011 be used as a direct replacement for MV6300AGR without PCB modification?

A: Yes. HLMP-6400-F0011 uses identical 2-SMD gull wing surface mount packaging and maintains the same PCB footprint as MV6300AGR. Both components operate at 2V forward voltage and 10mA test current. The increased brightness (9mcd versus 3mcd) and wider viewing angle (90° versus 50°) are acceptable enhancements for indicator applications and do not require circuit modification.

Q: What is the difference between HLMP-6400-F0011 and HLMP-6400-F0021?

A: Both parts are Broadcom HLMP-6400 series yellow diffused LEDs with identical electrical specifications (2V, 10mA, 9mcd). The difference is in the lead configuration: HLMP-6400-F0011 uses gull wing leads for standard SMD assembly, while HLMP-6400-F0021 uses yoke bend leads. Selection depends on PCB footprint design requirements.

Q: Why is HLMP-6720-F0010 listed as a substitute if it operates at 5V?

A: HLMP-6720-F0010 is listed in the provided substitute list but is not recommended for direct substitution due to its 5V forward voltage specification, which differs from the 2V requirement of MV6300AGR. This part is suitable only for designs operating at 5V with appropriate circuit modification.

Q: Can through-hole parts (HLMP-6400 or HLMP-6400-F0010) replace the surface mount MV6300AGR?

A: No. Through-hole parts require different PCB hole patterns and assembly processes compared to surface mount components. These parts are suitable only when PCB redesign is acceptable or when through-hole assembly is specified in the design.

Q: What is the significance of the 50° viewing angle on MV6300AGR compared to 90° on substitute parts?

A: The 50° viewing angle on MV6300AGR provides more directional light output, while 90° viewing angle on substitute parts provides wider light distribution. For indicator applications, wider viewing angle is generally acceptable and may improve visibility. Selection depends on specific application requirements for light directionality.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed substitute parts (HLMP-6400-F0011, HLMP-6400-F0021, HLMP-6400, HLMP-6400-F0010, HLMP-6720-F0010, and HLMP-7019-D0011) are ROHS3 compliant, matching the regulatory compliance of MV6300AGR.

Q: What is the difference between wavelength peak and wavelength dominant?

A: Wavelength peak indicates the specific wavelength at maximum spectral output. Wavelength dominant indicates the perceived color wavelength. For yellow LEDs, both values remain within the yellow spectrum (583-585nm range) and are functionally equivalent for color matching purposes.

Q: Is HLMP-7019-D0011 suitable for applications requiring 10mA operation?

A: No. HLMP-7019-D0011 is specified for 2mA test current with 0.6mcd brightness, which differs significantly from the 10mA and 3mcd specification of MV6300AGR. This part is designed for low-current applications and is not suitable for standard 10mA indicator circuits.

Q: What packaging formats are available for substitute parts?

A: Substitute parts are available in multiple packaging formats: HLMP-6400-F0011 is supplied in cut tape and digi-reel format; HLMP-6400-F0021 is supplied in tape and reel format; HLMP-6400 and HLMP-6400-F0010 are supplied in bulk; HLMP-6720-F0010 is supplied in bulk; HLMP-7019-D0011 is supplied in tape and reel format. Selection depends on procurement and assembly requirements.
