MV10-10FK Equivalent & Substitute Parts

Part Overview

The MV10-10FK is an insulated spade terminal connector manufactured by 3M, designed for crimp termination of 10-12 AWG wire onto a #10 stud. This component is part of the Scotchlok™ series and maintains Active product status. Substitute parts are identified when equivalent electrical and mechanical specifications are required due to inventory constraints, supply chain considerations, or application-specific requirements.

Substiute Parts

MV10-10FK

3MIn Stock: 1034MV10-10FK Datasheet

Current PartRFQ

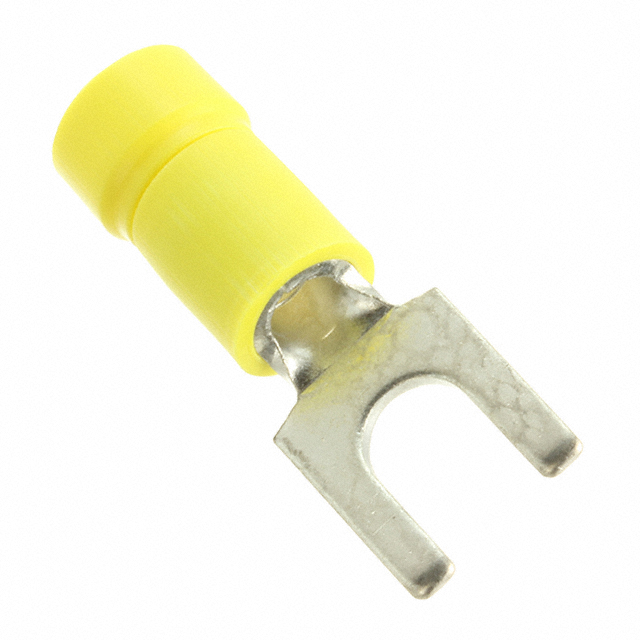

PV10-10F-D

Panduit CorpIn Stock: 2446PV10-10F-D Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The PV10-10F-D (Panduit Corp) qualifies as a direct substitute for the MV10-10FK based on the following critical parameters:

• Wire gauge compatibility: Both accept 10-12 AWG wire
• Stud size match: Both terminate to #10 stud
• Termination method: Both use crimp termination
• Insulation specification: Both are vinyl-insulated
• Color designation: Both are yellow
• Contact material and finish: Both use tin-plated copper
• Mounting configuration: Both are free hanging (in-line)

Dimensional variations within manufacturing tolerances do not preclude substitution when the above electrical and mechanical parameters align.

Parameter Comparison

Engineering Selection Recommendations

Both the MV10-10FK and PV10-10F-D meet equivalent compliance requirements. The MV10-10FK carries RoHS Compliant status, while the PV10-10F-D carries ROHS3 Compliant status. Both are REACH Unaffected and classified under ECCN EAR99. Selection between these parts should be based on availability, lead time, and procurement requirements, as the electrical and mechanical specifications are functionally equivalent for 10-12 AWG crimp termination applications on #10 studs.

Frequently Asked Questions (FAQ)

Q: Can PV10-10F-D replace MV10-10FK in existing designs? A: Yes. Both parts meet the same wire gauge (10-12 AWG), stud size (#10), termination method (crimp), and insulation specifications. Dimensional tolerances are within acceptable ranges for equivalent performance.

Q: Are there differences in contact material specifications? A: The MV10-10FK specifies Copper, ETP (Electrolytic Tough Pitch), while the PV10-10F-D specifies Copper. Both use tin contact finish and are functionally equivalent for the intended application.

Q: What is the significance of the RoHS compliance difference? A: The MV10-10FK is RoHS Compliant, and the PV10-10F-D is ROHS3 Compliant. Both meet regulatory requirements. ROHS3 represents the current regulatory standard. Selection depends on specific procurement or end-use requirements.

Q: Are there packaging considerations for substitution? A: Both parts are supplied in Bulk packaging. Verify inventory availability and lead times with your supplier, as stock levels may differ between manufacturers.

Q: Do dimensional variations affect substitution suitability? A: Minor dimensional variations (width 0.370" vs 0.380", length 1.030" vs 1.040") fall within manufacturing tolerances and do not preclude substitution when all electrical and mechanical parameters align.
