MUSBR439330 Equivalent & Substitute Parts

Part Overview

The MUSBR439330 is a stacked USB 3.0 Type-A receptacle connector manufactured by Amphenol ICC. This 18-position panel mount connector features right-angle through-hole termination with dual ports, designed for applications requiring high-speed USB 3.2 Gen 1 data transfer with robust environmental sealing. The connector is actively produced and maintains full RoHS compliance with UL94 V-0 flammability rating. Substitute parts are identified when electrical specifications, mechanical mounting characteristics, and environmental ratings remain functionally equivalent across the connector family.

Substiute Parts

MUSBR439330

Amphenol ICC (Commercial Products)In Stock: 861MUSBR439330 Datasheet

Current PartRFQ

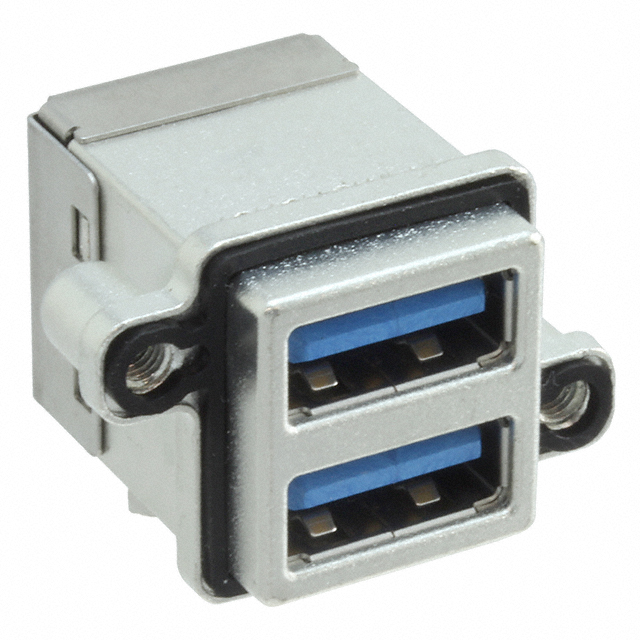

MUSBR-4193-M0

Amphenol ICC (Commercial Products)In Stock: 1294MUSBR-4193-M0 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MUSBR439330 is determined by strict equivalence across the following critical parameters:

• Connector Type & Configuration: USB-A stacked receptacle with 18 contacts
• USB Protocol Support: USB 3.2 Gen 1 specification compliance
• Mounting Geometry: Panel mount, through-hole, right-angle orientation with flange and horizontal mounting feature
• Electrical Performance: Dual-port configuration with 0.25A and 1.8A current ratings
• Environmental Compliance: IP67 ingress protection, operating temperature -40°C to 105°C, UL94 V-0 flammability rating
• Material & Finish: Shielded construction with gold-plated contacts and stainless steel shielding
• Regulatory Status: RoHS compliance and EAR99 export classification

The MUSBR-4193-M0 meets all these criteria and is classified as a parametric equivalent within the MUSBR series.

Parameter Comparison

Engineering Selection Recommendations

Both the MUSBR439330 and MUSBR-4193-M0 are active production components from Amphenol ICC with identical electrical and mechanical specifications. Selection between these parts should be based on:

• Inventory Availability: MUSBR439330 has 769 units in stock; MUSBR-4193-M0 has 1268 units in stock
• Regulatory Compliance: Both parts maintain RoHS compliance and UL94 V-0 flammability certification
• Supply Chain Continuity: Both parts share the same MUSBR base product number and are classified under identical ECCN and HTSUS codes, ensuring consistent procurement and logistics handling
• Moisture Sensitivity: MUSBR439330 is rated MSL 1 (Unlimited); MUSBR-4193-M0 is Not Applicable. Both are suitable for standard storage and handling conditions

Frequently Asked Questions (FAQ)

Q: Can MUSBR-4193-M0 be used as a direct replacement for MUSBR439330?

A: Yes. Both connectors are parametric equivalents with identical contact count, USB 3.2 Gen 1 protocol support, mounting configuration, current ratings, environmental protection, and material specifications. They are interchangeable at the circuit board level.

Q: Are there differences in mating cycle ratings between these parts?

A: The MUSBR439330 specifies 1500 mating cycles. The MUSBR-4193-M0 does not provide a mating cycle specification in the available data. For applications with defined mating cycle requirements, the MUSBR439330 provides explicit performance documentation.

Q: Do both connectors support the same USB data rates?

A: Yes. Both connectors comply with USB 3.2 Gen 1 (also designated USB 3.1 Gen 1 or Superspeed USB 3.0) specification, supporting equivalent data transfer rates and protocol features.

Q: What is the significance of the stacked configuration?

A: The stacked configuration indicates dual-port design within a single connector footprint. Both parts feature 2 ports and are suitable for applications requiring multiple USB 3.0 connections in a compact panel-mount form factor.

Q: Are these connectors suitable for harsh environmental conditions?

A: Yes. Both connectors feature IP67 ingress protection (dust tight and waterproof), operate across -40°C to 105°C temperature range, and incorporate shielded construction with stainless steel shielding for environmental robustness.

Q: What is the through-hole termination specification?

A: Both connectors use solder termination with through-hole mounting. The right-angle orientation with flange and horizontal mounting feature provides mechanical stability for panel-mount applications.
