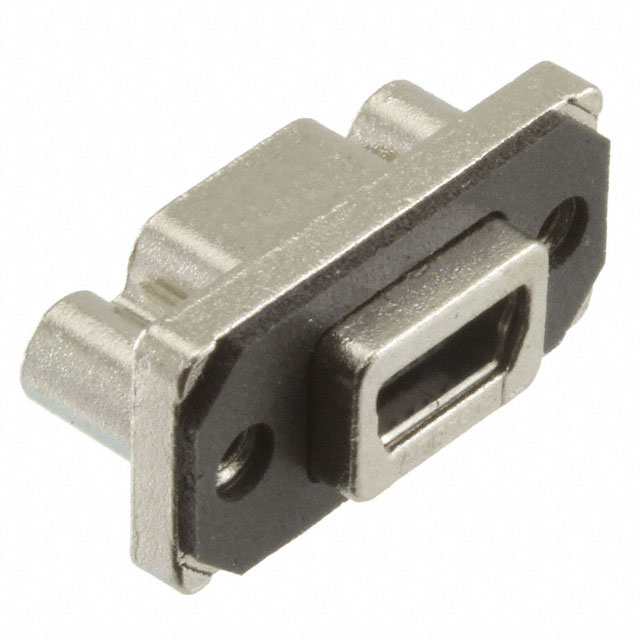

MUSBB15104 USB Mini-B Receptacle Connector

Part Overview

The MUSBB15104 is an active Amphenol ICC USB 2.0 mini-B receptacle connector designed for panel mount, through-hole, right-angle applications. This 5-position connector provides shielded, gold-contact termination suitable for embedded USB connectivity in industrial and commercial equipment. Finding equivalent substitute parts ensures design flexibility, supply chain continuity, and maintains identical electrical and mechanical performance in applications requiring this connector type.

Key Parameters

Parameter	Specification
Connector Type	USB - mini B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Panel Mount, Through Hole, Right Angle
Mounting Feature	Flange, Horizontal
Termination	Solder
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature Range	-40°C ~ 105°C
Current Rating	1A
Mating Cycles	5000
Shielding	Shielded
Contact Finish	Gold
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)
Product Status	Active

Substitute Part Grouping Explanation

Substitute parts for the MUSBB15104 are qualified based on strict electrical and mechanical parameter equivalence. All substitute parts must maintain identical specifications across the following critical parameters:

Connector Type: USB - mini B
Number of Contacts: 5
Gender: Receptacle
USB Specifications: USB 2.0
Mounting Configuration: Panel Mount, Through Hole, Right Angle
Mounting Feature: Flange, Horizontal
Termination Method: Solder
Ingress Protection Rating: IP67
Operating Temperature Range: -40°C to 105°C
Current Rating: 1A
Mating Cycles: 5000
Contact Finish: Gold
Shielding: Shielded
Material Flammability: UL94 V-0
RoHS Compliance: Required

The substitute parts MUSBB15130 and MUSBB151M0 meet all these criteria without exception, ensuring direct electrical and mechanical interchangeability.

Parameter Comparison

Parameter	MUSBB15104	MUSBB15130	MUSBB151M0
Connector Type	USB - mini B	USB - mini B	USB - mini B
Number of Contacts	5	5	5
Gender	Receptacle	Receptacle	Receptacle
Specifications	USB 2.0	USB 2.0	USB 2.0
Mounting Type	Panel Mount, Through Hole, Right Angle	Panel Mount, Through Hole, Right Angle	Panel Mount, Through Hole, Right Angle
Mounting Feature	Flange, Horizontal	Flange, Horizontal	Flange, Horizontal
Termination	Solder	Solder	Solder
Ingress Protection	IP67	IP67	IP67
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Current Rating	1A	1A	1A
Mating Cycles	5000	5000	5000
Shielding	Shielded	Shielded	Shielded
Contact Finish	Gold	Gold	Gold
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Active	Active	Active

Engineering Selection Recommendations

Both MUSBB15130 and MUSBB151M0 serve as direct parametric equivalents to the MUSBB15104 within the MUSB series. All three parts share identical electrical specifications, mechanical configurations, and regulatory compliance status. Selection between the MUSBB15104 and its substitutes is determined by inventory availability and lead time requirements rather than technical performance differences.

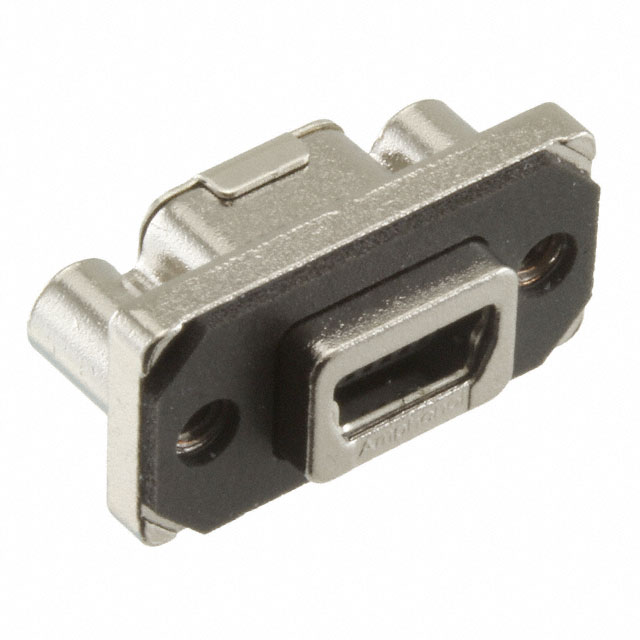

MUSBB151M0 carries additional REACH unaffected documentation, which may be relevant for applications with specific supply chain compliance requirements. All parts maintain active product status from Amphenol ICC (Commercial Products), ensuring ongoing manufacturer support and documentation availability.

Frequently Asked Questions (FAQ)

Q: Can MUSBB15130 or MUSBB151M0 be used interchangeably with MUSBB15104 on existing PCBs? A: Yes. All three parts are parametric equivalents sharing identical mounting type, footprint requirements, and solder termination specifications. No PCB layout changes are required.

Q: What determines if a USB mini-B connector qualifies as a substitute? A: A substitute must match all critical parameters: USB 2.0 specification, 5-position receptacle configuration, panel mount through-hole right-angle mounting, IP67 protection, 1A current rating, 5000 mating cycles, and gold contact finish. Deviations in any parameter disqualify substitution.

Q: Are there electrical performance differences between MUSBB15104, MUSBB15130, and MUSBB151M0? A: No. All three connectors operate identically within USB 2.0 specifications and maintain the same 1A current rating and mating cycle capability. Performance is equivalent across all electrical parameters.

Q: What is the significance of the MSL (Moisture Sensitivity Level) rating of 1? A: MSL 1 indicates unlimited shelf life without moisture exposure controls. Storage and handling requirements are minimal compared to higher MSL ratings.

Q: Does the RoHS compliance apply uniformly to all three parts? A: Yes. MUSBB15104, MUSBB15130, and MUSBB151M0 all comply with RoHS requirements. MUSBB151M0 additionally documents REACH unaffected status.

Q: How do the inventory levels affect part selection? A: Inventory considerations are operational rather than technical. MUSBB15104 (641 pcs), MUSBB15130 (1074 pcs), and MUSBB151M0 (1283 pcs) are all available in new original condition. Selection should align with production timeline and availability needs.
