MUSBA11131 USB 2.0 Type-A Receptacle Connector Equivalent & Substitute Parts

Part Overview

The MUSBA11131 is an Amphenol ICC USB-A Type-A USB 2.0 receptacle connector designed for panel mount, through-hole, right-angle applications. This 4-position connector features a shielded design with gold-plated contacts and IP67 ingress protection rating. The part is currently active in production with 836 pieces in stock inventory. Equivalent and substitute parts are identified to support component availability, inventory management, and design flexibility while maintaining full electrical and mechanical compatibility.

Substiute Parts

MUSBA11131

Amphenol ICC (Commercial Products)In Stock: 846MUSBA11131 Datasheet

Current PartRFQ

MUSBA11135

Amphenol ICC (Commercial Products)In Stock: 1047MUSBA11135 Datasheet

Parametric EquivalentRFQ

MUSBA111M1

Amphenol ICC (Commercial Products)In Stock: 965MUSBA111M1 Datasheet

Parametric EquivalentRFQ

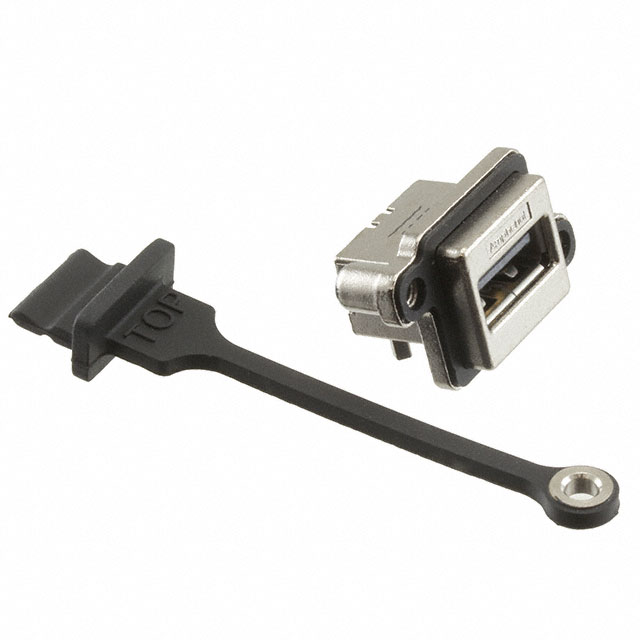

MUSBA111M5

Amphenol ICC (Commercial Products)In Stock: 1119MUSBA111M5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

All substitute parts identified for the MUSBA11131 are parametric equivalents within the Amphenol ICC MUSB series. Substitution is based on identical alignment across all critical electrical and mechanical parameters: USB 2.0 specification compliance, 4-position receptacle configuration, panel mount through-hole right-angle mounting, 1.5A current rating, IP67 ingress protection, shielded construction with gold-plated contacts, and operating temperature range of -40°C to 105°C. All substitute parts share the same base product number (MUSBA), series designation, termination method (solder), flange mounting feature, and compliance certifications including RoHS compliance and UL94 V-0 flammability rating. The substitute parts are MUSBA11135, MUSBA111M1, and MUSBA111M5.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts (MUSBA11135, MUSBA111M1, MUSBA111M5) are direct parametric equivalents to the MUSBA11131 and are suitable for interchangeable use in applications requiring USB 2.0 Type-A receptacle connectors with panel mount, through-hole, right-angle configuration. Each substitute part maintains identical electrical performance specifications, mechanical mounting characteristics, and compliance certifications. All parts are active products manufactured by Amphenol ICC with current production status and inventory availability. Selection among these equivalent parts may be based on inventory levels, lead time, or procurement preferences, as all parts satisfy identical functional and environmental requirements. The MUSBA111M5 variant currently has the highest inventory level at 1087 pieces, followed by MUSBA11135 at 1011 pieces and MUSBA111M1 at 951 pieces.

Frequently Asked Questions (FAQ)

Q: Can MUSBA11135, MUSBA111M1, and MUSBA111M5 be used interchangeably with MUSBA11131?

A: Yes. All three substitute parts are parametric equivalents with identical electrical specifications (USB 2.0, 4-position, 1.5A current rating), mechanical mounting configuration (panel mount, through-hole, right-angle with horizontal flange), and environmental ratings (IP67, -40°C to 105°C operating range). They are directly interchangeable in circuit design and PCB layout.

Q: What are the key parameters that define substitution eligibility?

A: Substitution eligibility is determined by: connector type (USB-A receptacle), USB specification version (USB 2.0), number of contacts (4), mounting method (panel mount, through-hole, right-angle), current rating (1.5A), operating temperature range (-40°C to 105°C), mating cycle rating (1500), shielding type (shielded), contact finish (gold), and ingress protection rating (IP67). All substitute parts match these parameters exactly.

Q: Are there any differences in packaging or inventory between the substitute parts?

A: All substitute parts are supplied in box packaging. Inventory levels differ: MUSBA11131 has 836 pieces, MUSBA11135 has 1011 pieces, MUSBA111M1 has 951 pieces, and MUSBA111M5 has 1087 pieces. These inventory variations do not affect electrical or mechanical compatibility.

Q: Do all substitute parts meet the same compliance standards?

A: Yes. All parts including MUSBA11131, MUSBA11135, MUSBA111M1, and MUSBA111M5 are RoHS compliant, carry UL94 V-0 flammability rating, have moisture sensitivity level (MSL) of 1 (unlimited), and share identical ECCN (EAR99) and HTSUS (8536.69.4040) classifications.

Q: What is the significance of the different part number suffixes (11131, 11135, 111M1, 111M5)?

A: The suffixes represent different variants within the Amphenol ICC MUSB series, but all variants identified as substitutes maintain identical electrical and mechanical specifications. The suffix variations do not indicate functional differences relevant to substitution compatibility.
