MUSB-05-S-AB-SM-A-TR Equivalent & Substitute Parts

Part Overview

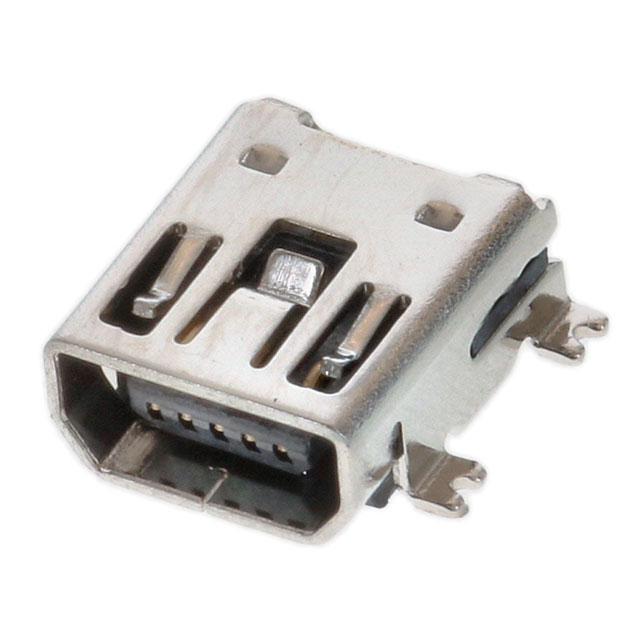

The MUSB-05-S-AB-SM-A-TR is a USB mini AB receptacle connector manufactured by Samtec Inc., designed for surface mount, right-angle applications. This 5-position connector is actively produced and widely used in portable electronic devices requiring compact USB connectivity. Substitute parts may be required due to inventory constraints, lead time considerations, or specific application requirements within the allowed electrical and mechanical parameter ranges.

Substiute Parts

MUSB-05-S-AB-SM-A-TR

Samtec Inc.In Stock: 1479MUSB-05-S-AB-SM-A-TR Datasheet

Current PartRFQ

M701-340542

Harwin Inc.In Stock: 1133M701-340542 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MUSB-05-S-AB-SM-A-TR is determined by the following critical parameters:

• Connector Type: USB mini B (substitute) vs. USB mini AB (main part) — both are 5-position USB mini connectors with receptacle gender
• Mounting Configuration: Surface mount, right-angle, horizontal mounting feature required
• Contact Count: 5 positions maintained
• Termination Method: Solder termination required
• Environmental Compliance: RoHS3 compliance and UL94 V-0 flammability rating
• Moisture Sensitivity: MSL 1 (Unlimited) for handling compatibility

The substitute part M701-340542 (Harwin Inc.) meets these core substitution criteria as a USB mini B receptacle connector with identical mounting type, contact configuration, and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both the MUSB-05-S-AB-SM-A-TR and M701-340542 maintain active product status and full RoHS3 compliance. Selection between these parts should be based on:

• Connector Type Compatibility: The main part supports USB mini AB protocol, while the substitute supports USB mini B. Verify application requirements for connector type compatibility before substitution.
• Temperature Operating Range: The substitute part (M701-340542) provides an extended operating temperature range (-55°C ~ 105°C) compared to the main part (-50°C ~ 85°C), suitable for wider environmental applications.
• Packaging Format: The main part is supplied in Tape & Reel (TR) format; the substitute is supplied in Bulk format. Confirm packaging requirements for assembly processes.
• Compliance Certifications: Both parts meet UL94 V-0 flammability and ROHS3 compliance requirements, ensuring regulatory alignment.

Frequently Asked Questions (FAQ)

Q: Can M701-340542 be used as a direct replacement for MUSB-05-S-AB-SM-A-TR?

A: Both connectors share identical mounting type (surface mount, right-angle), contact count (5 positions), termination method (solder), and compliance certifications. However, the connector types differ: USB mini AB versus USB mini B. Substitution is valid only if the application supports USB mini B protocol.

Q: What are the key differences between USB mini AB and USB mini B connectors?

A: The connector type difference is specified in the provided data. Verify your application's USB protocol requirements before substitution.

Q: Does the extended temperature range of M701-340542 affect substitution suitability?

A: The substitute part's extended operating temperature range (-55°C ~ 105°C) is compatible with applications requiring the main part's range (-50°C ~ 85°C). This represents an operational advantage with no compatibility restrictions.

Q: Are there packaging considerations for substitution?

A: The main part is supplied in Tape & Reel (TR) format, while the substitute is supplied in Bulk format. Confirm your assembly process requirements and handling procedures for the bulk packaging format.

Q: Do both parts meet the same compliance standards?

A: Yes. Both MUSB-05-S-AB-SM-A-TR and M701-340542 are RoHS3 compliant and carry UL94 V-0 flammability ratings, with MSL 1 (Unlimited) moisture sensitivity levels.
