MUC-20PFFR-JS8C01 Equivalent & Substitute Parts

Part Overview

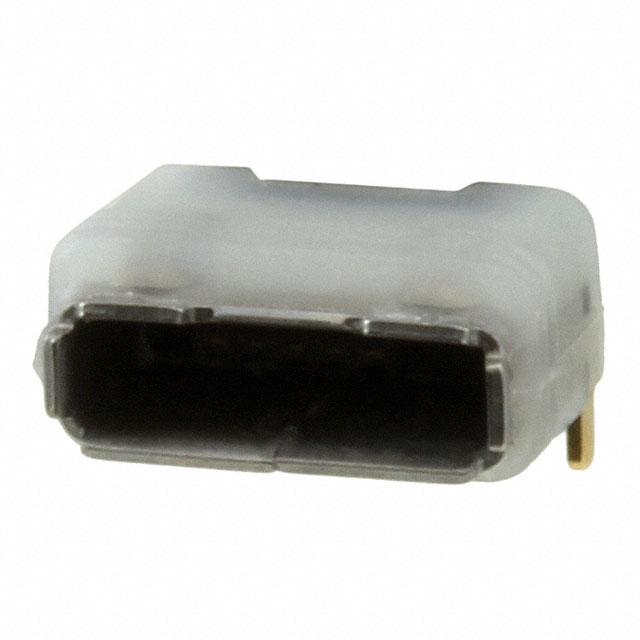

The MUC-20PFFR-JS8C01 is a USB 2.0 micro AB receptacle connector manufactured by Amphenol LTW. This connector is a 5-position surface mount, right-angle component with IP68 ingress protection suitable for dust-tight and waterproof applications. The part has been discontinued and is now listed as obsolete. Finding an active equivalent is necessary to ensure component availability for new designs and continued supply chain reliability.

Substiute Parts

MUC-20PFFR-JS8C01

Amphenol LTWIn Stock: 1200MUC-20PFFR-JS8C01 Datasheet

Current PartRFQ

MUC-20PFFR-JS8C02

Amphenol LTWIn Stock: 6067MUC-20PFFR-JS8C02 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The MUC-20PFFR-JS8C02 qualifies as a direct substitute based on the following critical parameters that determine compatibility:

Matching Parameters:

• Connector Type: USB - micro AB (identical)
• Specifications: USB 2.0 (identical)
• Gender: Receptacle (identical)
• Number of Contacts: 5 (identical)
• Mounting Type: Surface Mount, Right Angle (identical)
• Mounting Feature: Horizontal (identical)
• Termination: Solder (identical)
• Number of Ports: 1 (identical)
• Ingress Protection: IP68 - Dust Tight, Waterproof (identical)
• Operating Temperature Range: -30°C ~ 85°C (identical)
• Mating Cycles: 10000 (identical)
• Contact Finish: Gold (identical)
• Shell/Shielding Material: Steel, Stainless (identical)
• Insulation Color: Black (identical)
• Moisture Sensitivity Level: 1 (Unlimited) (identical)

Both parts share the same base product number (MUC-20PFFR) and are manufactured by the same supplier. The MUC-20PFFR-JS8C02 maintains functional and mechanical equivalence while offering improved product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The MUC-20PFFR-JS8C02 is the direct active equivalent for the obsolete MUC-20PFFR-JS8C01. Selection should be based on the following criteria:

Product Status & Availability: The MUC-20PFFR-JS8C02 maintains active status with higher inventory levels (5970 pcs vs. 1109 pcs), ensuring long-term component availability and supply chain stability.

Compliance & Certifications: The substitute part meets ROHS3 compliance and maintains REACH Unaffected status, satisfying current regulatory requirements. Both parts carry EAR99 ECCN classification and identical HTSUS codes (8536.69.4040).

Functional Equivalence: All critical electrical and mechanical parameters remain unchanged, including USB 2.0 specifications, IP68 ingress protection, operating temperature range, and mating cycle rating. The connector design maintains identical pinout and form factor.

Packaging Consideration: The MUC-20PFFR-JS8C02 is supplied in Tape & Reel packaging, which is standard for high-volume production environments. This packaging method does not affect electrical or mechanical functionality.

Frequently Asked Questions (FAQ)

Q: Are MUC-20PFFR-JS8C01 and MUC-20PFFR-JS8C02 electrically identical? A: Yes. Both connectors maintain USB 2.0 specifications, 5-position design, and identical contact materials and finishes. Electrical performance is equivalent.

Q: What is the difference in mechanical design between these parts? A: Both connectors share identical mounting methods (surface mount, right-angle, horizontal orientation) and form factors. The primary difference is the mounting feature: MUC-20PFFR-JS8C01 includes a board guide, while MUC-20PFFR-JS8C02 includes a board lock. Both ensure secure mechanical connection.

Q: Can MUC-20PFFR-JS8C02 be used as a drop-in replacement? A: Yes. Identical pinout, contact count, spacing, and orientation make it a direct PCB-level substitute. No design modifications are required.

Q: Does the packaging format affect component selection? A: Packaging format (bulk vs. Tape & Reel) does not affect electrical or mechanical performance. Selection should be based on manufacturing assembly requirements and volume specifications.

Q: Are there temperature or environmental limitations for either connector? A: Both connectors operate identically within the -30°C to 85°C range and maintain IP68 ingress protection. Environmental performance is equivalent.

Q: What is the significance of the RoHS3 compliance upgrade? A: ROHS3 compliance represents current regulatory alignment with EU directives and represents improved environmental standards compliance. The MUC-20PFFR-JS8C02 meets current RoHS requirements.
