MU10-10FFBK Equivalent & Substitute Parts

Part Overview

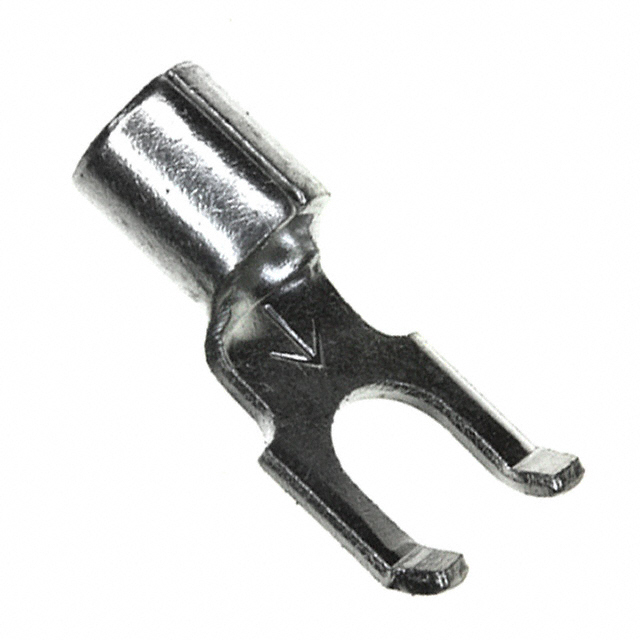

The MU10-10FFBK is a 10 stud spade terminal connector manufactured by 3M, designed for crimp termination of 10-12 AWG wire. This component is part of the Scotchlok™ series and features a flanged terminal type with tin contact finish on copper (ETP) material. The product is currently obsolete, making identification of functionally equivalent alternatives essential for ongoing maintenance, repair, and system continuity in applications requiring this connector type.

Substiute Parts

MU10-10FFBK

3MIn Stock: 1046MU10-10FFBK Datasheet

Current PartRFQ

P10-10FF-D

Panduit CorpIn Stock: 870P10-10FF-D Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MU10-10FFBK is determined by the following critical parameters:

• Stud/Tab Size: Must be 10 Stud to ensure mechanical compatibility with mating connectors
• Wire Gauge: Must accommodate 10-12 AWG wire for proper electrical and mechanical connection
• Terminal Type: Flanged configuration required for consistent mounting and contact geometry
• Termination Method: Crimp termination required for field installation compatibility
• Insulation Type: Non-insulated specification must be maintained
• Contact Material & Finish: Copper with tin finish ensures electrical conductivity and corrosion resistance equivalent to the original

The substitute part P10-10FF-D from Panduit Corp meets all critical substitution criteria. Both components share identical wire gauge, stud size, terminal type, termination method, insulation type, and contact material/finish specifications, establishing functional equivalence for direct replacement applications.

Parameter Comparison

Engineering Selection Recommendations

The P10-10FF-D from Panduit Corp is the designated manufacturer-recommended substitute for the obsolete MU10-10FFBK. Both components satisfy identical functional requirements across all critical electrical and mechanical parameters: 10 stud size, 10-12 AWG wire gauge, flanged terminal type, crimp termination, non-insulated construction, and tin-plated copper contact material.

The P10-10FF-D maintains active product status, ensuring ongoing availability and supply chain continuity. Both parts carry identical REACH and ECCN classifications, confirming regulatory equivalence. The Panduit component includes RoHS3 compliance certification, providing additional environmental compliance assurance for new installations and system upgrades.

Minor dimensional variations exist between the two parts (width and overall length), which are within acceptable tolerances for spade terminal applications and do not affect functional compatibility in standard mounting configurations.

Frequently Asked Questions (FAQ)

Q: Can P10-10FF-D directly replace MU10-10FFBK in existing applications?

A: Yes. Both components share identical stud size (10), wire gauge (10-12 AWG), terminal type (flanged), termination method (crimp), insulation type (non-insulated), and contact material/finish (tin-plated copper). These parameters determine functional compatibility for direct replacement.

Q: What are the dimensional differences between these parts?

A: The P10-10FF-D has slightly larger outer edge width (0.380" vs. 0.320") and overall length (0.800" vs. 0.730"). These differences are within acceptable tolerances for spade terminal applications and do not prevent mechanical compatibility in standard mounting scenarios.

Q: Why is the MU10-10FFBK obsolete?

A: The MU10-10FFBK is listed as obsolete by 3M. The P10-10FF-D from Panduit Corp is the manufacturer-recommended active alternative, ensuring continued availability and supply chain support.

Q: Are there compliance differences between these parts?

A: Both components are REACH Unaffected and classified as EAR99 for export control purposes. The P10-10FF-D includes RoHS3 compliance certification, which the obsolete MU10-10FFBK does not specify. This provides additional environmental compliance assurance for applications requiring RoHS certification.

Q: What packaging is available for the substitute part?

A: The P10-10FF-D is supplied in bulk packaging, with 807 pieces currently in stock as new original inventory.
