MTSMC-L4N1.R2 Equivalent & Substitute Parts

Part Overview

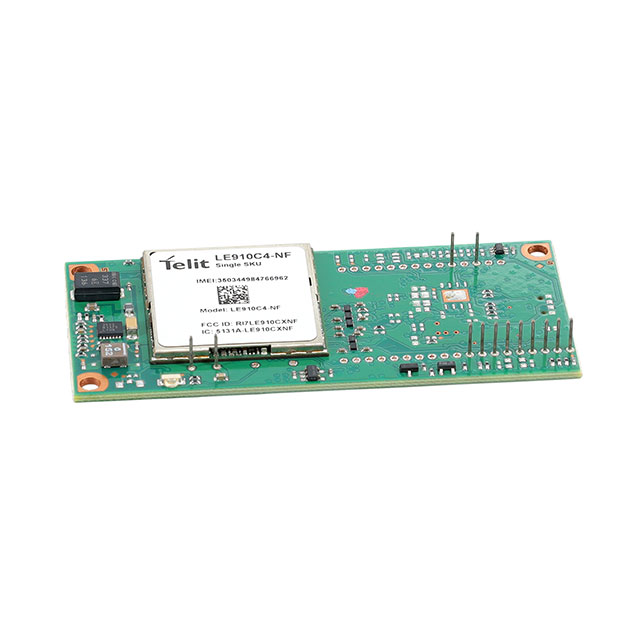

The MTSMC-L4N1.R2 is a cellular and navigation RF transceiver module manufactured by Multi-Tech Systems Inc. as part of the SocketModem® Cell series. This module integrates 4G LTE CAT-4 cellular connectivity with GNSS navigation capabilities, operating across multiple frequency bands including 600MHz, 700MHz, 850MHz, 1.7GHz, and 1.9GHz. The module features a U.FL connector for external antenna connection and through-hole mounting configuration.

The MTSMC-L4N1.R2 carries a product status designation of "Not For New Designs," indicating that Multi-Tech Systems Inc. has discontinued active development and support for this particular revision. This status necessitates identification of equivalent substitute parts for ongoing maintenance, repair, and legacy system support applications where continued component availability is required.

Substiute Parts

MTSMC-L4N1.R2

Multi-Tech Systems Inc.In Stock: 1214MTSMC-L4N1.R2 Datasheet

Current PartRFQ

MTSMC-L4N1.R3

Multi-Tech Systems Inc.In Stock: 842MTSMC-L4N1.R3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MTSMC-L4N1.R2 is determined by strict alignment across the following critical parameters:

Mandatory Matching Parameters:

• Manufacturer: Multi-Tech Systems Inc.
• Series: SocketModem® Cell
• RF Family/Standard: Cellular, Navigation
• Frequency Bands: 600MHz, 700MHz, 850MHz, 1.7GHz, 1.9GHz
• Voltage Supply Range: 3.3V ~ 5V
• Mounting Type: Through Hole
• Operating Temperature Range: -40°C ~ 85°C
• Package / Case: 64-DIP Module, 45 Leads
• Antenna Type: U.FL connector

Compatible Variation Parameters:

• Protocol: Substitute parts may include enhanced protocol support (GNSS, GPS, LTE) beyond the base 4G LTE CAT-4 specification
• Serial Interfaces: Substitute parts may include additional interface options (UART, USB) beyond the base Serial interface
• Product Status: Substitute parts with "Active" product status are preferred for new applications and ongoing support

The MTSMC-L4N1.R3 meets all mandatory matching parameters and represents a direct functional equivalent with enhanced protocol capabilities and active product status.

Parameter Comparison

Engineering Selection Recommendations

The MTSMC-L4N1.R3 is the direct substitute for the MTSMC-L4N1.R2 based on the following engineering criteria:

Product Status Alignment: The MTSMC-L4N1.R2 is designated "Not For New Designs," indicating end-of-life status. The MTSMC-L4N1.R3 carries "Active" product status, ensuring continued manufacturer support, availability, and technical documentation.

Electrical and Mechanical Compatibility: Both modules share identical voltage supply ranges (3.3V ~ 5V), operating temperature specifications (-40°C ~ 85°C), frequency band coverage, and data rate performance (150Mbps). The 64-DIP Module package with 45 leads and U.FL antenna connector configuration are identical, ensuring direct mechanical and electrical compatibility in existing PCB designs.

Protocol and Interface Enhancement: The MTSMC-L4N1.R3 extends protocol support to include explicit GPS and LTE designation alongside GNSS, and provides expanded serial interface options (UART, USB) compared to the base Serial interface of the MTSMC-L4N1.R2. These enhancements maintain backward compatibility while offering additional functionality for modern applications.

Regulatory Compliance: Both modules comply with ROHS3 standards and carry MSL 1 (Unlimited) moisture sensitivity ratings, ensuring equivalent environmental and regulatory compliance profiles.

Frequently Asked Questions (FAQ)

Q: Can the MTSMC-L4N1.R3 be used as a direct replacement for the MTSMC-L4N1.R2 in existing designs?

A: Yes. The MTSMC-L4N1.R3 maintains identical electrical specifications (voltage supply, operating temperature, frequency bands, data rate), mechanical configuration (64-DIP Module, 45 leads, U.FL connector), and mounting type (through hole). The modules are pin-compatible and functionally equivalent.

Q: What are the differences between the MTSMC-L4N1.R2 and MTSMC-L4N1.R3?

A: The primary differences are product status and serial interface options. The MTSMC-L4N1.R2 is "Not For New Designs" with Serial interface only. The MTSMC-L4N1.R3 is "Active" with expanded UART and USB interface support. Protocol designation is also more explicit in the R3 variant (GNSS, GPS, LTE).

Q: Are there any PCB layout modifications required when substituting the MTSMC-L4N1.R3 for the MTSMC-L4N1.R2?

A: No PCB layout modifications are required. Both modules use identical 64-DIP Module packaging with 45 leads and U.FL through-hole antenna connector configuration. Direct socket substitution is supported.

Q: What is the significance of the "Not For New Designs" status on the MTSMC-L4N1.R2?

A: "Not For New Designs" indicates that Multi-Tech Systems Inc. has discontinued active development and support for this revision. The MTSMC-L4N1.R2 remains available for legacy system maintenance and repair, but the MTSMC-L4N1.R3 is recommended for all new applications requiring active manufacturer support and documentation.

Q: Do both modules support the same frequency bands?

A: Yes. Both the MTSMC-L4N1.R2 and MTSMC-L4N1.R3 operate across identical frequency bands: 600MHz, 700MHz, 850MHz, 1.7GHz, and 1.9GHz, with 150Mbps data rate performance.

Q: Are the power supply requirements identical between the two modules?

A: Yes. Both modules operate with identical voltage supply range of 3.3V ~ 5V and identical operating temperature range of -40°C ~ 85°C.

Q: What additional serial interfaces does the MTSMC-L4N1.R3 provide?

A: The MTSMC-L4N1.R3 provides UART and USB serial interfaces in addition to the base Serial interface, offering expanded connectivity options for modern host systems.
