MTE8560P Equivalent & Substitute Parts

Part Overview

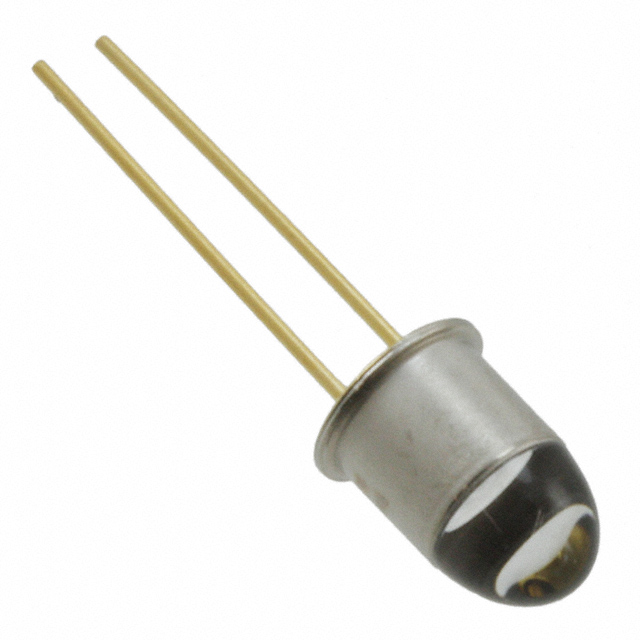

The MTE8560P is an infrared (IR) emitter operating at 850nm wavelength, designed for through-hole mounting in TO-18-2 metal can packaging. This component is classified as obsolete, making identification of suitable substitutes essential for ongoing production and maintenance applications. The MTE8560P delivers 100mA forward current with a 1.5V typical forward voltage and 6° viewing angle, suitable for IR transmission applications requiring narrow beam angles and reliable performance across industrial temperature ranges.

Substiute Parts

MTE8560P

Marktech OptoelectronicsIn Stock: 769MTE8560P Datasheet

Current PartRFQ

MTE8560P-C

Marktech OptoelectronicsIn Stock: 1081MTE8560P-C Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the MTE8560P is determined by strict equivalence across the following critical parameters:

• Wavelength: 850nm (exact match required)
• Current rating: 100mA maximum forward current
• Voltage characteristics: 1.5V typical forward voltage
• Viewing angle: 6° (narrow beam specification)
• Package type: TO-18-2 metal can
• Mounting configuration: Through-hole
• Operating temperature range: -20°C to 85°C minimum

The MTE8560P-C qualifies as a direct substitute based on identical electrical and mechanical specifications. The primary distinction is product status: MTE8560P is obsolete while MTE8560P-C is active, with improved availability and RoHS compliance certification.

Parameter Comparison

Engineering Selection Recommendations

The MTE8560P-C is the direct equivalent for MTE8560P replacement. Selection is based on the following factors:

• All electrical parameters are identical, ensuring drop-in compatibility in existing circuit designs
• Identical mechanical packaging (TO-18-2 metal can) and through-hole mounting configuration
• MTE8560P-C maintains active product status with confirmed inventory availability (976 pcs)
• MTE8560P-C carries RoHS compliance certification, meeting modern regulatory requirements
• Both parts share identical moisture sensitivity classification (MSL 1)
• ECCN and HTSUS classifications are identical, maintaining export and tariff consistency

Frequently Asked Questions (FAQ)

Q: Can MTE8560P-C be used as a direct replacement for MTE8560P?

A: Yes. The MTE8560P-C is electrically and mechanically identical to the MTE8560P across all specified parameters. No circuit modifications are required for substitution.

Q: What is the primary reason to transition from MTE8560P to MTE8560P-C?

A: The MTE8560P is classified as obsolete, while MTE8560P-C is active with confirmed inventory. MTE8560P-C also carries RoHS compliance certification.

Q: Are the TO-18-2 metal can packages interchangeable between these parts?

A: Yes. Both parts use identical TO-18-2 metal can packaging with through-hole mounting configuration. Pin assignments and mechanical dimensions are equivalent.

Q: Do these parts have identical electrical performance?

A: Yes. Forward current (100mA), forward voltage (1.5V), wavelength (850nm), viewing angle (6°), and operating temperature range (-20°C to 85°C) are identical.

Q: What is the moisture sensitivity level for these IR emitters?

A: Both MTE8560P and MTE8560P-C carry MSL 1 (Unlimited) classification, indicating no moisture sensitivity restrictions during storage or handling.

Q: Are there any compliance differences between MTE8560P and MTE8560P-C?

A: MTE8560P-C is RoHS compliant. Both parts share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications.
