MTB-10 Equivalent & Substitute Parts

Part Overview

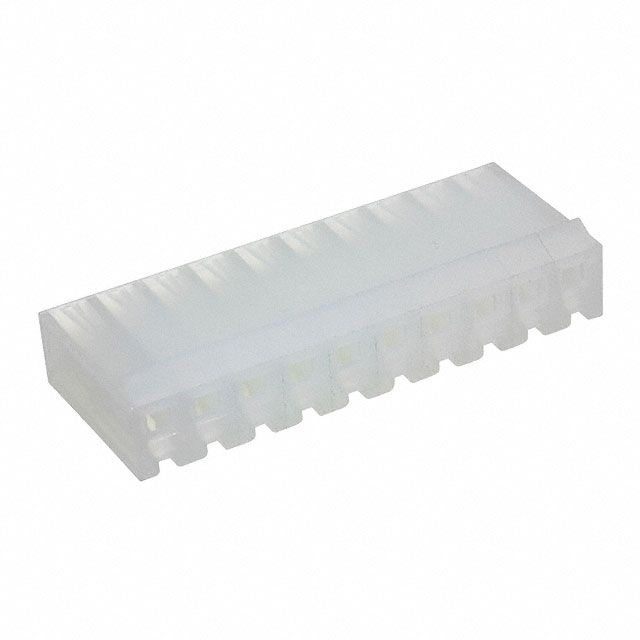

The MTB-10 is a 10-position rectangular connector housing manufactured by Adam Tech. This receptacle connector features a 0.156" (3.96mm) pitch and is designed for free-hanging, in-line applications with crimp termination and locking ramp fastening. The MTB-10 is an active product with ROHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters are met, enabling component interchangeability in applications where the original part is unavailable or inventory constraints exist.

Substiute Parts

MTB-10

Adam TechIn Stock: 861MTB-10 Datasheet

Current PartRFQ

0430610010

MolexIn Stock: 19530430610010 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the MTB-10 are qualified based on strict equivalence of the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (10)
• Pitch specification (0.156" / 3.96mm)
• Number of rows (1)
• Mounting configuration (Free Hanging, In-Line)
• Contact termination method (Crimp)
• Fastening mechanism (Locking Ramp)
• RoHS compliance status (ROHS3)
• Moisture sensitivity level (MSL 1)

The Molex 0430610010 meets all these criteria and qualifies as a parametric equivalent. Variations in insulation material, color, and operating temperature range do not preclude substitution when these core electrical and mechanical parameters are identical.

Parameter Comparison

Engineering Selection Recommendations

Both the MTB-10 and the Molex 0430610010 are active products with ROHS3 compliance and identical moisture sensitivity ratings. Selection between these parts should be based on availability, cost, and supply chain requirements. The MTB-10 currently maintains 779 units in stock, while the 0430610010 has 1,860 units available. Both parts meet regulatory compliance requirements for REACH and EAR99 export classifications. No technical performance differentiation exists between these parts for applications requiring a 10-position, 3.96mm pitch receptacle connector with crimp termination and locking ramp fastening.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0430610010 be used as a direct replacement for the MTB-10?

A: Yes. The 0430610010 meets all critical electrical and mechanical parameters: 10 positions, 0.156" pitch, receptacle type, female socket contacts, crimp termination, locking ramp fastening, and identical RoHS and MSL ratings. Both parts are compatible with the same mating connectors and contact sets.

Q: What are the differences between these two parts?

A: The primary differences are insulation material (Polyamide PA66 vs. Polyester Glass Filled), housing color (White vs. Natural), and operating temperature range (−25°C to 85°C vs. 0°C to 75°C). These variations do not affect mechanical or electrical compatibility for standard applications.

Q: Are contacts included with either part?

A: No. Both the MTB-10 and 0430610010 are connector housings only. Contacts must be sourced separately and are not included in the package.

Q: What is the significance of the locking ramp fastening type?

A: The locking ramp mechanism provides positive engagement between the connector housing and its mating counterpart, ensuring secure connection and preventing accidental disconnection during operation.

Q: Do both parts support the same pitch specification?

A: Yes. Both parts feature a 0.156" (3.96mm) pitch, which defines the center-to-center spacing between contact positions and ensures mechanical and electrical compatibility with matching connector assemblies.
