MTB-05 Equivalent & Substitute Parts

Part Overview

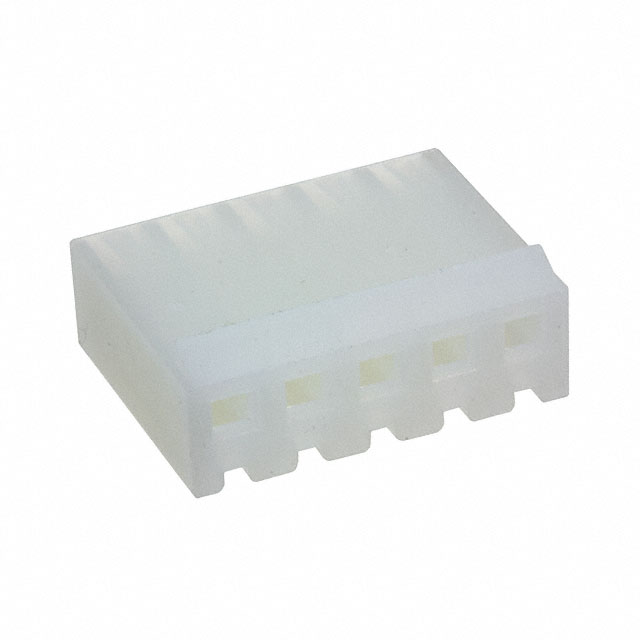

The MTB-05 is a 5-position rectangular connector housing manufactured by Adam Tech, designed for receptacle applications with a 0.156" (3.96mm) pitch. This component is classified as a rectangular connector housing for female socket contacts and operates within the temperature range of -25°C to 85°C. The part is currently in active production status with RoHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in applications where the core functional requirements remain constant.

Substiute Parts

MTB-05

Adam TechIn Stock: 1432MTB-05 Datasheet

Current PartRFQ

0430610005

MolexIn Stock: 99160430610005 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MTB-05 is determined by strict alignment of the following critical parameters:

• Connector type (Receptacle)
• Contact type (Female Socket)
• Number of positions (5)
• Pitch specification (0.156" / 3.96mm)
• Number of rows (1)
• Mounting type (Free Hanging / In-Line)
• Contact termination method (Crimp)
• Fastening type (Locking Ramp)
• RoHS3 compliance status

The Molex 0430610005 meets all mandatory electrical and mechanical parameters required for functional equivalence with the MTB-05. Both parts share identical connector architecture, contact configuration, and termination specifications. Differences in insulation material composition and operating temperature range do not preclude substitution when application requirements fall within the overlapping operational envelope.

Parameter Comparison

Engineering Selection Recommendations

Both the MTB-05 and 0430610005 are active production components with full RoHS3 compliance and unlimited moisture sensitivity ratings. Selection between these parts should be based on application-specific operating temperature requirements. The MTB-05 supports an extended lower temperature limit of -25°C, while the 0430610005 operates from 0°C minimum. For applications operating within the 0°C to 75°C range, either part provides equivalent functional performance. For applications requiring operation below 0°C, the MTB-05 is the appropriate selection. Both parts maintain identical mechanical interface specifications and contact architecture, ensuring direct substitution capability within their respective temperature operating envelopes.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0430610005 directly replace the Adam Tech MTB-05 in all applications?

A: Direct substitution is valid when the application operating temperature remains within 0°C to 75°C. The MTB-05 supports extended low-temperature operation to -25°C. Verify application temperature requirements before substitution.

Q: What are the critical parameters that define substitution eligibility?

A: Substitution requires matching connector type (Receptacle), contact type (Female Socket), position count (5), pitch (0.156" / 3.96mm), row configuration (1), mounting type (Free Hanging), termination method (Crimp), and fastening type (Locking Ramp). Both parts meet these criteria.

Q: Do the different insulation materials affect compatibility?

A: The MTB-05 uses Polyamide (PA66) while the 0430610005 uses Polyester with glass filler. Both materials are suitable for the specified connector housing application. Material selection does not impact electrical or mechanical interface compatibility.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the MTB-05 and 0430610005 carry full RoHS3 compliance certification and unlimited MSL ratings.

Q: What is the significance of the Locking Ramp fastening type?

A: The Locking Ramp fastening mechanism provides positive engagement and retention for the connector housing. Both substitute parts employ identical fastening architecture, ensuring equivalent mechanical security and repeatability.
