MSS-R-PC-3(40) Equivalent & Substitute Parts

Part Overview

The MSS-R-PC-3(40) is a coaxial connector receptacle manufactured by Hirose Electric Co Ltd, designed for 50-ohm RF applications. This female socket connector features through-hole solder termination and is rated for frequencies up to 1 GHz. The part is currently in Last Time Buy status, indicating discontinued production. Identifying equivalent substitute parts is essential for ongoing procurement and system maintenance where this connector is specified in existing designs.

Substiute Parts

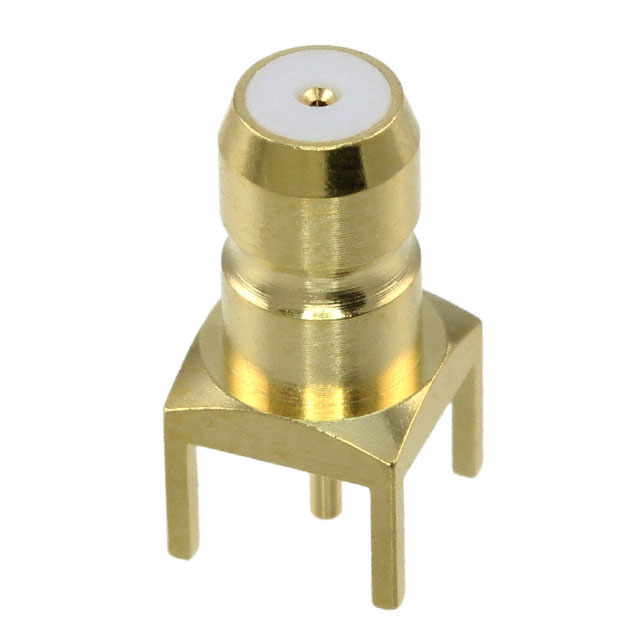

MSS-R-PC-3(40)

Hirose Electric Co LtdIn Stock: 1208MSS-R-PC-3(40) Datasheet

Current PartRFQ

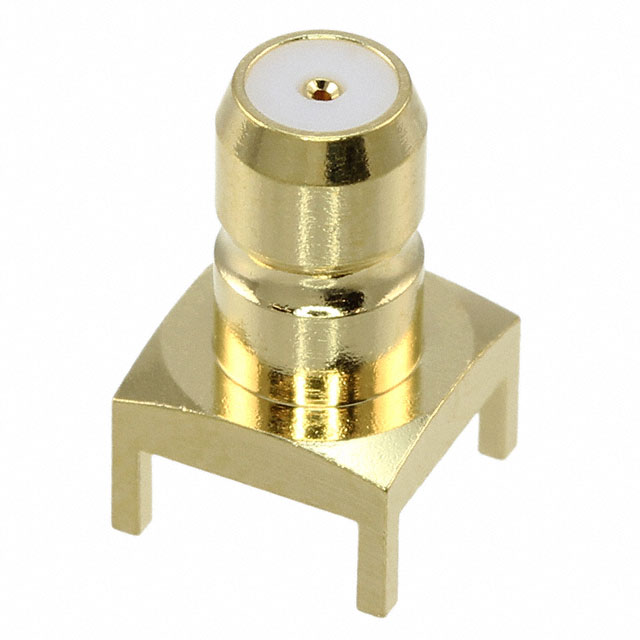

MSS-R-PC(40)

Hirose Electric Co LtdIn Stock: 787MSS-R-PC(40) Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the MSS-R-PC-3(40) is determined by strict parametric matching across the following critical criteria:

Electrical Parameters:

• Impedance: 50 Ohms (mandatory match)
• Frequency rating: 1 GHz maximum (mandatory match)
• Connector type: Receptacle, Female Socket (mandatory match)

Mechanical Parameters:

• Series: MSS (mandatory match)
• Mounting type: Through Hole (mandatory match)
• Contact termination: Solder (mandatory match)
• Mating cycles: 3000 (mandatory match)

Environmental & Compliance Parameters:

• Operating temperature range: -55°C ~ 85°C (mandatory match)
• RoHS compliance status (must meet or exceed original specification)

The MSS-R-PC(40) qualifies as a parametric equivalent because it maintains identical electrical, mechanical, and environmental specifications while differing only in product status and compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The MSS-R-PC(40) is the direct parametric equivalent for MSS-R-PC-3(40) applications. Selection between these parts should be based on the following factors:

For New Designs or Restocking: Use MSS-R-PC(40). This part maintains Active product status, ensuring long-term availability and supply chain stability. It meets ROHS3 compliance, which exceeds the RoHS Compliant specification of the original part, providing enhanced environmental and regulatory alignment.

For Legacy System Maintenance: Either part is electrically and mechanically interchangeable. The MSS-R-PC(40) is preferred due to its Active status and superior compliance certification. Inventory availability should be verified with the supplier, as MSS-R-PC-3(40) is in Last Time Buy status.

Compliance Considerations: Both parts are RoHS compliant. The MSS-R-PC(40) carries ROHS3 Compliant and REACH Affected designations, indicating compliance with current EU environmental regulations. No functional or performance differences exist between the two parts.

Frequently Asked Questions (FAQ)

Q: Can MSS-R-PC(40) be used as a direct replacement for MSS-R-PC-3(40)?

A: Yes. Both parts are identical in all critical electrical and mechanical parameters: 50-ohm impedance, 1 GHz frequency rating, through-hole solder termination, and -55°C to 85°C operating range. They are functionally interchangeable in all applications where MSS-R-PC-3(40) is specified.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and compliance certifications. MSS-R-PC-3(40) is Last Time Buy (discontinued), while MSS-R-PC(40) is Active. MSS-R-PC(40) carries ROHS3 Compliant and REACH Affected certifications, compared to RoHS Compliant for the original part. No electrical or mechanical differences exist.

Q: Why should I choose MSS-R-PC(40) over MSS-R-PC-3(40)?

A: MSS-R-PC(40) is the recommended choice for new procurement because it is in Active production status, ensuring reliable long-term supply. It also meets ROHS3 compliance, which is the current environmental standard. MSS-R-PC-3(40) is in Last Time Buy status, meaning production is ending and future availability is limited.

Q: Are there any performance differences between these connectors?

A: No. Both parts have identical performance specifications: 50-ohm impedance, 1 GHz maximum frequency, 3000 mating cycles, and -55°C to 85°C operating temperature range. They use the same materials (beryllium copper contacts, brass body, PTFE dielectric) and termination method (solder).

Q: Can I mix these parts in the same assembly?

A: Yes. Since both parts are electrically and mechanically identical, they can be used interchangeably within the same assembly or system without any functional impact.

Q: What packaging is available for these parts?

A: Both parts are supplied in Bulk packaging. Verify specific packaging requirements and minimum order quantities with your supplier.
